Front Bezel - Compaq AP400 Maintenance And Service Manual

Front Bezel

The front bezel is mounted to the chassis with release levers that are integrated into the bezel.
To remove the front bezel:
1. Perform the service preparations on page 3-2.
2. Remove the workstation cover.
3. From the inside of the unit, push up on the top release levers and push down on the
bottom release levers.

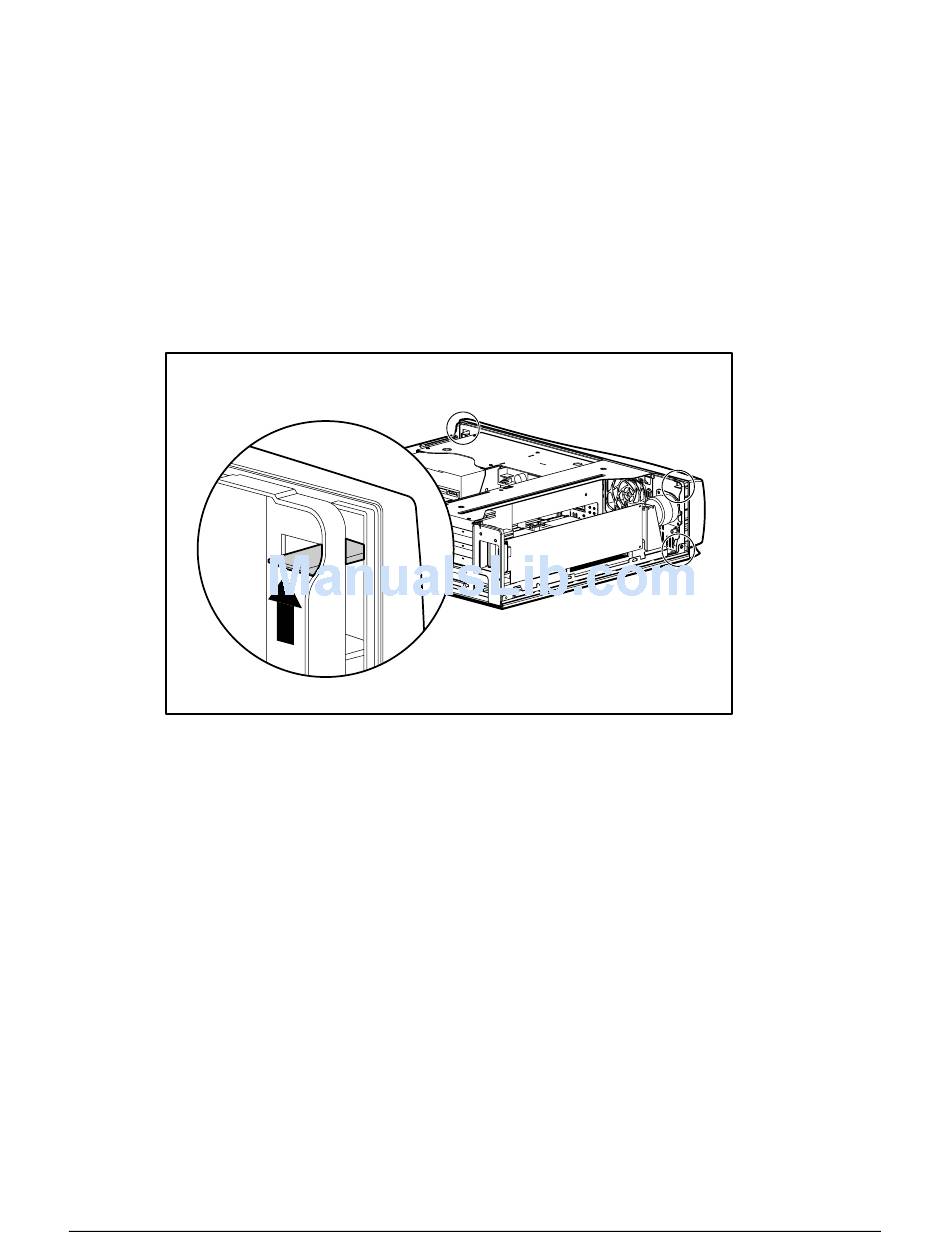

Figure 3-5. Locating the front bezel release levers
Compaq Professional Workstation AP400 Maintenance and Service Guide
3-5
