3-32 Removal and Replacement Procedures
Removing and Replacing a 10K RPM Hard Drive in Bay 5
To remove a 10K RPM hard drive from Bay 5:
1. Perform the service preparations described on page 3-2.
2. Remove the following components:
workstation cover
front bezel
Disconnect the power cable leading from the hard drive to the power supply 1 and the
3.
signal 2 and power cable 3 from the rear of the hard drive.

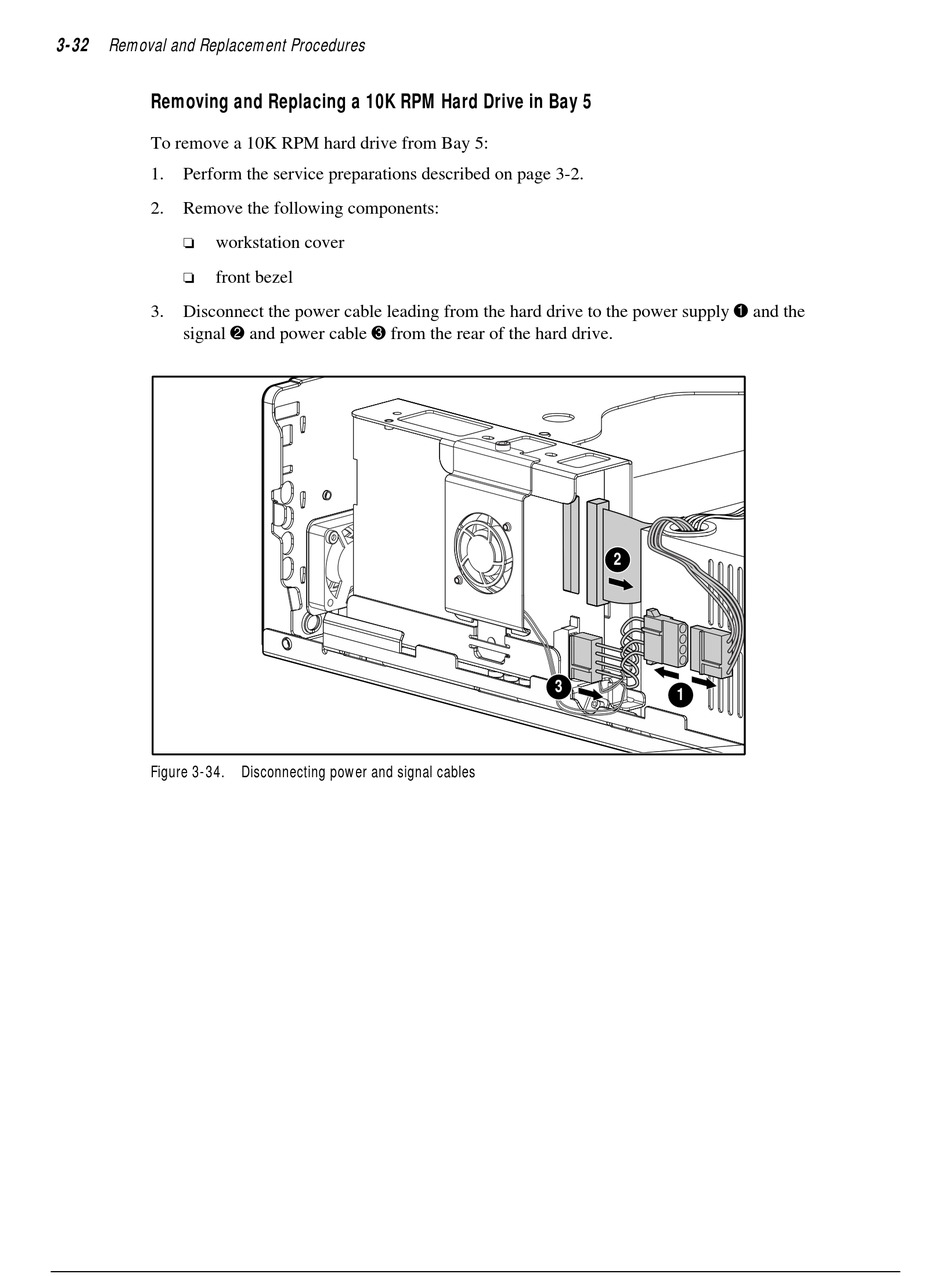

Figure 3-34. Disconnecting power and signal cables
2
3
1
