5.
Move the jumper from pins 6 and 7

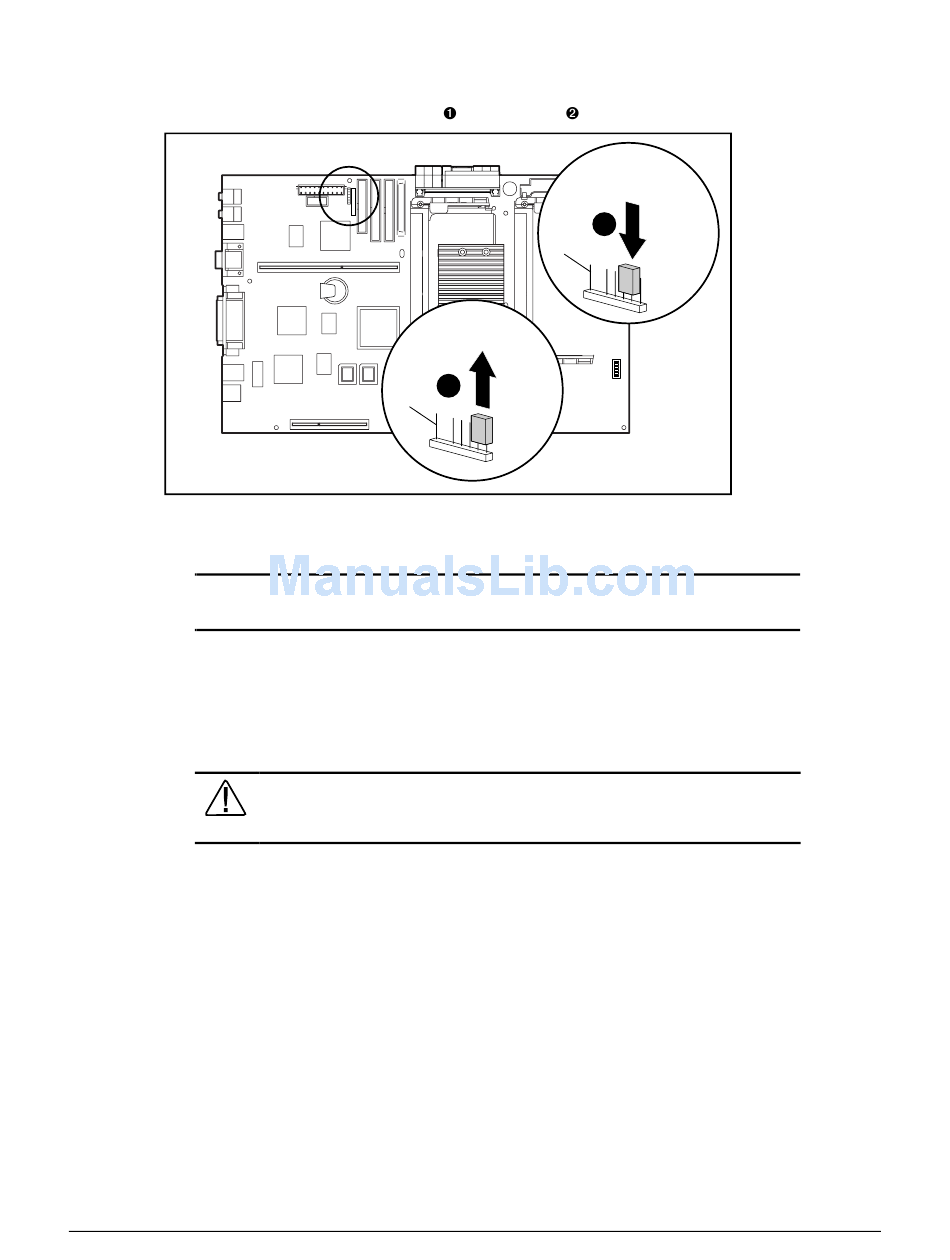

Figure 3-47. Changing the jumper from pins 6-7 to pins 5-6
6.
Replace the I/O bracket assembly and the workstation cover.
IMPORTANT: Before replacing the I/O bracket assembly, read "Important Guidelines for I/O
Bracket Assembly Replacement" earlier in this chapter.
7.
Place the sticker included with your battery kit on the back of the workstation above the
power connector.
8.
Reassemble workstation.
9.
Plug in the workstation and reconnect any external devices.
WARNING: This equipment is designed for connection to a grounded (earthed)
outlet. The grounding type plug is an important safety feature. To avoid the risk of
electrical shock or damage to the equipment, do not disable this feature.
10. Turn on the workstation.
to pins 5 and 6 .
1
1
1
Compaq Professional Workstation AP400 Maintenance and Service Guide
2
3-49
