3-30 Removal and Replacement Procedures
6. Secure the hard drive with the four screws provided on the bracket.

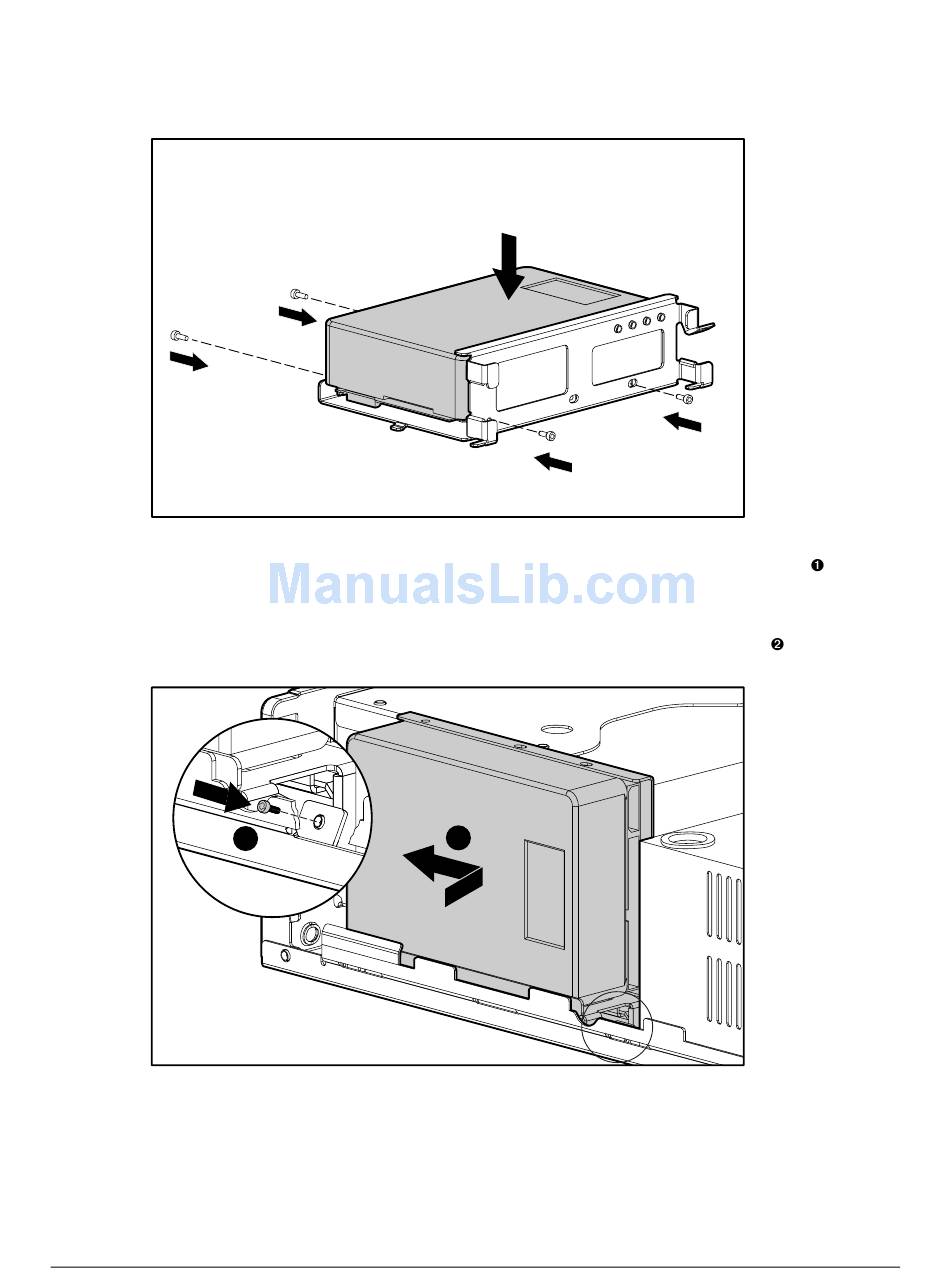

Figure 3-31. Installing a hard drive in the hard drive mounting bracket
7. Install the hard drive/bracket assembly by sliding it toward the front of the workstation .
Make sure to engage the tab on the back of the bracket in the slot provided on the side of
the drive cage.
8. Secure the hard drive/bracket assembly to the drive cage with the screw provided .
Figure 3-32. Installing a hard drive/bracket assembly
2 1
