DIMMs

To remove a DIMM:
1. Perform the service preparations described on page 3-2.
2. Remove the following components:
workstation cover
I/O bracket assembly (expansion board bracket)
NOTE: If an AGP graphics controller is installed, it must be removed.
3. Press outward on both latches of the DIMM at the same time . This releases the module
and pushes it partially out of the socket.
4. Lift the module from the socket .
IMPORTANT: Before replacing the I/O bracket assembly, read "Important Guidelines for I/O
Bracket Assembly Replacement" earlier in this chapter.
NOTE: The system recognizes memory upgrades and automatically reconfigures the
workstation.
1

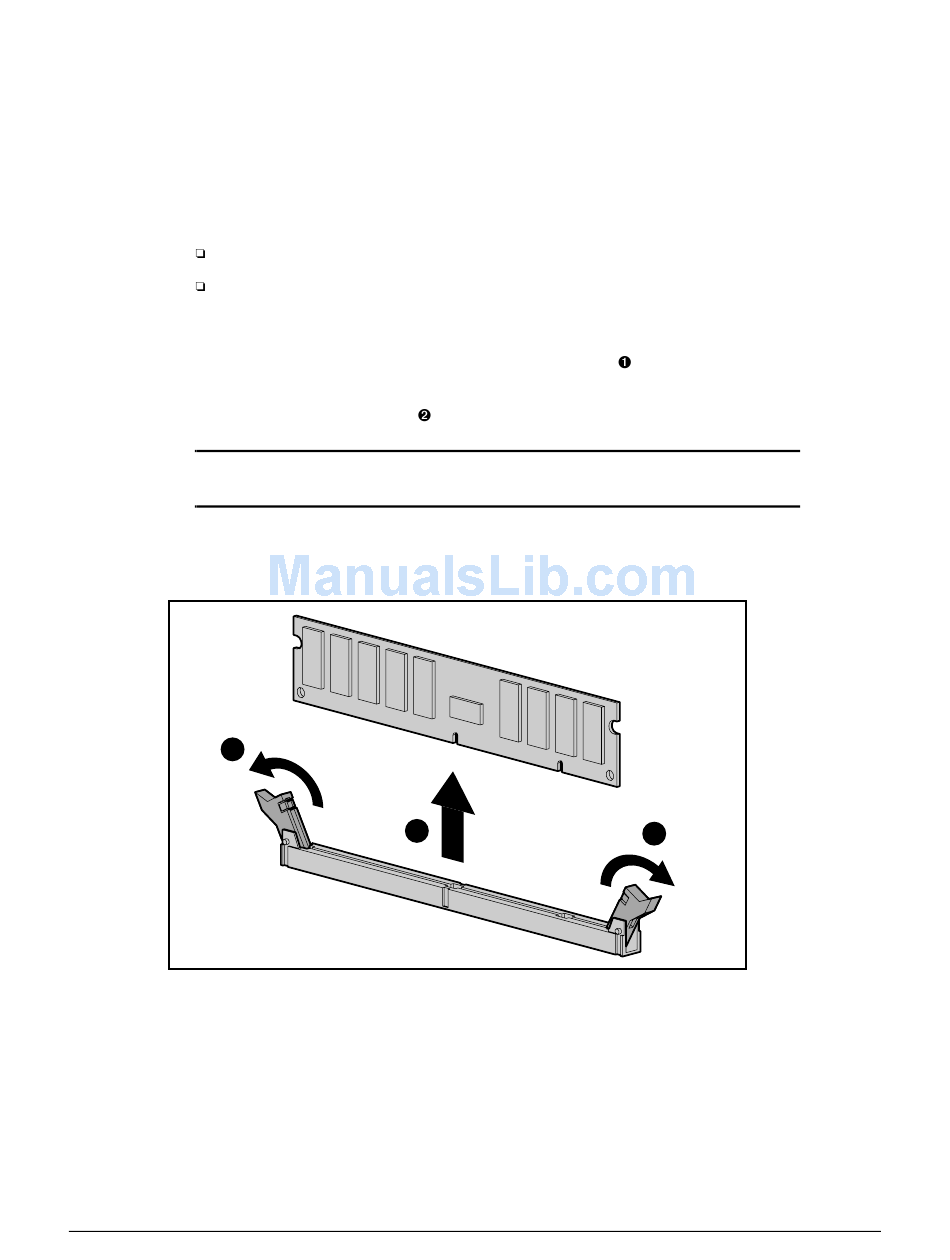

Figure 3-41. Removing a DIMM
To replace a DIMM and reassemble the workstation, reverse the above steps.
2
