Reference Component
1
Power Switch and LED Header
2 Power Connector
3 External Battery Jumper
4 Diskette Drive Connector
5 Secondary IDE Connector
6 Primary IDE Connector
7 SCSI Connector
8 Primary Processor Power Module
9
Secondary Processor Power Module Slot
-
Secondary Processor Slot
q
Primary Processor
w
SW1 Switch
e
DIMM Sockets 1 - 4
r
AGP Graphics Controller Connector
t
3-Pin Wake-On-LAN header (J28)
y
Expansion Board Connector

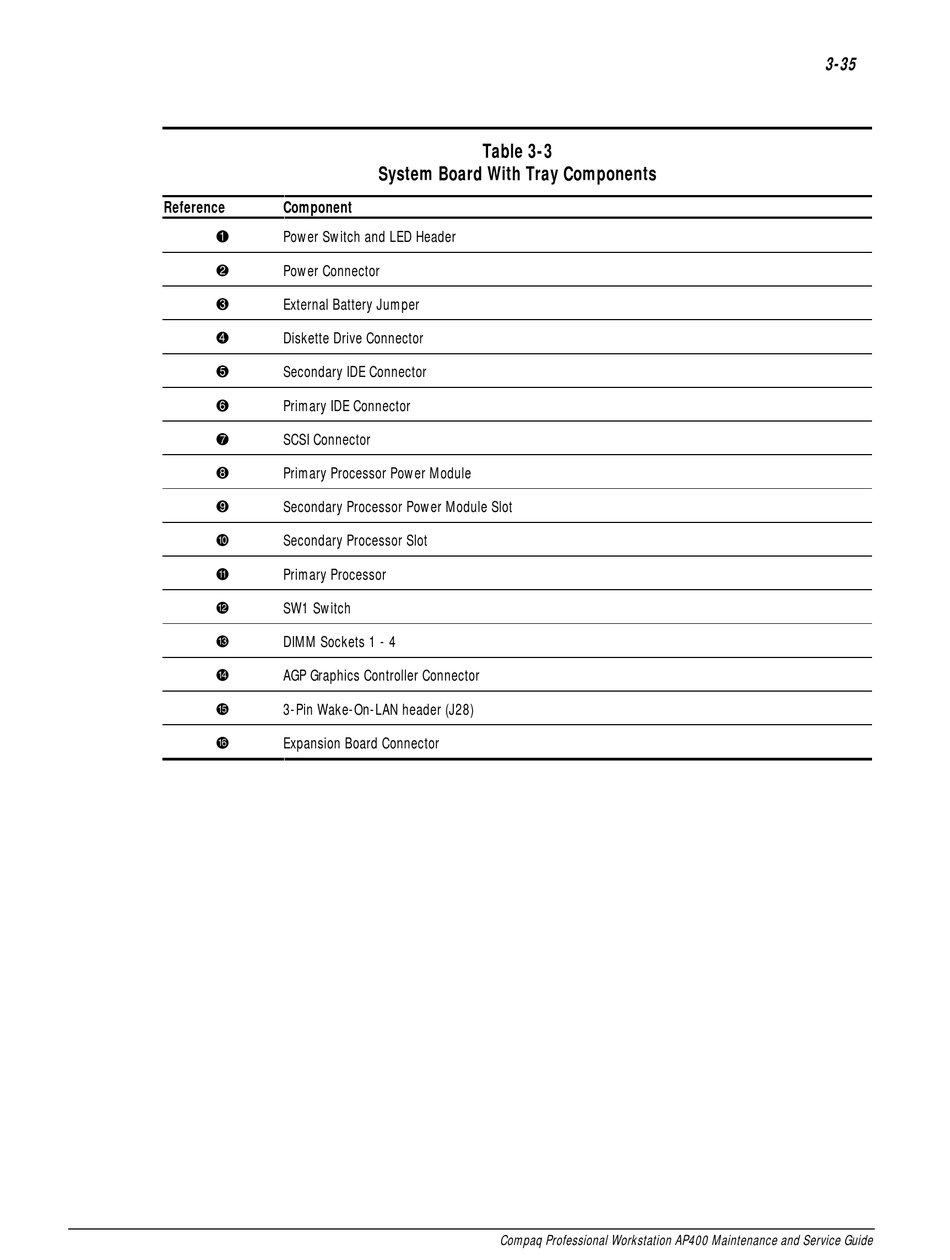

Table 3-3
System Board With Tray Components
Compaq Professional Workstation AP400 Maintenance and Service Guide
3-35
