Chapter 1
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spare parts for the
Compaq Professional Workstation AP400.
Mechanical Parts
2
5

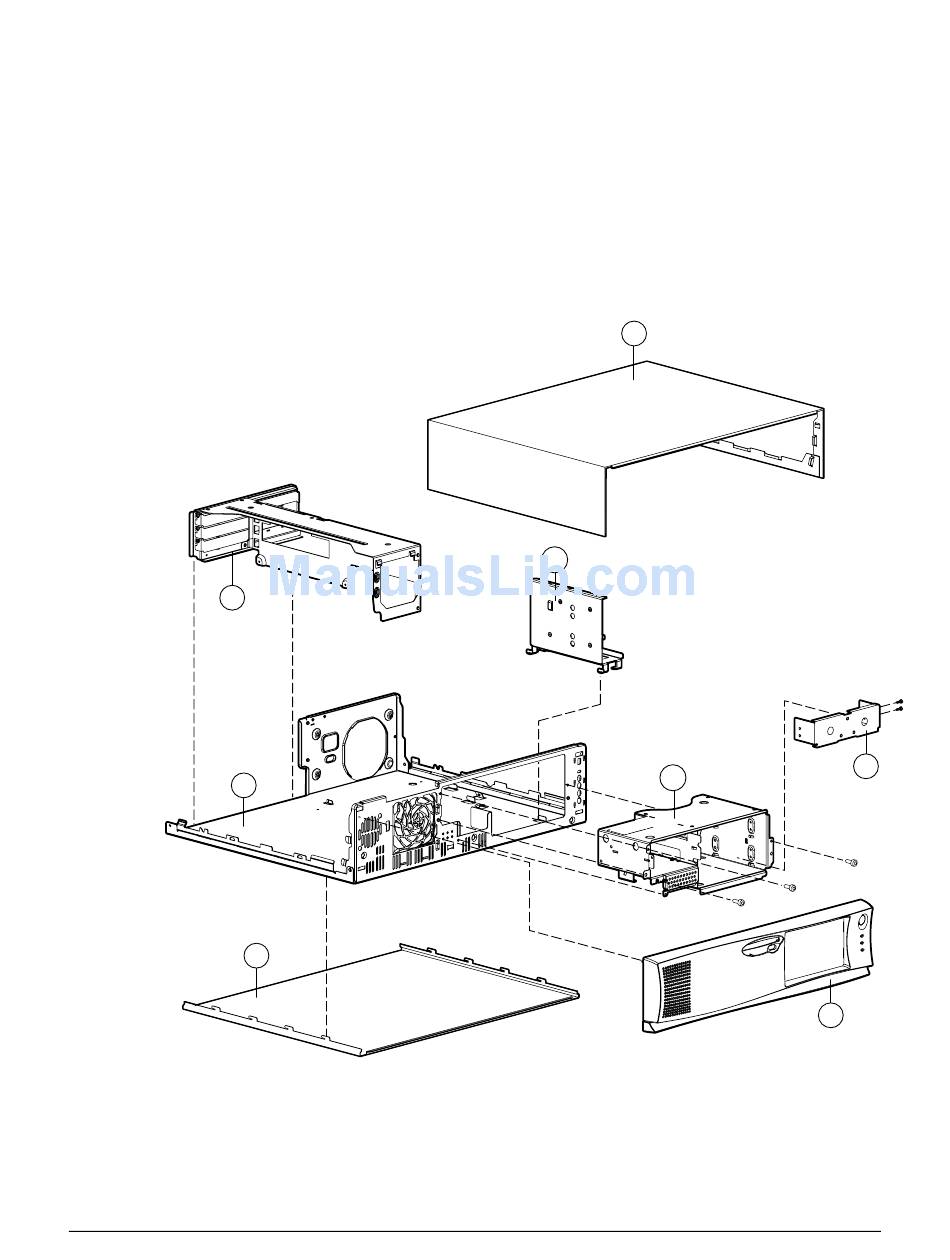

Figure 1-1. Exploded view of the Compaq Professional Workstation AP400 mechanical parts
7
1
3
6
Compaq Professional Workstation AP400 Maintenance and Service Guide
1-1
4
8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Compaq Deskpro AP400
Summary of Contents for Compaq Deskpro AP400
-
Page 1: Chapter 1 Illustrated Parts Catalog
Chapter 1 Illustrated Parts Catalog This chapter provides an illustrated parts breakdown and a reference for spare parts for the Compaq Professional Workstation AP400. Mechanical Parts Figure 1-1. Exploded view of the Compaq Professional Workstation AP400 mechanical parts Compaq Professional Workstation AP400 Maintenance and Service Guide... -
Page 2: System Components
Illustrated Parts Catalog System Components Figure 1-2. Exploded view of the Compaq Professional Workstation AP400 system components... -
Page 3: Spares Parts List
Spares Parts List Parts or components marked with an asterisk are not illustrated. Reference MECHANICAL Workstation Cover I/O Bracket Hard Drive Mounting Bracket (Bay 5) EMI Shield Base Pan Drive Cage Base Pan Cover with Feet Front Bezel SYSTEM System Fan Speaker Power Supply System Board with Tray (for 350/400/450 MHz processors) -
Page 4: Mass Storage
Illustrated Parts Catalog Spares Parts List - Compaq Professional Workstation AP400 Reference SYSTEM Expansion Board Slot Cover Power Switch and LEDs with Cable MEMORY 32-MB Memory Module (Registered 100-MHz SDRAM) 64-MB Memory Module (Registered 100-MHz SDRAM) 128-MB Memory Module (Registered 100-MHz SDRAM) 256-MB Memory Module (Registered 100-MHz SDRAM) MASS STORAGE 4.3-GB Wide-Ultra SCSI Hard Drive (7200 RPM) -
Page 5: Cable Kits
Spares Parts List - Compaq Professional Workstation AP400 Reference CABLE KITS Miscellaneous Signal Cable Kit (CD-ROM, HD, Diskette) CD-ROM Audio Cable SCSI Cable, Wide SCSI Cable, Wide Ultra2, 4-device SCSI Adapter, 50- to 68-Pin (internal) Cable, 4-Port Splitter (MVP Pro-128) KEYBOARD/MOUSE Keyboard 3-Button Mouse... - Page 6 Illustrated Parts Catalog Spares Parts List - Compaq Professional Workstation AP400 Reference GRAPHICS Fire GL 4000 Graphics Controller GLoria Synergy+ Graphics Controller (AGP) 4-MB Memory Upgrade (GLoria Synergy+) GLoria Synergy Graphics Controller (PCI) GLoria-XL 3D Graphics Controller 16-MB Memory Upgrade (GLoria-XL) Matrox Millennium II Graphics Controller 12-MB WRAM Memory Upgrade (Millennium II) 4-MB WRAM Memory Upgrade (Millennium II)
- Page 7 Spares Parts List - Compaq Professional Workstation AP400 Reference COMMUNICATIONS Compaq Fast Ethernet NIC NC3120 Compaq Ethernet NIC NC1120 Compaq Fast Ethernet NIC NC3161 SOFTWARE Magellan Driver CD Spaceball Driver CD Microsoft Windows NT Workstation 4.0 CD Compaq SmartStart for Workstations CD System ROMPaq Compaq Setup and Compaq Diagnostics for Workstations Diskette MISCELLANEOUS...
