4. Remove the retaining screw 1, then slide the bracket with hard drive from Bay 5 as shown
2.
2
1

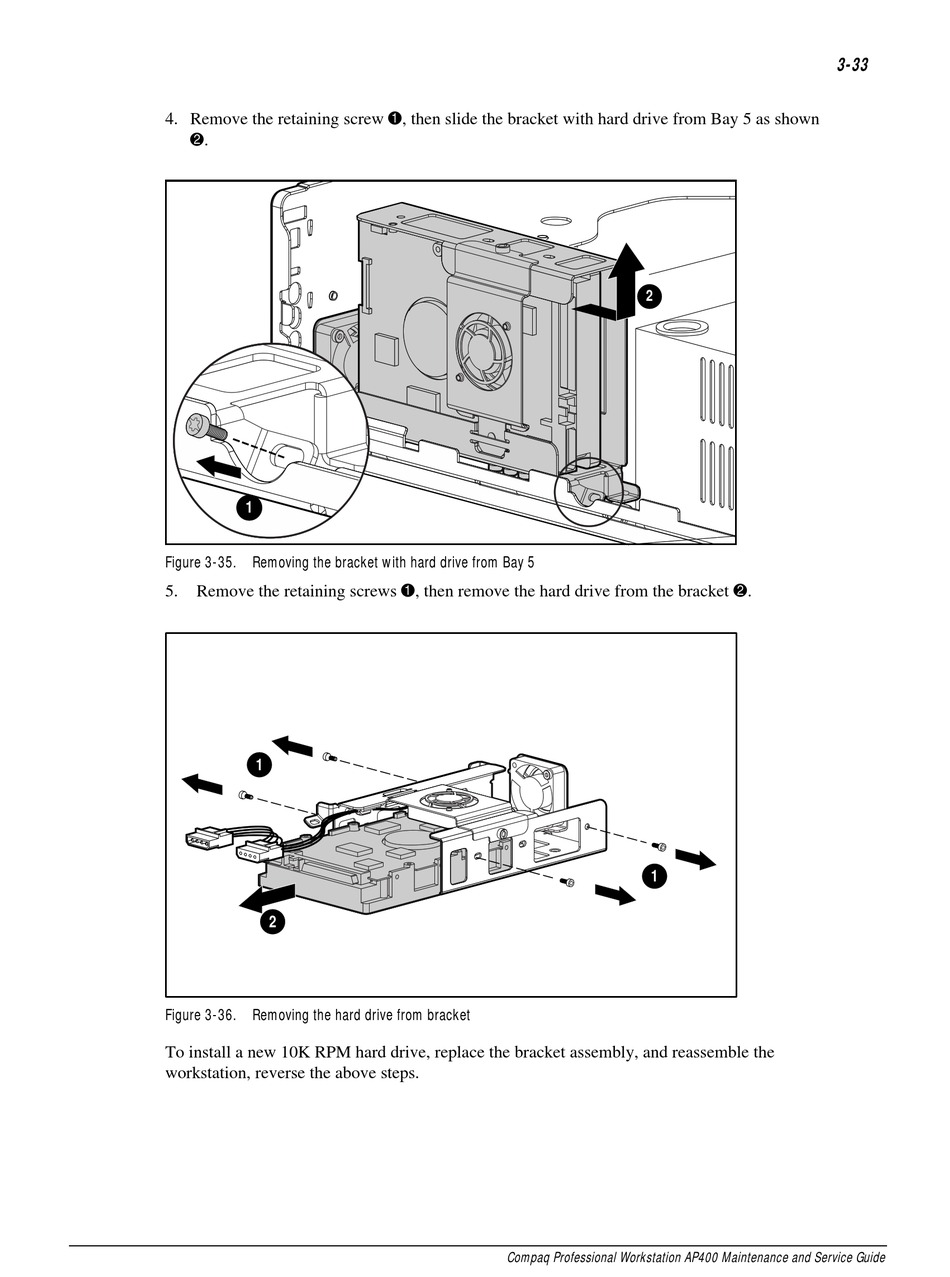

Figure 3-35. Removing the bracket with hard drive from Bay 5
Remove the retaining screws 1, then remove the hard drive from the bracket 2.
5.
1
1
2
Figure 3-36. Removing the hard drive from bracket
To install a new 10K RPM hard drive, replace the bracket assembly, and reassemble the
workstation, reverse the above steps.
