3-24 Removal and Replacement Procedures
5. Install one metric guide screw into the front hole on the left side of the bracket. The guide
screw is used to align the bracket in the drive bay.
6. Insert the drive assembly into the drive bay. Make sure the guide screw aligns with the
slot in the drive bay.
7. Secure the 3.5-inch device in the drive cage with two metric retaining screws on the right
side of the device.

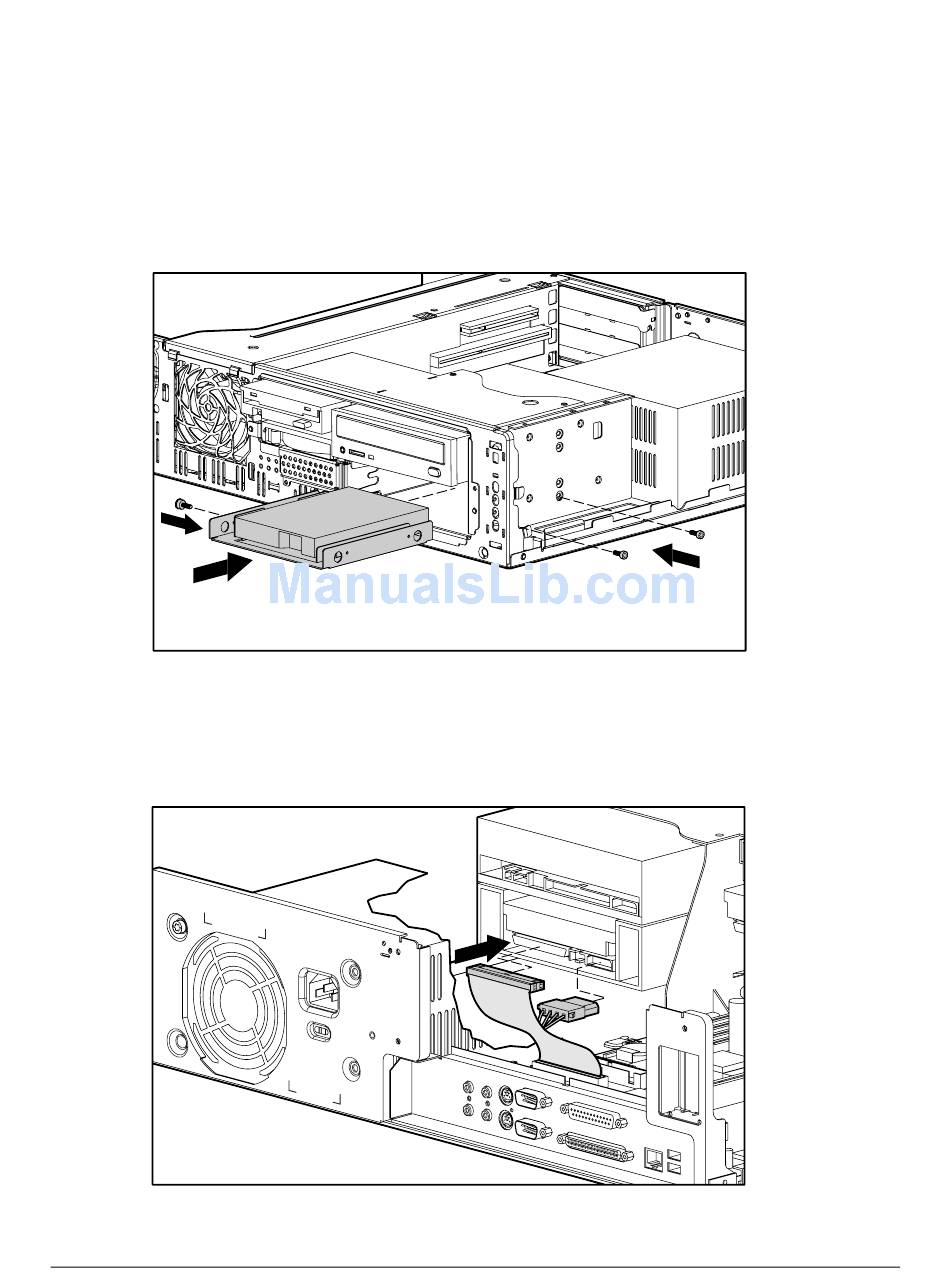

Figure 3-25. Installing the 3.5-Inch hard drive and securing it with retaining screws
NOTE: If there is a hard drive in bay 5, you must remove it to access the mounting holes for the
retaining screws securing the drive assembly. For information on removing a hard drive from
bay 5, see "Bay 5" later in this chapter.
8. Connect the cables to the rear of the drive.
Figure 3-26. Connecting the signal and power cables
