Fire GL 4000 Graphics Controller

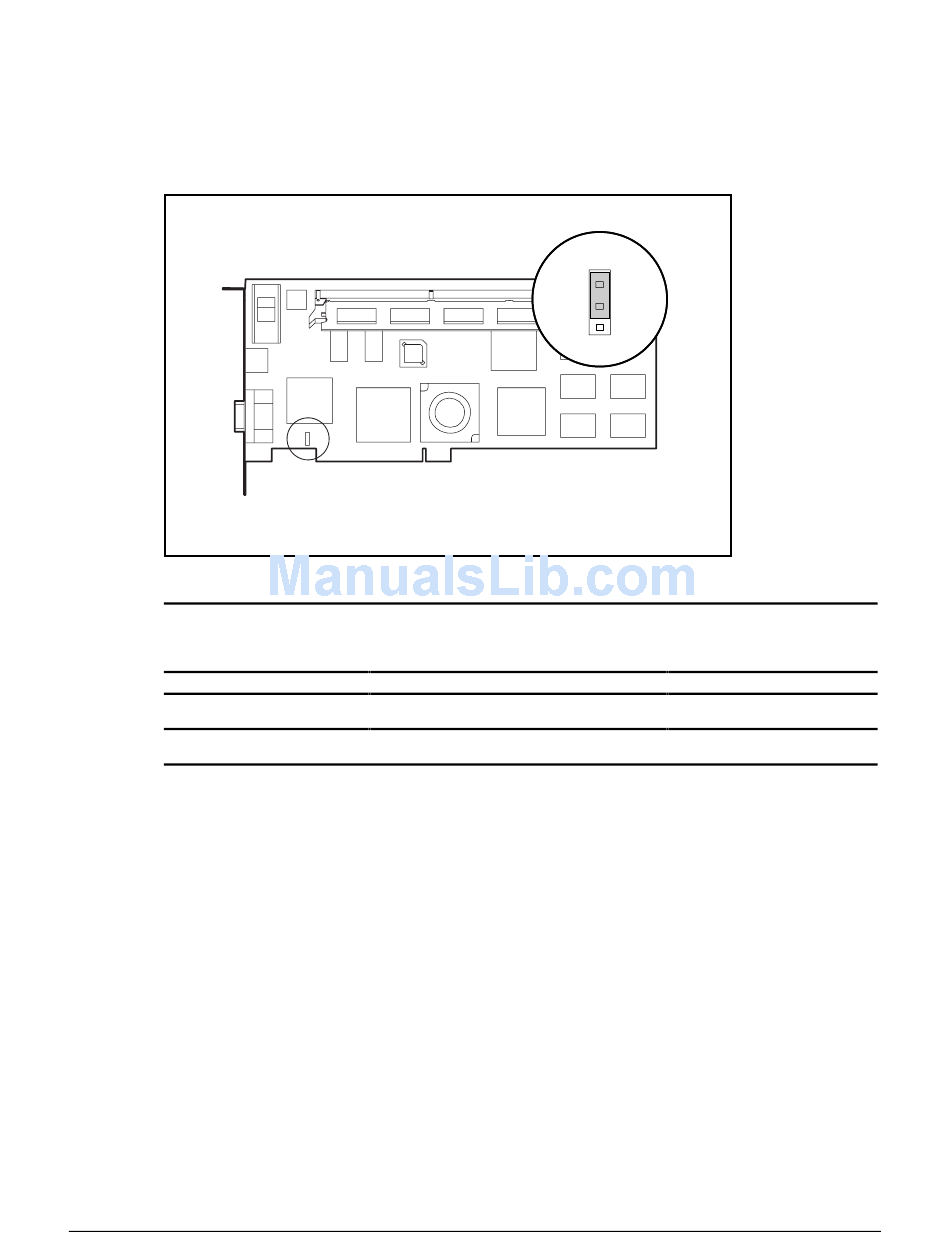

The jumper settings for the Fire GL 4000 Graphics Controller are shown in the Figure below.
Figure 6-11.
Jumper
J7
*Required only if using a separate VGA/EGA controller.
Jumper positions for the Fire GL 4000 Graphics Controller
Fire GL 4000 Graphics Controller Jumper Settings
Pins 1-2
On-board VGA enabled (Default)
1
J7
Table 6-3
Compaq Professional Workstation AP400 Maintenance and Service Guide
6-11
Pins 2-3
On-board VGA disabled*
