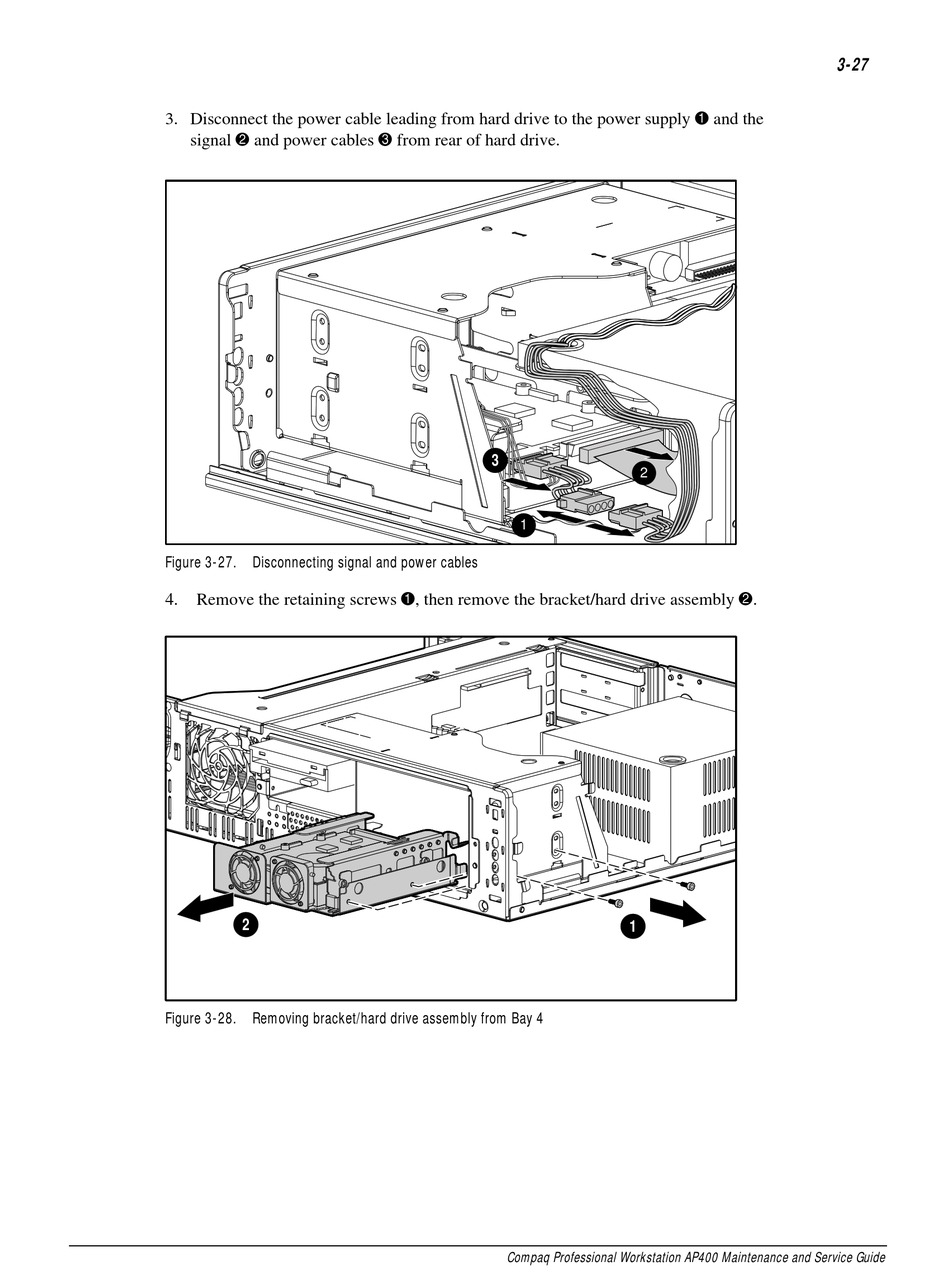

3-27
3. Disconnect the power cable leading from hard drive to the power supply 1 and the
signal 2 and power cables 3 from rear of hard drive.
3
2
1
Figure 3-27. Disconnecting signal and power cables
Remove the retaining screws 1, then remove the bracket/hard drive assembly 2.
4.
2
1
Figure 3-28. Removing bracket/hard drive assembly from Bay 4
Compaq Professional Workstation AP400 Maintenance and Service Guide
