3-8 Removal and Replacement Procedures

EMI Shield

If your system has an EMI shield, remove it by completing the following steps:
1. Perform the service preparations on page 3-2.
2. Remove the following components:
workstation cover
front bezel
hard drive from bay 5 (if installed)
3. Remove the two screws that connect the EMI shield to the drive cage.
IMPORTANT: Do not remove the guide screws. They are for alignment only.
4. Slide the EMI shield out of the drive slot.

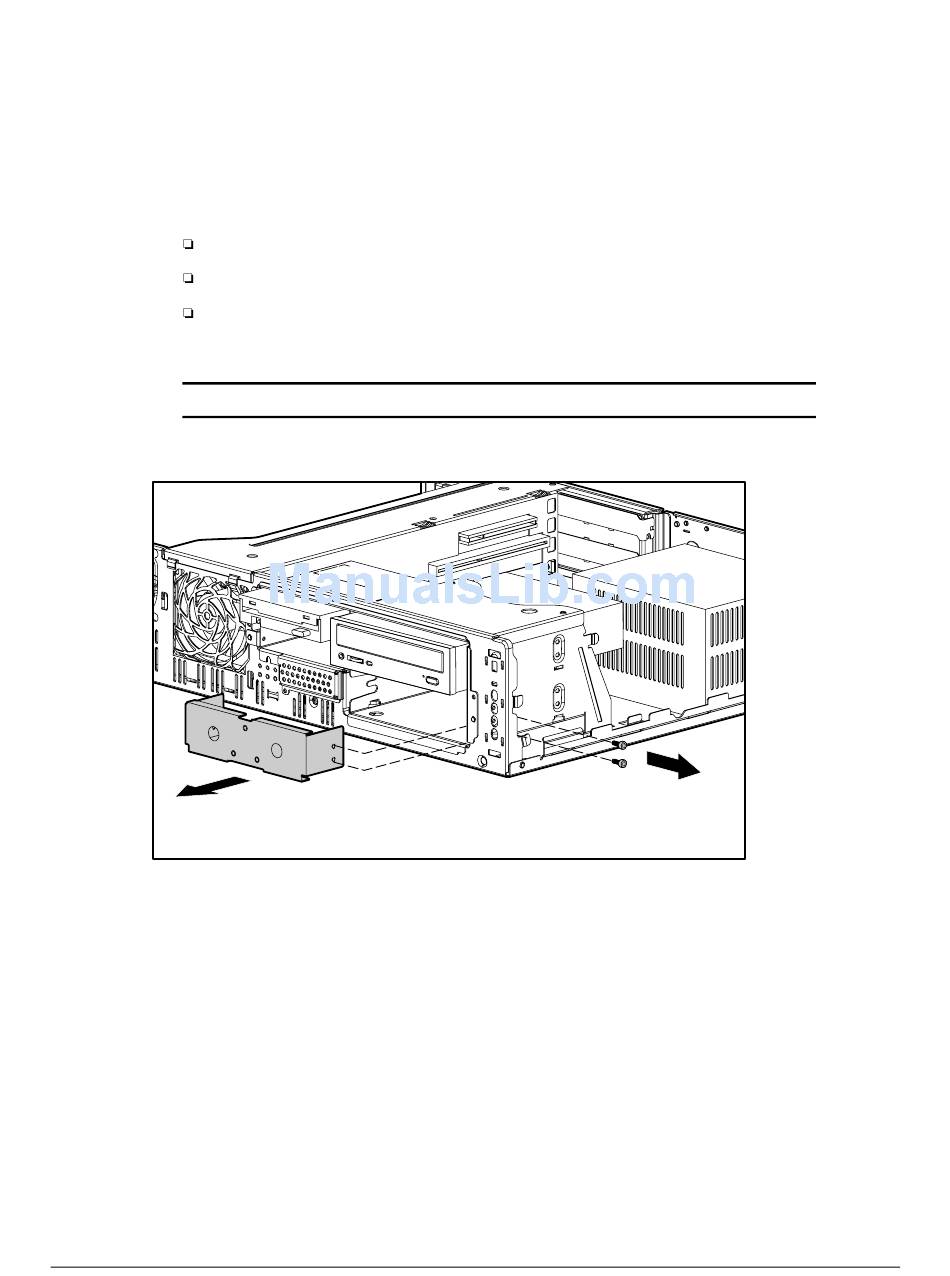

Figure 3-8. Removing the EMI shield
