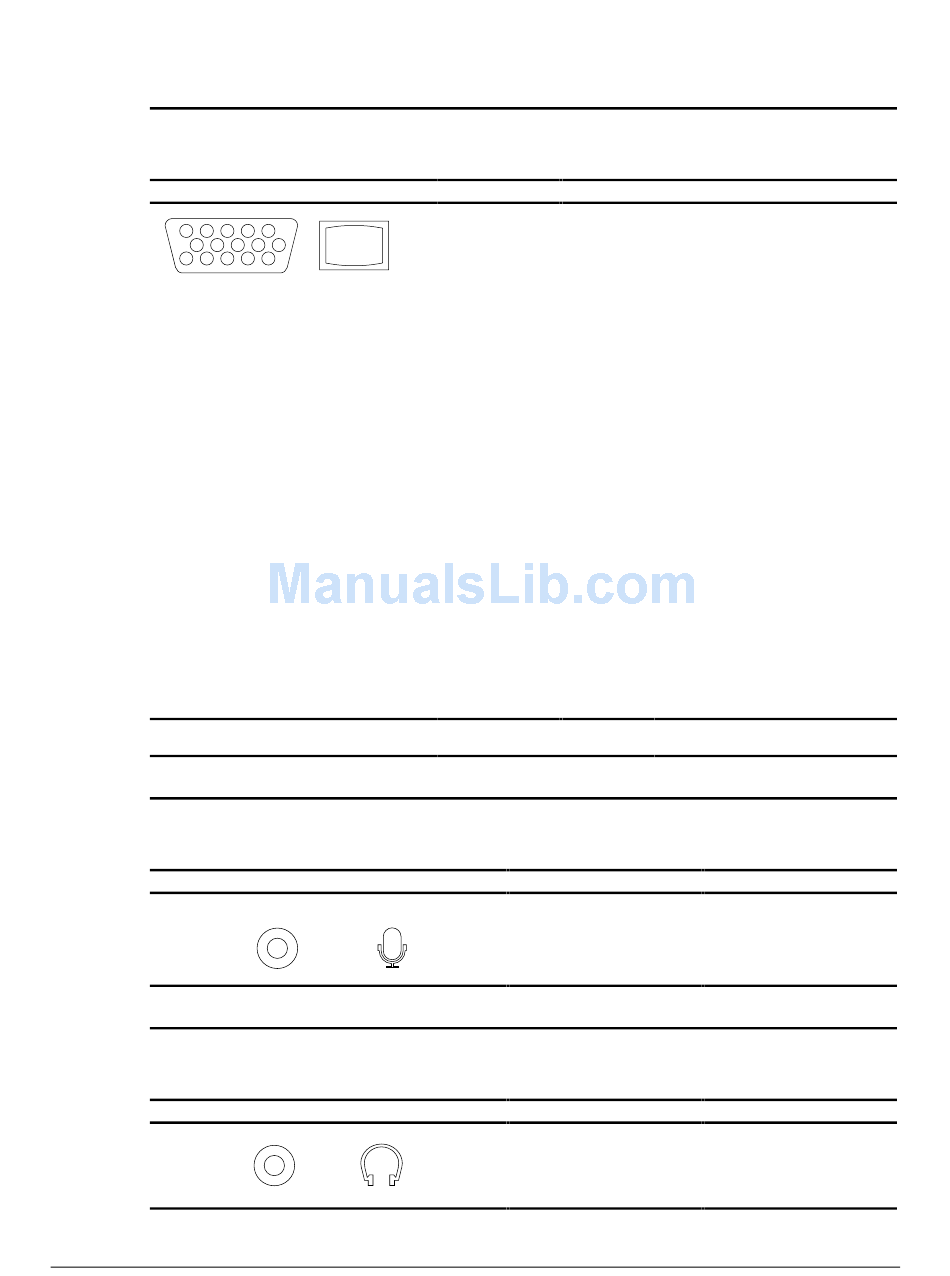

External Connectors
Connector and Icon
5
4
3
10
9
15 14 13 12 11
* For DDC support (I 2 C monitors)
2
1
8
7
6
Connector and Icon (Blue)
Connector and Icon
Table 8-12
Monitor
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Table 8-13
Microphone Connector
Pin
Tip
Common
Table 8-14
Headphone Connector
Pin
Tip
Ring
Common
Signal
Red Analog
Green Analog
Blue Analog
Monitor ID Bit 2
Ground
Ground Analog
Ground Analog
Ground Analog
Not Connected
Ground
Monitor ID Bit 0
Bi-directional Data (SDA)*
Horizontal Sync
Vertical Sync
Data Clock (SCL)*
Signal
Signal
Ground
Signal
Left Audio
Right Audio
Shield
