6-6
Jumper and Switch Information
6.4-GB Ultra ATA Hard Drives
Drive Size:
Configuration
Single (Standard Installation)
Dual Master
Dual Slave
Cable Select (Shipping Configuration)
Single (Neutral Position)
Jumper NOT Installed
Key
Jumper Installed

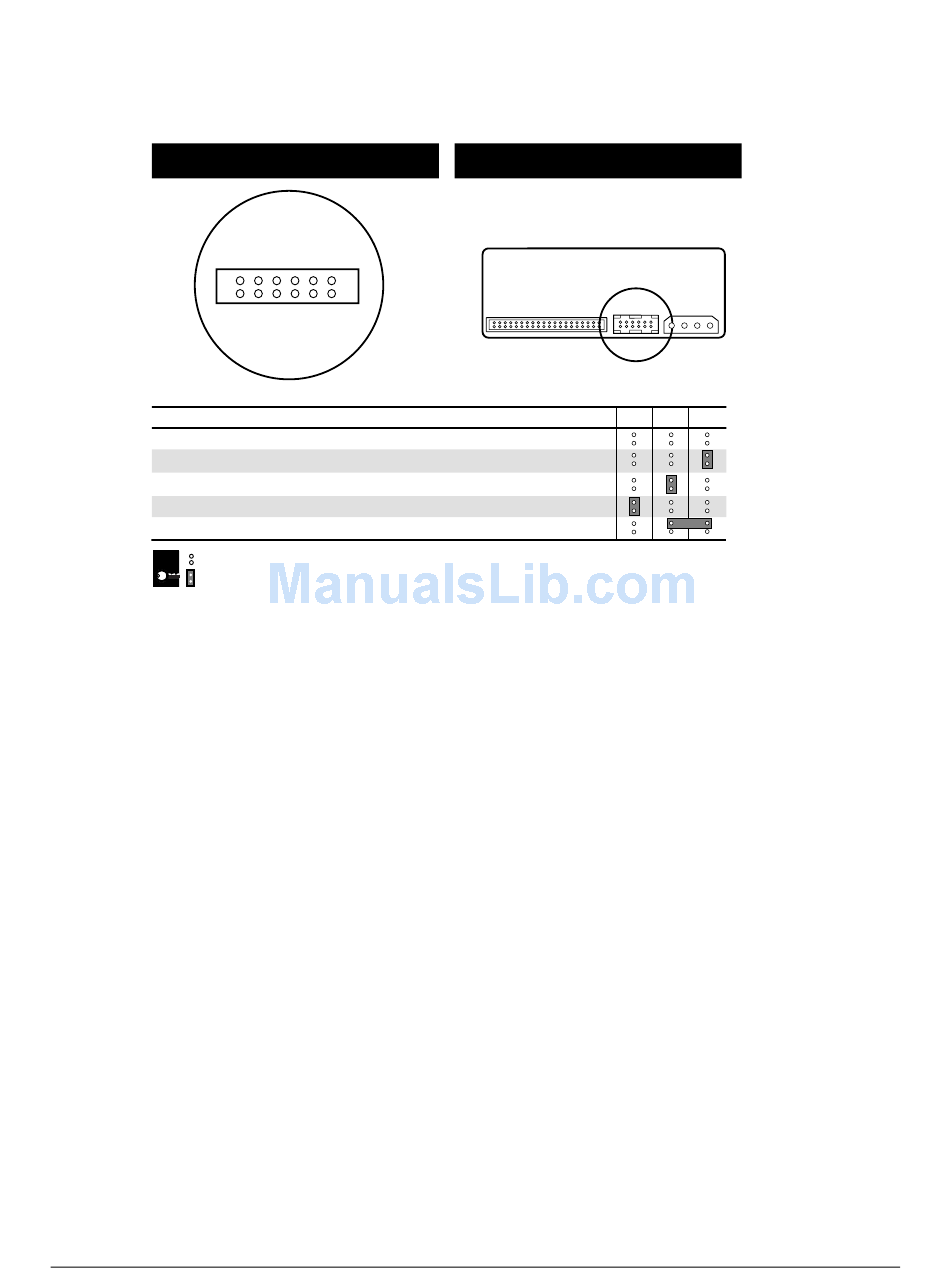

Figure 6-6. Jumper positions for the 6.4-GB hard drive (ST36531A)
6.4 GB
Model:
5
3
1
6
4
2
IDE Settings
ST36531A
1-2
3-4
5-6
