Alarm Indicator

TARTED
Settings are displayed in prompts at the bottom of the menus. For example, if you
select:
[2] Configuration Management
[1] Manage Card
[3] DS3 UNI (may be different choice number, depending upon your shelf
configuration)
[1] Card Information
[5] Set ATM Payload Scramble
The following prompt appears at the bottom of the DS3 UNI Configuration menu:
Enter ATM Payload Scramble (1=No,2=Yes):
When you type a selection number and press [Enter], payload scrambling is
disabled or enabled, and the prompt is cleared.
If the PathBuilder S600 detects an alarm condition, an alarm indicator (the
highlighted word "Alarm") appears to the left of the access status on every menu
and display, as shown in Figure 31.

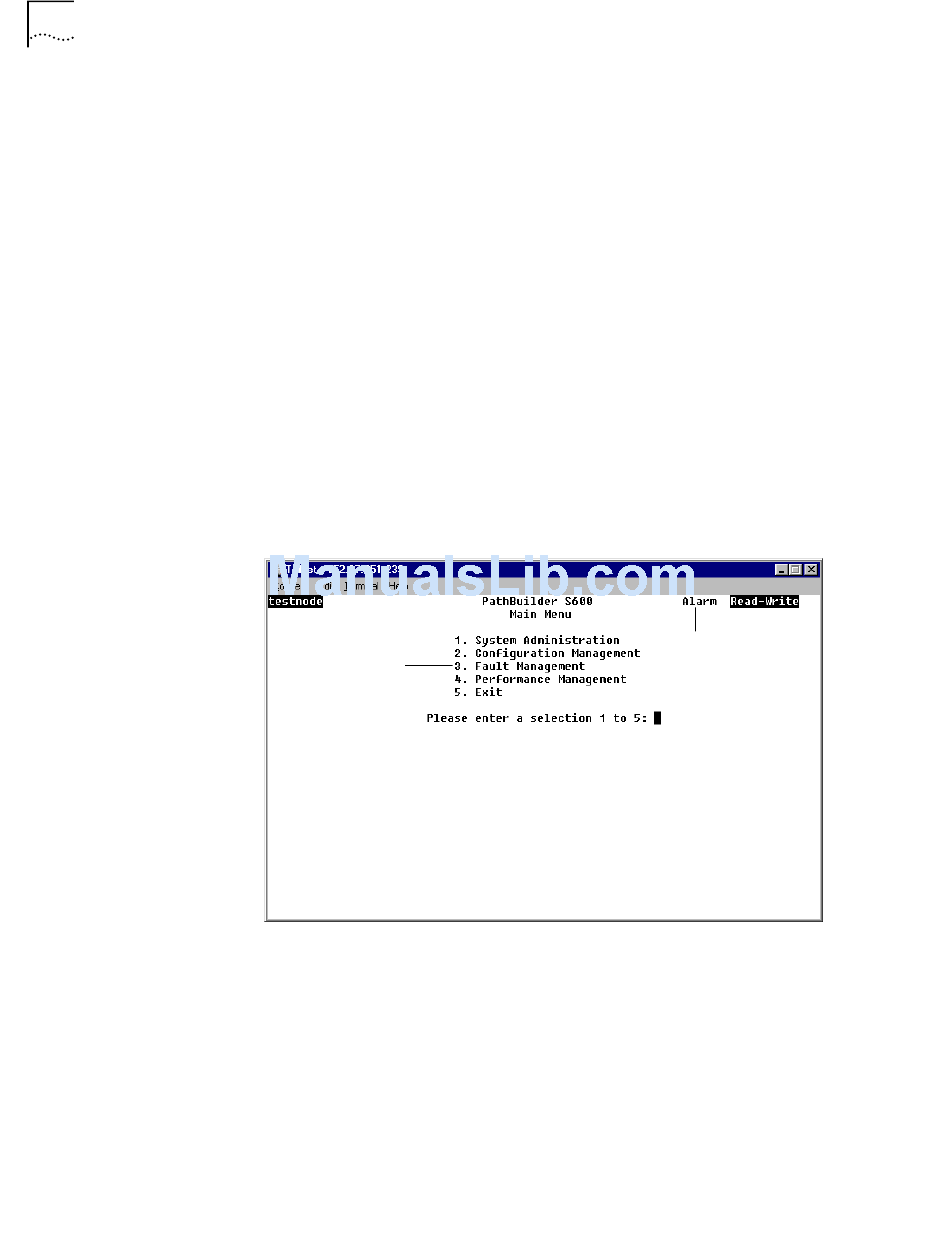

Figure 31 Alarm Indicator
Select to display
current alarms
After you acknowledge the alarm, the alarm indicator is no longer highlighted, but
the word "Alarm" remains in the upper right corner of the screen to indicate that
an alarm has been acknowledged.
When the alarm is acknowledged and the condition that caused the alarm is
cleared, the indicator disappears entirely. If a menu indicates that an alarm has
been acknowledged and a new alarm occurs, the Alarm indicator is highlighted
again.
See "Managing System Alarms" in Chapter 6 for instructions on acknowledging
alarms.
Indicates that an
alarm has been
detected
