Viewing Card Statistics

S600 D
P
IAGNOSTICS AND
ERFORMANCE
To view card statistics, follow these steps:
1 From the Main menu, select [4] Performance Management to open the
Performance Management menu, shown in Figure 157.

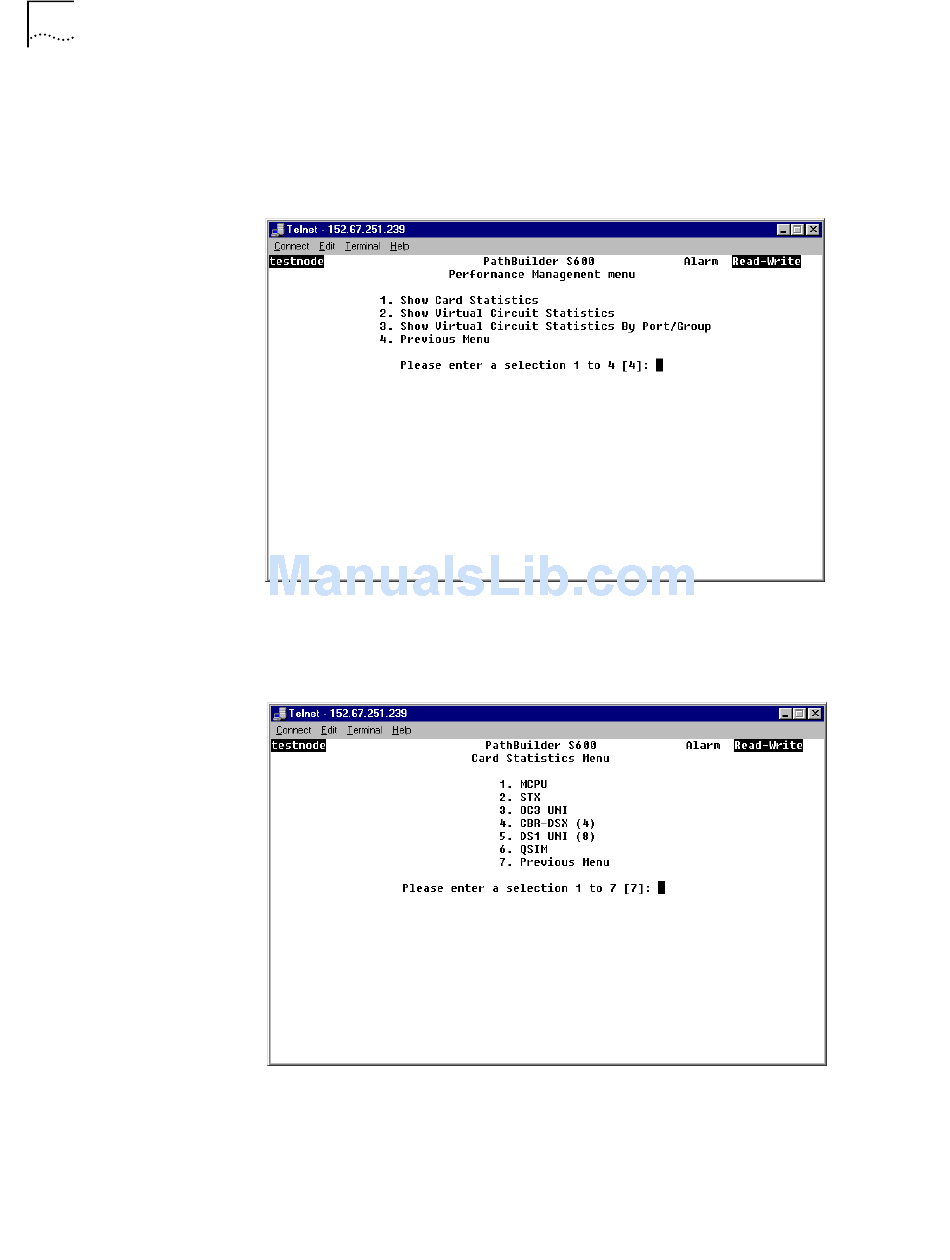

Figure 157 Performance Management Menu
2 Select [1] Show Card Statistics to open the Card statistics menu, shown in
Figure 158.
Figure 158 Card Statistics Menu
3 Enter the number corresponding to the card for which you want to view statistics
to open the Performance Management menu for that card. Figure 159 shows the
OS3/STM-1 UNI Performance Management menu.
