138 C 5: C P B S600 M , P , A
HAPTER ONFIGURING ATH UILDER ODULES ORTS AND PPLICATIONS

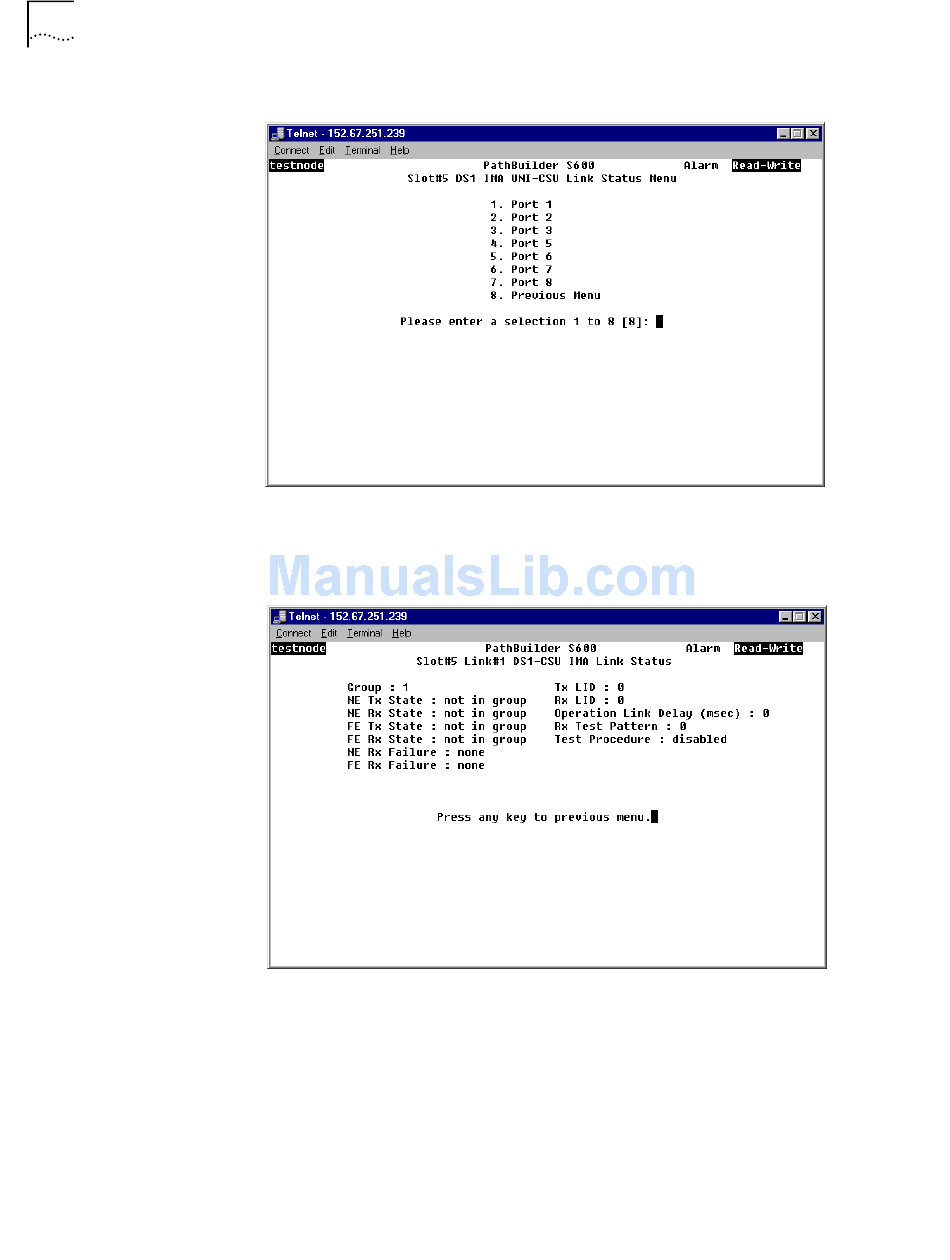

Figure 100 IMA Link Status Selection Menu
3 Enter the number corresponding to the port for which you want to view IMA link
status. The IMA Link Status screen for that port appears, as shown in Figure 101.
Figure 101 IMA Link Status Screen
The IMA Link Status screen lists the following information pertaining to the IMA
status of an individual link in an IMA group.
NE Tx State—Near-end transmit state in the interworking link state machine.
Table 29 lists the possible link states.
NE Rx State—Near-end transmit state in the interworking link state machine.
Table 29 lists the possible link states.
FE Tx State—Far-end transmit state in the interworking link state machine.
Table 29 lists the possible link states.
