Min Tx/Rx Oper. Ports—The minimum number of ports in the group that must
be operational in order for the group to come up and be operational: 1 to n,
where n is the number of ports in the group.
IMA ID—A user-selected number to identify the IMA group.
Test Link—The port number of the link that is to perform the test procedure.
Test Pattern—The pattern to be looped back in the test procedure: 0-254.
Test Procedure—Enables or disables the test procedure. When the test procedure
is enabled, the test pattern is sent out on the designated test link and then looped
back on the other links in the group.
Admin Status—The administrative status of the group: In Service or Out of
Service.
Number of VPI for VCC—The number of distinct VPIs that can be used for VCCs
on this card: 1-32. The remaining VPIs are available for VPCs.
9 Select [12] Previous Menu.
10 If desired, repeat steps 5-8 to set up another IMA group.

Viewing and Modifying IMA and UNI Groups

Once you have added a group, you use the List/Modify Group menu to view and
modify group configuration parameters.
To view and/or modify an existing group, follow these steps:
1 From the Group menu, shown earlier in Figure 93, select [1] List/Modify Group to
open the List/Modify Group Selection menu. Figure 97 shows the DS1 List/Modify
Group Selection menu. The E1 menu is the same. The List/Modify Group Selection
menu lists the existing groups, by group number.

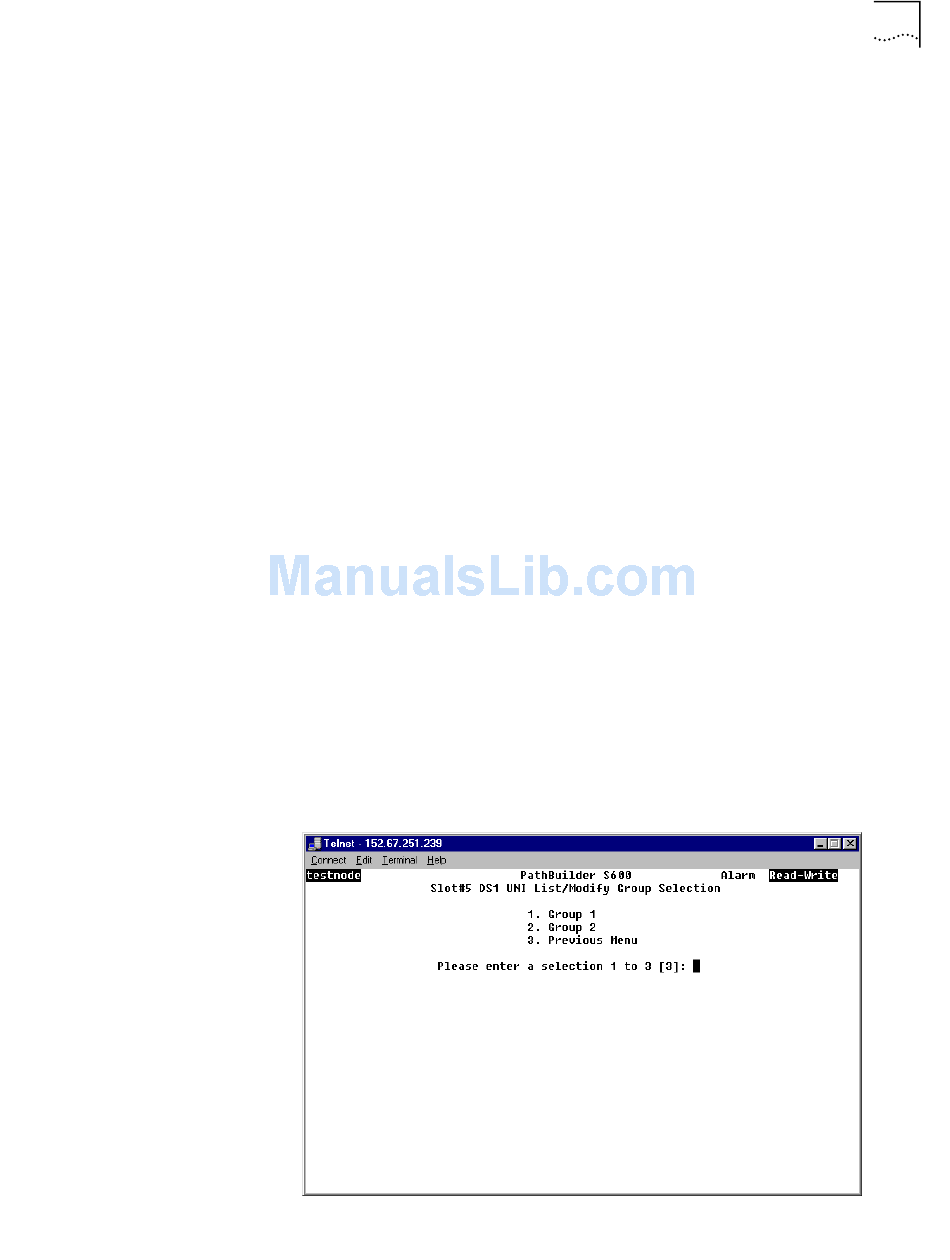

Figure 97 List/Modify Group Selection Menu
Configuring the DS1 (or E1) UNI with IMA Modules 135
