5 Enter [1] to configure a VCC or [2] to configure a VPC only. To operate a circuit as
a VP, enter [2] to set the Circuit Type as VPC only.
6 Enter the number corresponding to the type of virtual circuit you want to
configured: VCC or VPC.
The Add Virtual Circuit Screen lists the cards available for side A of the circuit, by
slot number, and prompts you to select a slot number, as shown in Figure 135.

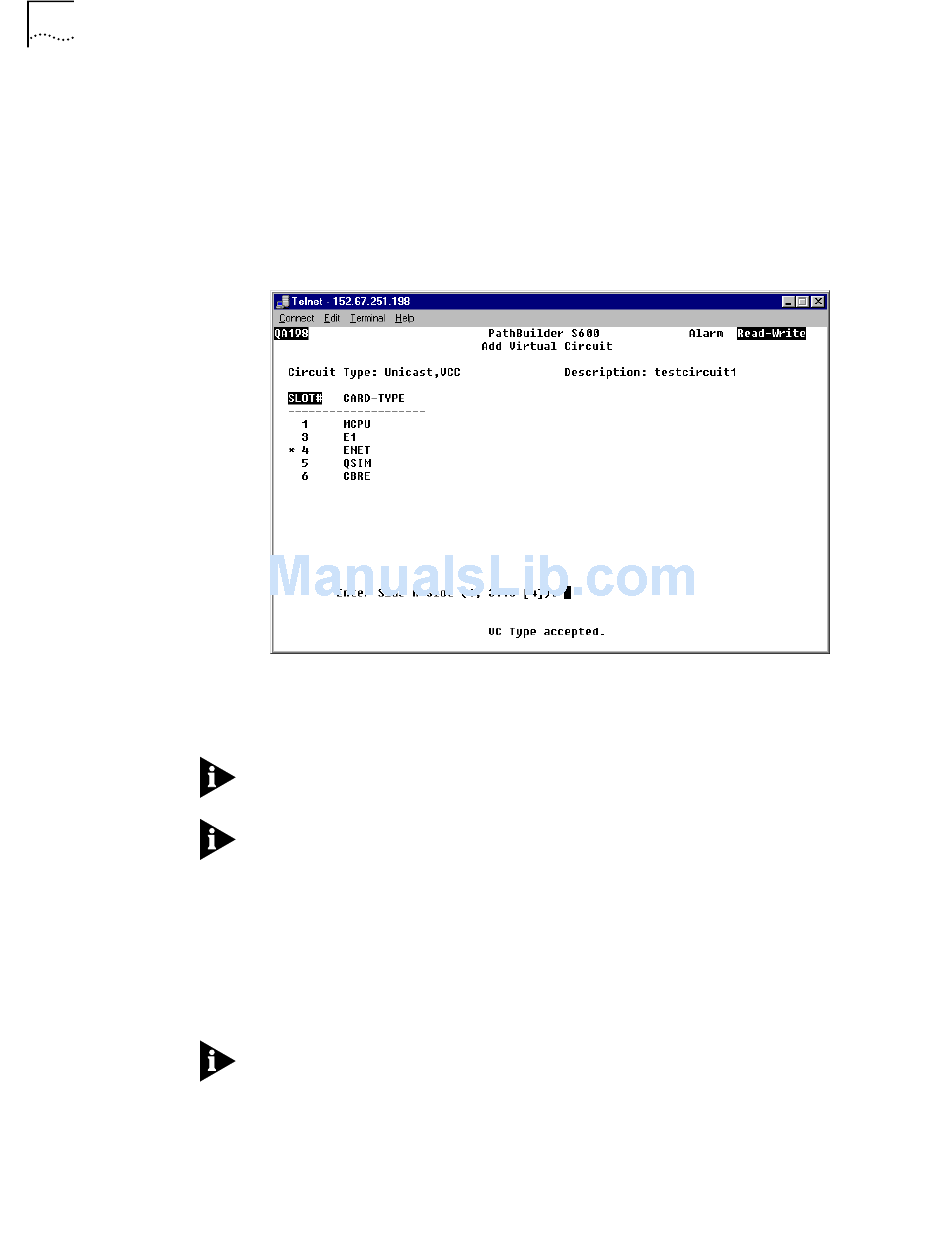

Figure 136 Add Virtual Circuit Screen—Specifying the Slot # for Side A
7 Enter the slot number for the card that you want to define as side A of the virtual
circuit. For example, from the Add Virtual Circuit screen show in Figure 135, if you
wanted to select the E1 UNI card as side A, you would enter [3].
The default slot number is indicated by an asterisk. To select the default slot
number, simply press [Enter].
You can also create an in-band circuit between two nodes by defining the
PathBuilder S330/S310 MCPU—with its own IP address—as one side of the virtual
circuit. This enables you to manage a remote hub from a local network
management station. See "Configuring In-band Management" in Chapter 3 for
details.
After you enter the slot number, the Add Virtual Circuit screen displays the
selected slot number and card type, lists the parameters you will enter for side A of
the circuit, and prompts you to set the first parameter. For parameters
descriptions, by card, see "Virtual Circuit Parameters" later in this chapter.
If the card you select has multiple ports, you are prompted to specify the port
number as the first parameter for side A of the circuit.
