Viewing and Clearing
Current Alarms
S600 D P
IAGNOSTICS AND ERFORMANCE
To view a list of current alarms, follow these steps:
1 From the Main menu, select [3] Fault Management to display the Fault
Management menu shown in Figure 145.

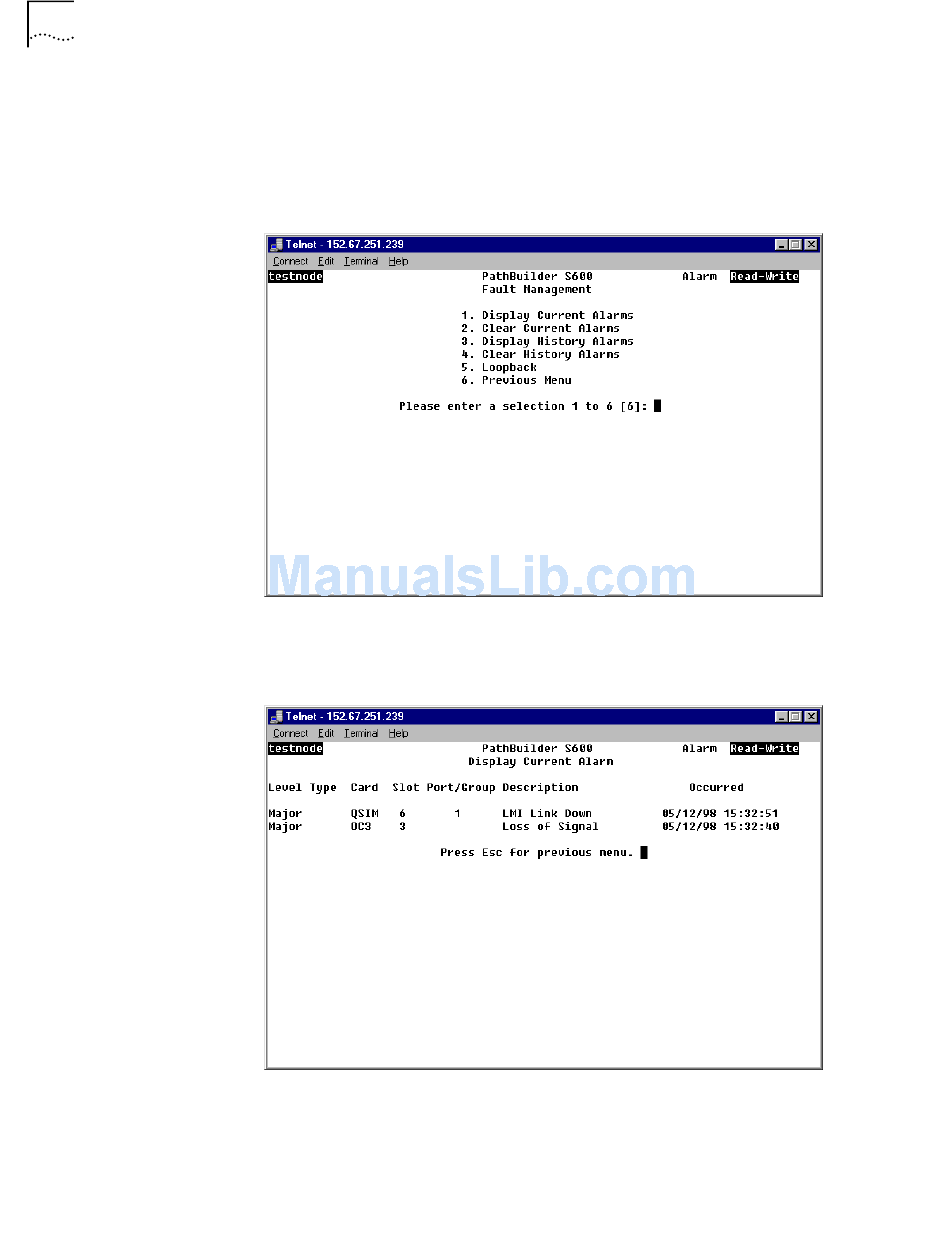

Figure 145 Fault Management Menu
2 Select [1] Display Current Alarms to view the Display Current Alarm screen, as
shown in Figure 146.
Figure 146 Display Current Alarm Screen
To clear the current alarms, follow these steps:
1 From the Display Current Alarm screen, press [Esc] to return to the Fault
Management menu.
2 Select [2] Clear Current Alarms. The following prompt appears:
Do you want to clear current alarms (Y/N) [N]?
3 Enter [Y] to clear the current alarms.
