Viewing Statistics 219
Port/Group—The port and group number.
rcvd from—The number of cells received.
(rcvd from) dropped—The number of received cells dropped.
rcvd for—The number of cells sent.
(rcvd for) dropped—The number of sent cells dropped.

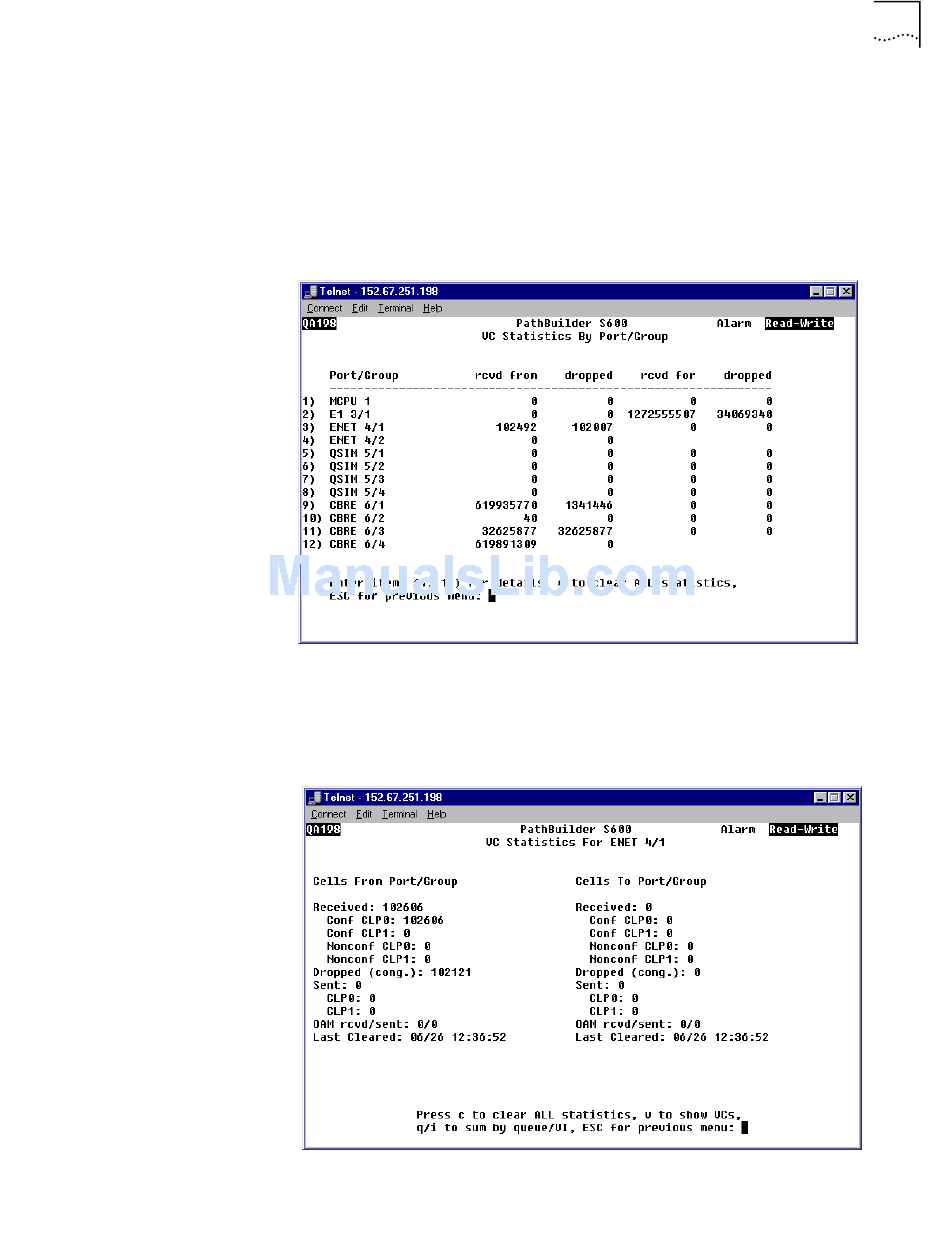

Figure 162 Virtual Statistics by Port/Group Summary Screen
3 To view the number of cells received, dropped, and sent from and to a particular
port/group, enter the desired pot/group number to display the Virtual Circuit
Statistics by Port/Group Detail screen, shown in Figure 163.
Figure 163 Virtual Circuit Statistics By Port/Group Detail Window
