3 Select [2] Add Virtual Interface to display the Add Virtual Interface Configuration
4 Select [2] Set Description and enter a description for the virtual interface.
5 Select [1] Set Shaper Rate and select a shaper rate. The range of acceptable shaper
6 Select [3] Previous Menu to return to the Add Virtual Interface Configuration
7 Repeat steps 3-6 to add additional virtual interfaces as desired.
Viewing and/or
Modifying Existing
Virtual Interfaces
1 From the List Card menu, enter the slot number corresponding to the card for
2 Select the Virtual Interfaces option to display the Virtual Interfaces Configuration
3 Select [1] List/Modify Virtual Interface to open the List/Modify Virtual Interface
menu.

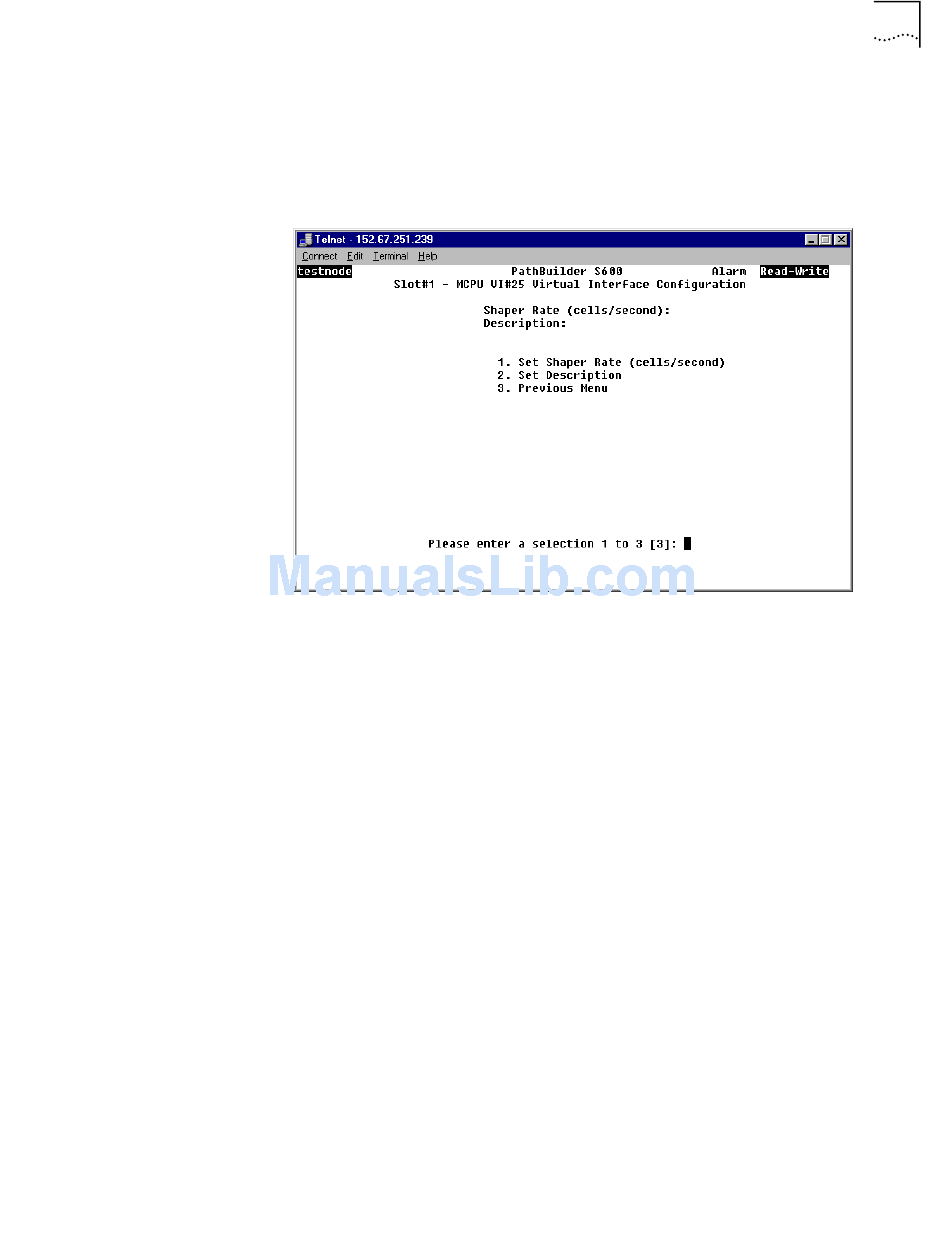

Figure 84 shows the MCPU Add Virtual Interface menu. The other menus are the
same.
Figure 84 Add Virtual Interface Configuration Menu
rates is 151 to 367642 cells per second (64Kbps to 155.88Mbps).
When the shaper rate is set, a prompt similar to the following appears:
VI 1 is updated.
menu.
Once a Virtual Interface has been established, you can modify the values for
Shaper Rate or Description.
To view and/or modify an existing virtual interface, follow these steps:
which you want to view and/or modify a virtual interface. The configuration menu
for that card appears.
menu. Figure 83, above, shows the MCPU Virtual Interfaces Configuration menu.
The menus for the other cards are the same.
menu. Figure 85 shows the MCPU List/Modify Virtual Interface menu. The menus
for the other cards are the same.
Configuring Virtual Interfaces 119
