38 C 2: I
HAPTER NSTALLATION

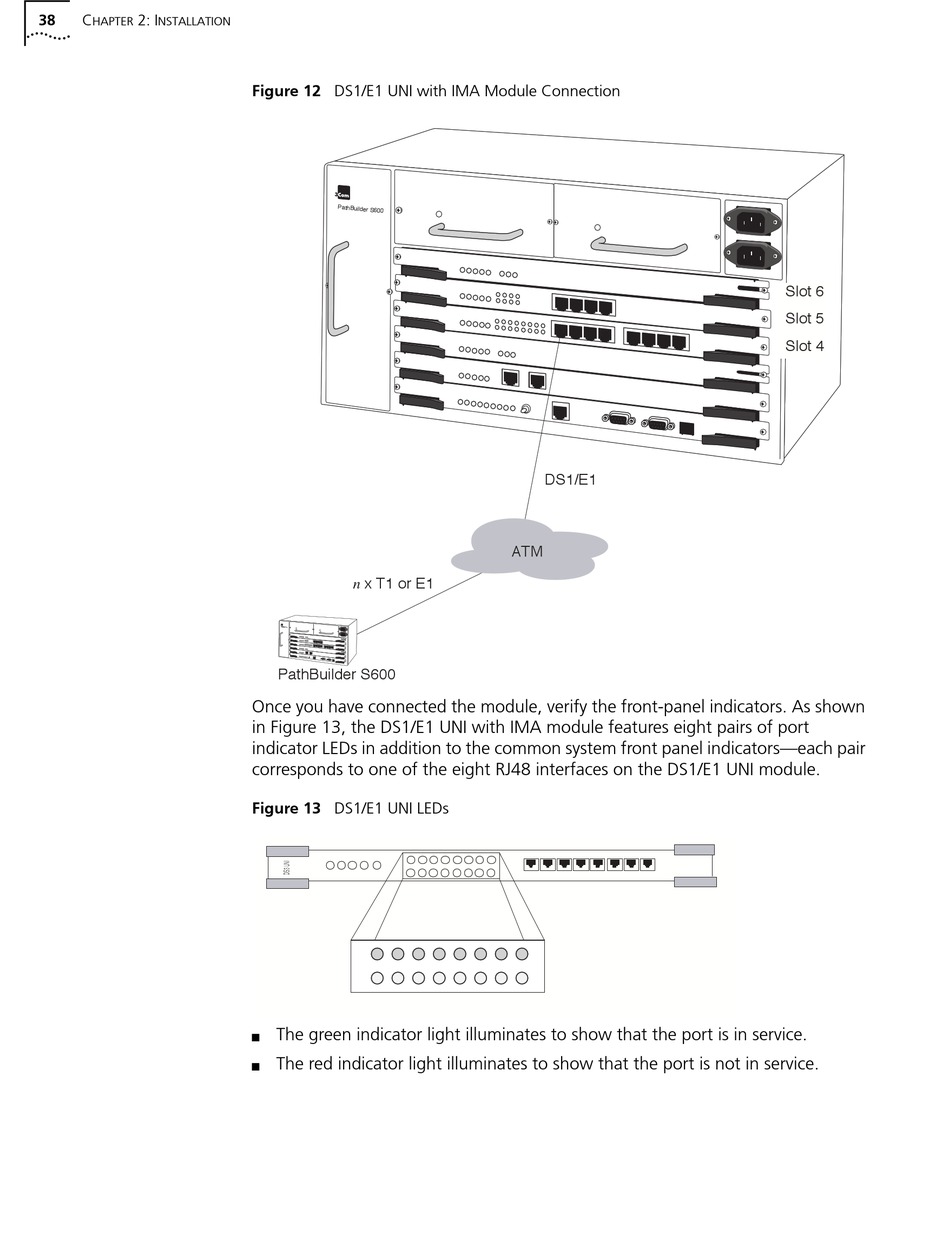

Figure 12 DS1/E1 UNI with IMA Module Connection
n x T1 or E1
PathBuilder S600
Once you have connected the module, verify the front-panel indicators. As shown
in Figure 13, the DS1/E1 UNI with IMA module features eight pairs of port
indicator LEDs in addition to the common system front panel indicators—each pair
corresponds to one of the eight RJ48 interfaces on the DS1/E1 UNI module.
Figure 13 DS1/E1 UNI LEDs
The green indicator light illuminates to show that the port is in service.
n
The red indicator light illuminates to show that the port is not in service.
n
DS1/E1
ATM
Slot 6
Slot 5
Slot 4
