Configuring Virtual Circuits 183

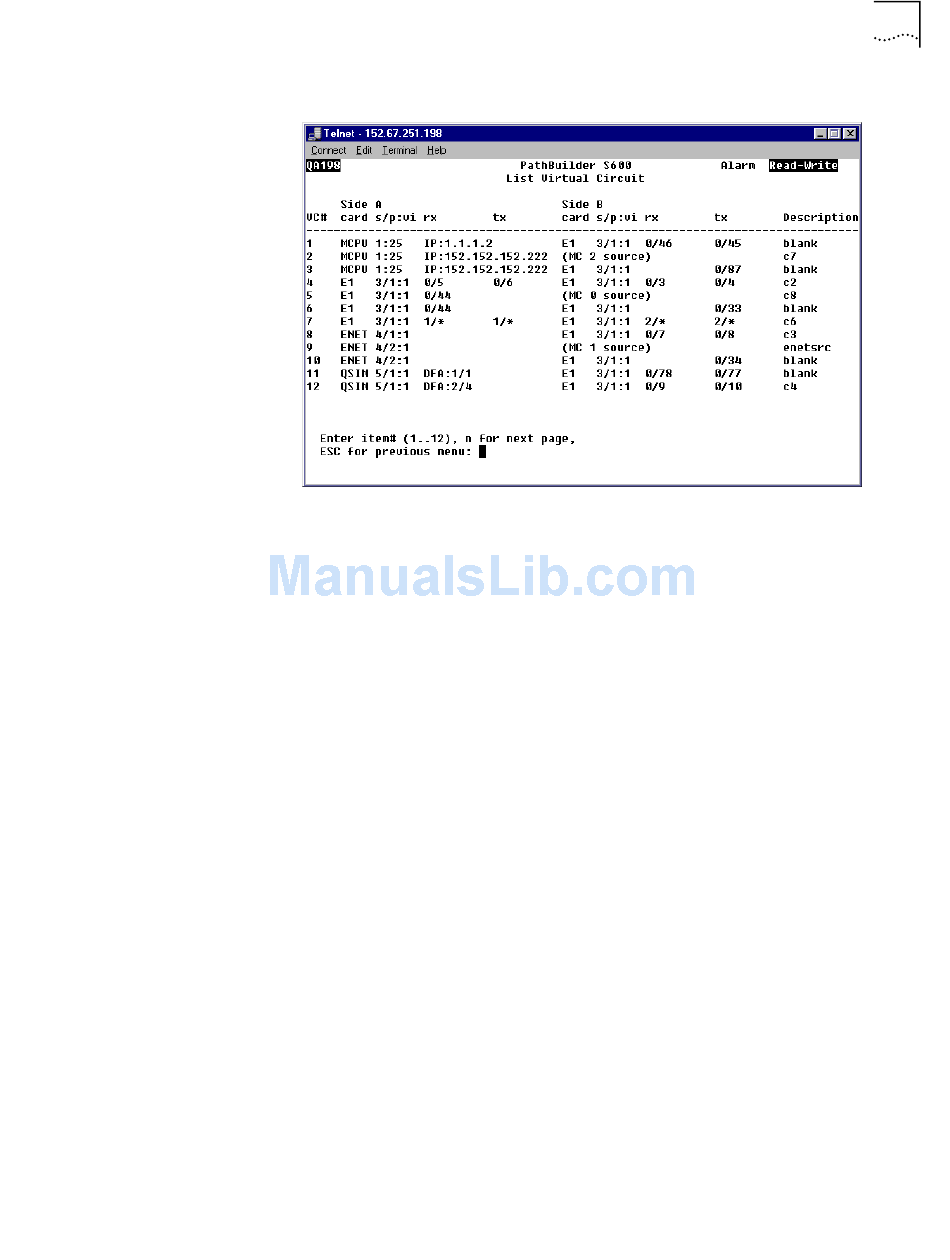

Figure 140 List Virtual Circuit Summary Screen
The List Virtual Circuit Summary Screen shows a summary of all virtual circuits,
with a virtual circuit number (VC#) assigned to each. It displays the following
information:
s/p:vi—Slot, port, and virtual interface numbers (for side A and side B of the
circuit)
Rx/Tx—Receive/transmit VPI/VCI (for side A and side B of the circuit)
Description—The description entered when the circuit was configured.
3 To view more detailed information about a specific virtual circuit enter the VC# of
the circuit you want to view from the List Virtual Circuit Summary screen.
The List Virtual Circuit Detail screen appears. This screen displays the complete list
of parameters for the port and trunk sides of the selected circuit.
Figure 141 shows a representative List Virtual Circuit detail screen for an E1 UNI
card. Figure 142 shows a representative List Virtual Circuit Detail Screen for a CBR
card.
