3 View the parameters for the virtual circuit that is currently specified to pass the IP
traffic over the ATM network.
a Select [4] Specify Virtual Circuit to display the Specify Virtual Circuit menu,
shown in Figure 119. This menu displays the parameters for the current virtual
circuit.

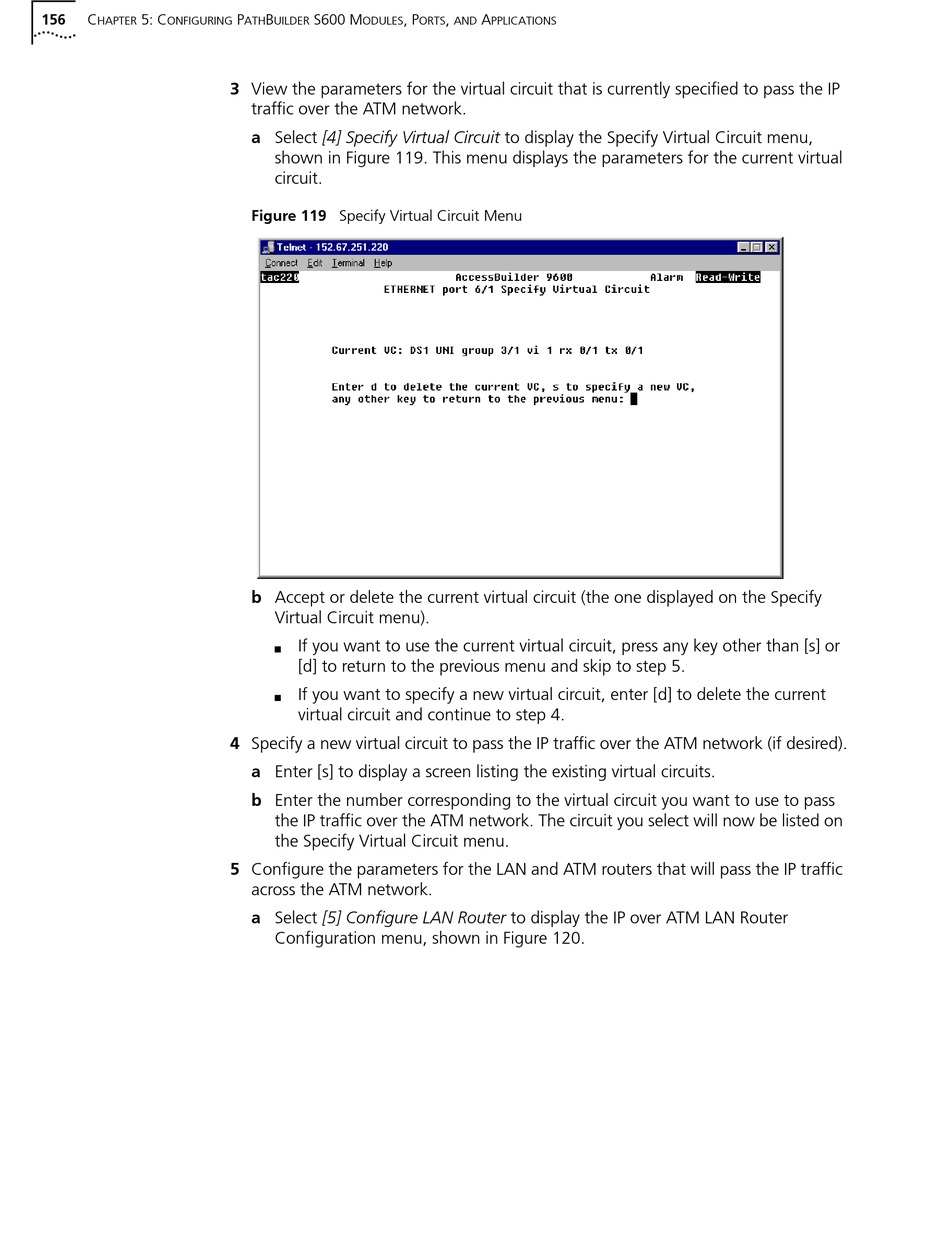

Figure 119 Specify Virtual Circuit Menu
b Accept or delete the current virtual circuit (the one displayed on the Specify
Virtual Circuit menu).
If you want to use the current virtual circuit, press any key other than [s] or
n
[d] to return to the previous menu and skip to step 5.
If you want to specify a new virtual circuit, enter [d] to delete the current
n
virtual circuit and continue to step 4.
4 Specify a new virtual circuit to pass the IP traffic over the ATM network (if desired).
a Enter [s] to display a screen listing the existing virtual circuits.
b Enter the number corresponding to the virtual circuit you want to use to pass
the IP traffic over the ATM network. The circuit you select will now be listed on
the Specify Virtual Circuit menu.
5 Configure the parameters for the LAN and ATM routers that will pass the IP traffic
across the ATM network.
a Select [5] Configure LAN Router to display the IP over ATM LAN Router
Configuration menu, shown in Figure 120.
