Configuring the
Ethernet Module
Configuring Ethernet
Ports, Cards, Shapers
and Virtual Interfaces
In addition to the current DS1/E1 card configuration, the DS1/E1 UNI Card
Configuration menu lists the following group-related information:
Operation Group—The active IMA groups in the card.
Num. of IMA Group(s)—The number of IMA groups created (but not necessarily
active) on the card.
Configuring the Ethernet module involves the following tasks:
Configuring the Ethernet ports, card, shapers, and virtual interfaces
n
Configuring the bridge
n
To configure the Ethernet ports, card, shapers, and virtual interfaces, follow these
steps:
1 From the List Card menu, shown earlier in Figure 80, select the slot number
corresponding to the Ethernet module to display the Ethernet Configuration
menu, shown in Figure 105.

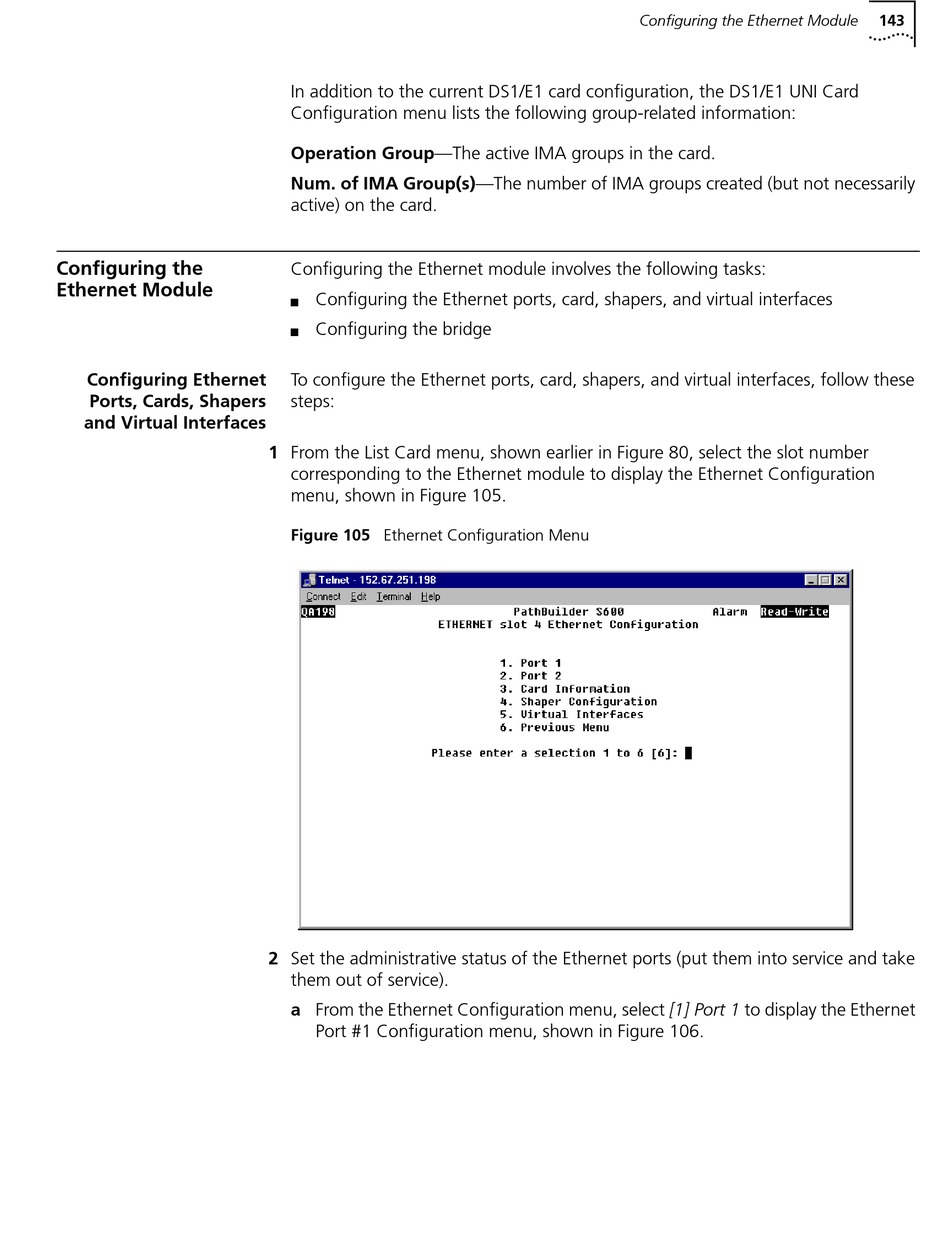

Figure 105 Ethernet Configuration Menu
2 Set the administrative status of the Ethernet ports (put them into service and take
them out of service).
a From the Ethernet Configuration menu, select [1] Port 1 to display the Ethernet
Port #1 Configuration menu, shown in Figure 106.
