144 C 5: C
HAPTER ONFIGURING
P B S600 M
ATH UILDER ODULES

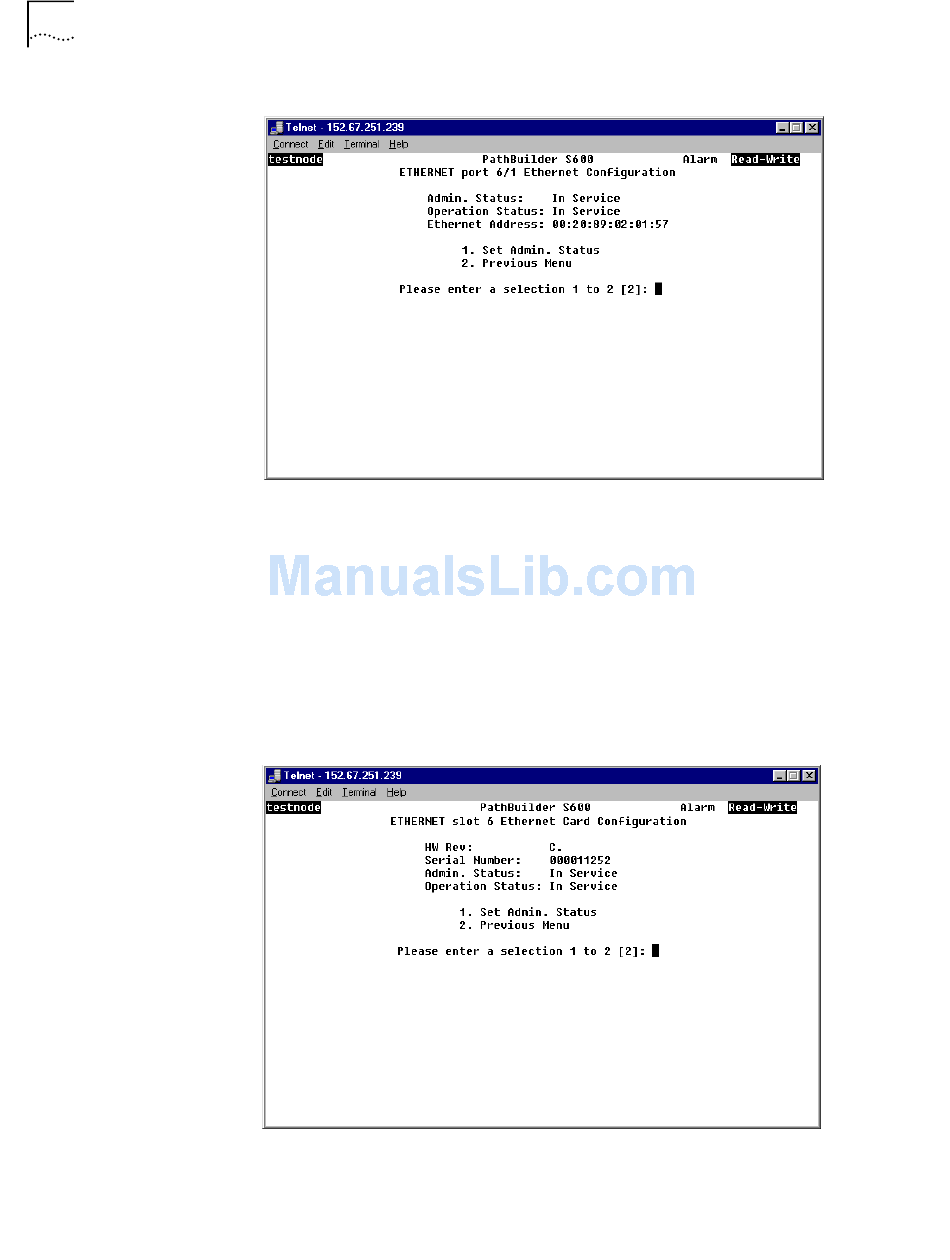

Figure 106 Ethernet Port #1 Configuration Menu
b Select [1] Set Admin. Status and enter [2] to put the Ethernet port into service
or [1] to take it out of service.
c Repeat steps a and b, selecting [2] Port 2 in step a, to set the administrative
status for Ethernet port #2.
d Select [2] Previous Menu to return to the Ethernet Configuration menu.
3 Set the administrative status of the Ethernet card (put it into service or take it out
of service).
a From the Ethernet Configuration menu, select [3] Card Information to display
the Ethernet Card Configuration menu, shown in Figure 107.
Figure 107 Ethernet Card Configuration Menu
b Select [1] Set Admin. Status and enter [2] to put the Ethernet card into service
or [1] to take it out of service.
c Select [2] Previous Menu to return to the Ethernet Configuration menu.
, P , A
ORTS AND PPLICATIONS
