Step 4: Connect I/O
Cabling and Wiring
Install any one of the following application modules in slot 3-6:
n
DS3 UNI
n
E3 UNI
n
OC3/STM-1 UNI
n
DS1 UNI with IMA
n
E1 UNI with IMA
n
Ethernet
n
CBR DSX
n
CBR-E1
n
QSIM (Quad Serial Interface Module)
n
HSIM (HSSI Module)
n
FAM (Frame Access Module)
n
This section tells you how to connect I/O cabling and wiring once the modules are
installed in the shelf and describes the common and module-specific front panel
LEDs. Figure 6 shows an example of a PathBuilder S600 configuration with all of
the associated cabling connected.

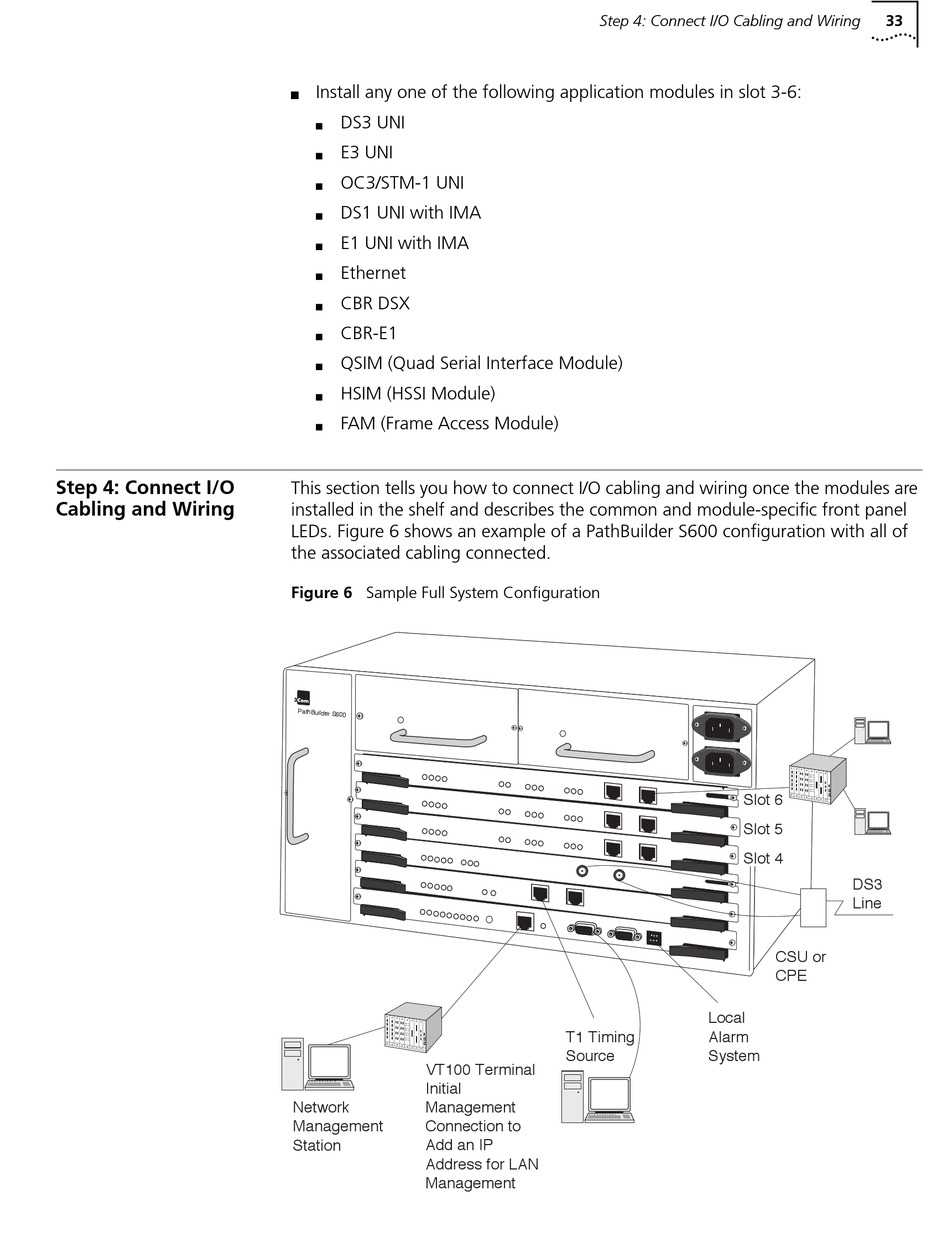

Figure 6 Sample Full System Configuration
VT100 Terminal
Initial
Network Management
Management Connection to
Station Add an IP
Address for LAN
Management

Step 4: Connect I/O Cabling and Wiring

Slot 6
Slot 5
Slot 4
Local
T1 Timing Alarm
Source System
33
DS3
Line
CSU or
CPE
