158 C 5: C
HAPTER ONFIGURING
Configuring the CBR
DSX (or E1) Modules
P B S600 M
ATH UILDER ODULES

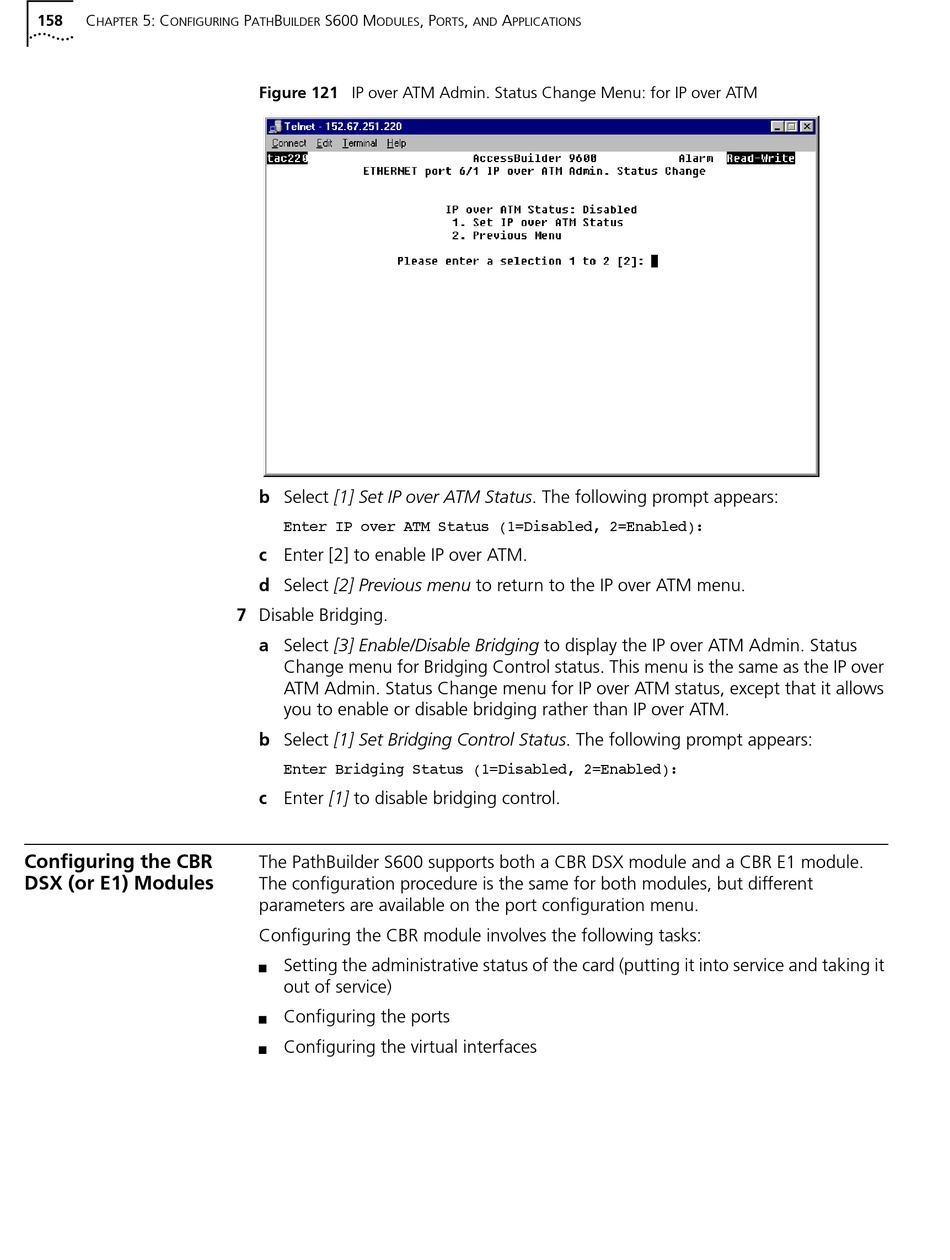

Figure 121 IP over ATM Admin. Status Change Menu: for IP over ATM
b Select [1] Set IP over ATM Status. The following prompt appears:
Enter IP over ATM Status (1=Disabled, 2=Enabled):
c Enter [2] to enable IP over ATM.
d Select [2] Previous menu to return to the IP over ATM menu.
7 Disable Bridging.
a Select [3] Enable/Disable Bridging to display the IP over ATM Admin. Status
Change menu for Bridging Control status. This menu is the same as the IP over
ATM Admin. Status Change menu for IP over ATM status, except that it allows
you to enable or disable bridging rather than IP over ATM.
b Select [1] Set Bridging Control Status. The following prompt appears:
Enter Bridging Status (1=Disabled, 2=Enabled):
c Enter [1] to disable bridging control.
The PathBuilder S600 supports both a CBR DSX module and a CBR E1 module.
The configuration procedure is the same for both modules, but different
parameters are available on the port configuration menu.
Configuring the CBR module involves the following tasks:
Setting the administrative status of the card (putting it into service and taking it
n
out of service)
Configuring the ports
n
Configuring the virtual interfaces
n
, P , A
ORTS AND PPLICATIONS
