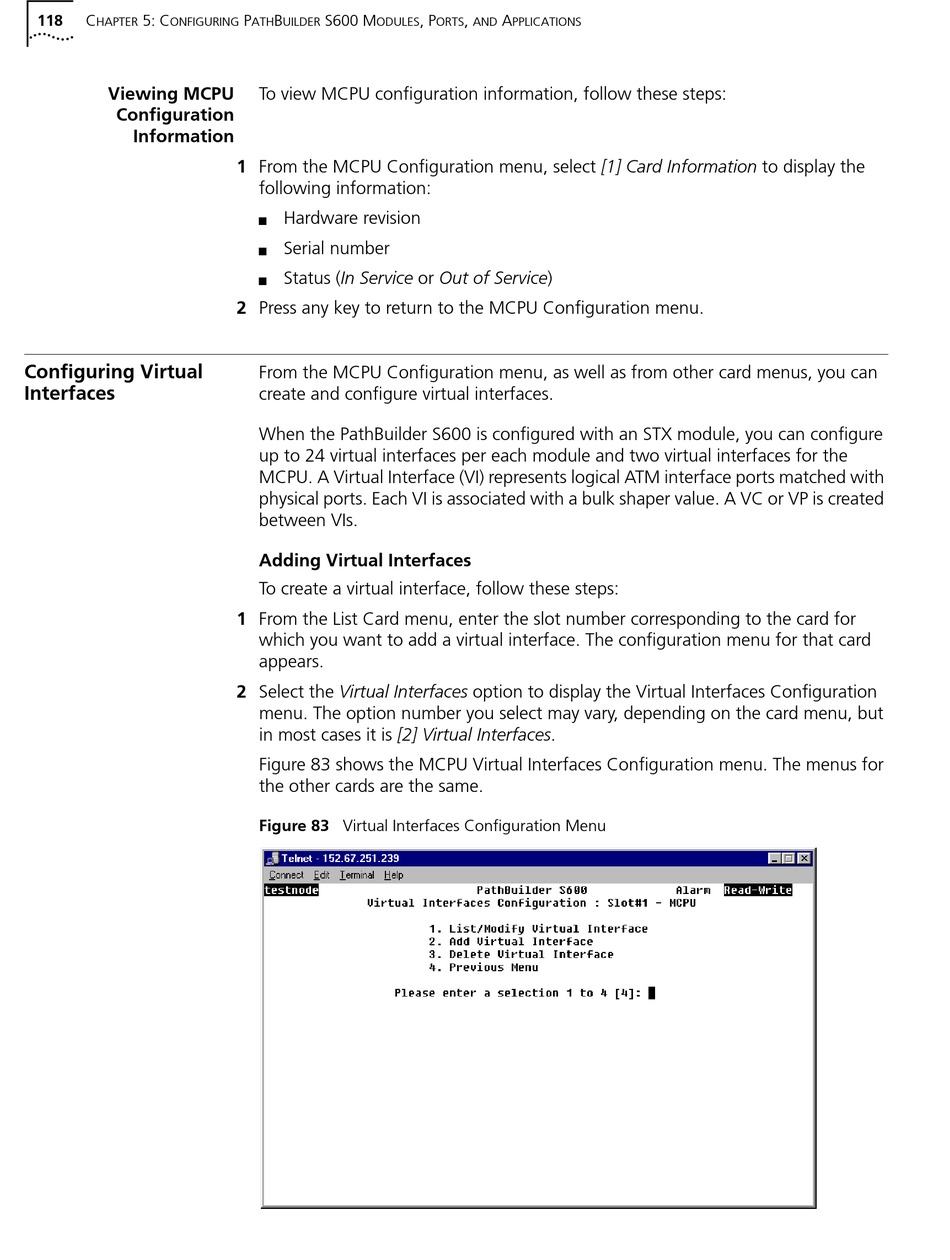

118 C 5: C
HAPTER ONFIGURING
Viewing MCPU
Configuration
Information
Configuring Virtual
Interfaces
P B S600 M
ATH UILDER ODULES
To view MCPU configuration information, follow these steps:
1 From the MCPU Configuration menu, select [1] Card Information to display the
following information:
Hardware revision
n
Serial number
n
Status (In Service or Out of Service)
n
2 Press any key to return to the MCPU Configuration menu.
From the MCPU Configuration menu, as well as from other card menus, you can
create and configure virtual interfaces.
When the PathBuilder S600 is configured with an STX module, you can configure
up to 24 virtual interfaces per each module and two virtual interfaces for the
MCPU. A Virtual Interface (VI) represents logical ATM interface ports matched with
physical ports. Each VI is associated with a bulk shaper value. A VC or VP is created
between VIs.

Adding Virtual Interfaces

To create a virtual interface, follow these steps:
1 From the List Card menu, enter the slot number corresponding to the card for
which you want to add a virtual interface. The configuration menu for that card
appears.
2 Select the Virtual Interfaces option to display the Virtual Interfaces Configuration
menu. The option number you select may vary, depending on the card menu, but
in most cases it is [2] Virtual Interfaces.
Figure 83 shows the MCPU Virtual Interfaces Configuration menu. The menus for
the other cards are the same.
Figure 83 Virtual Interfaces Configuration Menu
, P , A
ORTS AND PPLICATIONS
