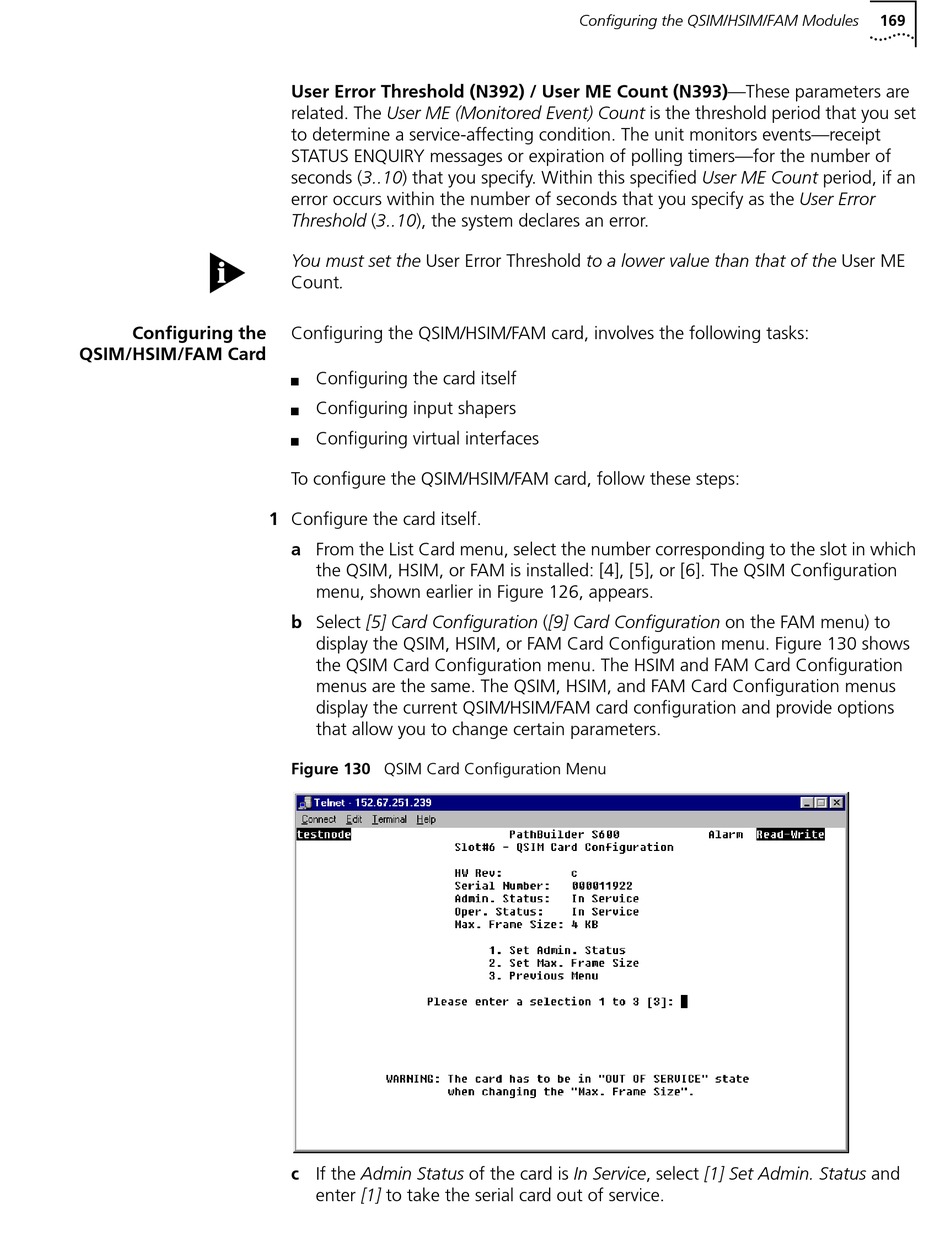

Configuring The Qsim/Hsim/Fam Card - 3Com 3C63100-AC-C - PathBuilder S600 Bridge/router Reference Manual

Configuring the
QSIM/HSIM/FAM Card
User Error Threshold (N392) / User ME Count (N393)—These parameters are
related. The User ME (Monitored Event) Count is the threshold period that you set
to determine a service-affecting condition. The unit monitors events—receipt
STATUS ENQUIRY messages or expiration of polling timers—for the number of
seconds (3..10) that you specify. Within this specified User ME Count period, if an
error occurs within the number of seconds that you specify as the User Error
Threshold (3..10), the system declares an error.
You must set the User Error Threshold to a lower value than that of the User ME
Count.
Configuring the QSIM/HSIM/FAM card, involves the following tasks:
Configuring the card itself
n
Configuring input shapers
n
Configuring virtual interfaces
n
To configure the QSIM/HSIM/FAM card, follow these steps:
1 Configure the card itself.
a From the List Card menu, select the number corresponding to the slot in which
the QSIM, HSIM, or FAM is installed: [4], [5], or [6]. The QSIM Configuration
menu, shown earlier in Figure 126, appears.
b Select [5] Card Configuration ([9] Card Configuration on the FAM menu) to
display the QSIM, HSIM, or FAM Card Configuration menu. Figure 130 shows
the QSIM Card Configuration menu. The HSIM and FAM Card Configuration
menus are the same. The QSIM, HSIM, and FAM Card Configuration menus
display the current QSIM/HSIM/FAM card configuration and provide options
that allow you to change certain parameters.
Figure 130 QSIM Card Configuration Menu
c If the Admin Status of the card is In Service, select [1] Set Admin. Status and
enter [1] to take the serial card out of service.
Configuring the QSIM/HSIM/FAM Modules 169
