114 C 5: C
HAPTER ONFIGURING
PathBuilder S600
Configuration
Overview
P B S600 M
ATH UILDER ODULES
3 Switch to binary mode by entering:
binary
4 Verify that the current directory is /flashDev/standby.
5 Put file bootmgmt.abs by entering:
put bootmgmt.abs image
6 Exit FTP by entering:
bye
7 Telnet to the node.
8 Select [1] System Administration to display the System Administration menu.
9 Select [9] Switch to Standby Code to display the Switch to Standby Code screen.
10 Enter [Y] to switch to standby code.
Select [2] Configuration Management from the Main menu to display the
Configuration Management menu, shown in Figure 79. Use this menu to access
submenus and screens that allow you to:
Manage cards—View shelf configuration information and configure the
n
PathBuilder S600 application modules.
Manage circuits—List, add, modify, and delete virtual circuits.
n
Manage the bridge—Set the bridge aging timer and configure the bridge.
n
Manage IP over ATM—Configure and enable/disable IP over ATM for
n
Ethernet ports.

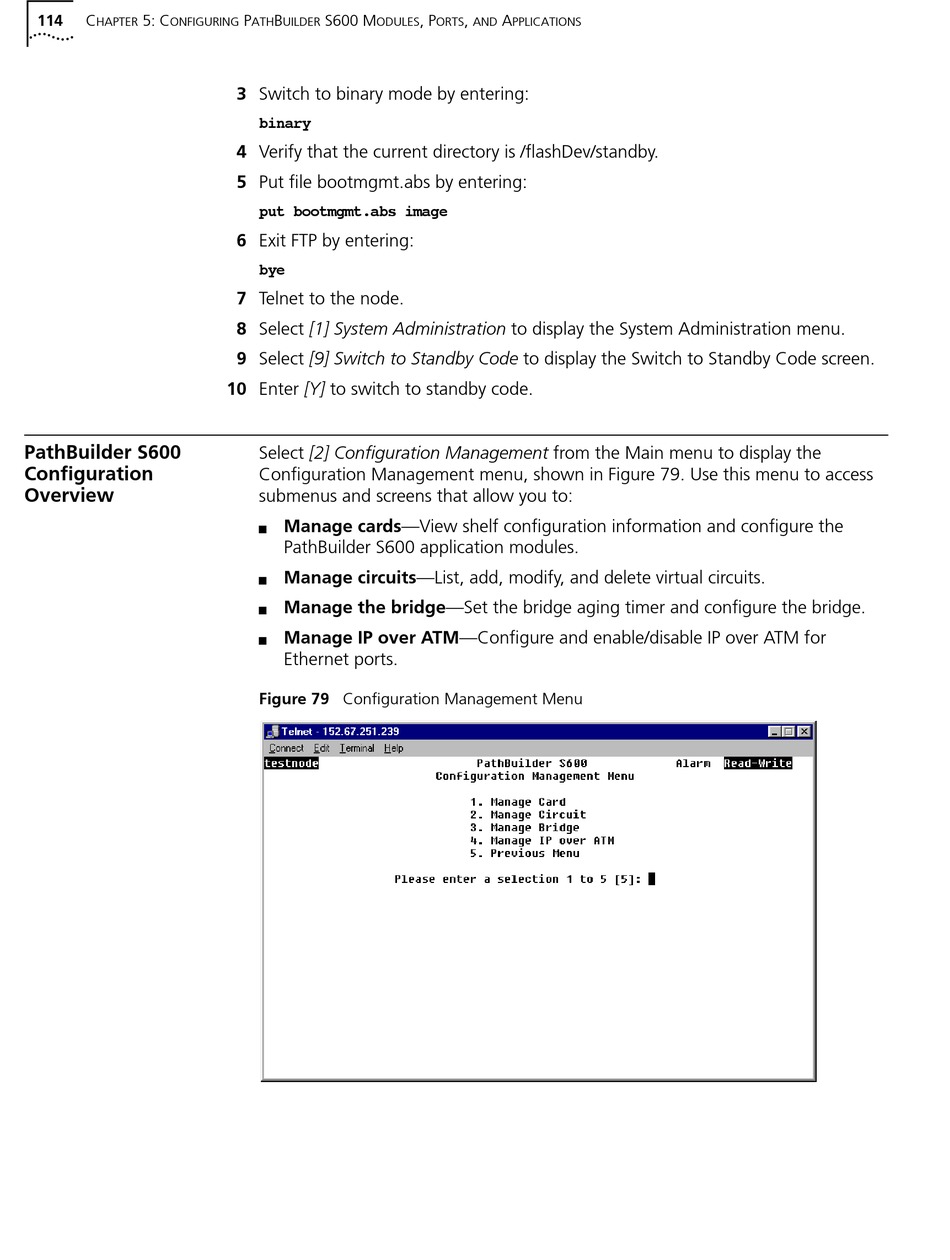

Figure 79 Configuration Management Menu
, P , A
ORTS AND PPLICATIONS
