Step 5: Connect a
Management Terminal
In order to configure application connections and an IP address for SNMP support,
you must connect a management terminal to the PathBuilder S600. To do this, you
use the ports on the Management CPU module in slot 1 of the PathBuilder S600
shelf.
To connect a network management terminal, follow these steps:
1 Connect a VT 100 terminal to the RS-232 (console) port.
2 Use the VT100 terminal to input an IP address for the PathBuilder S600. See
"Setting up Communication Parameters" in Chapter 3, for details.
3 Establish communication between the PathBuilder S600 and any management
terminal in one of these ways:
Direct RS-232 using the VT100 terminal or VT100 emulator, as described above
n
Direct 10BaseT using an IP Telnet session
n
SLIP or PPP over a dialup network using an IP Telnet session
n

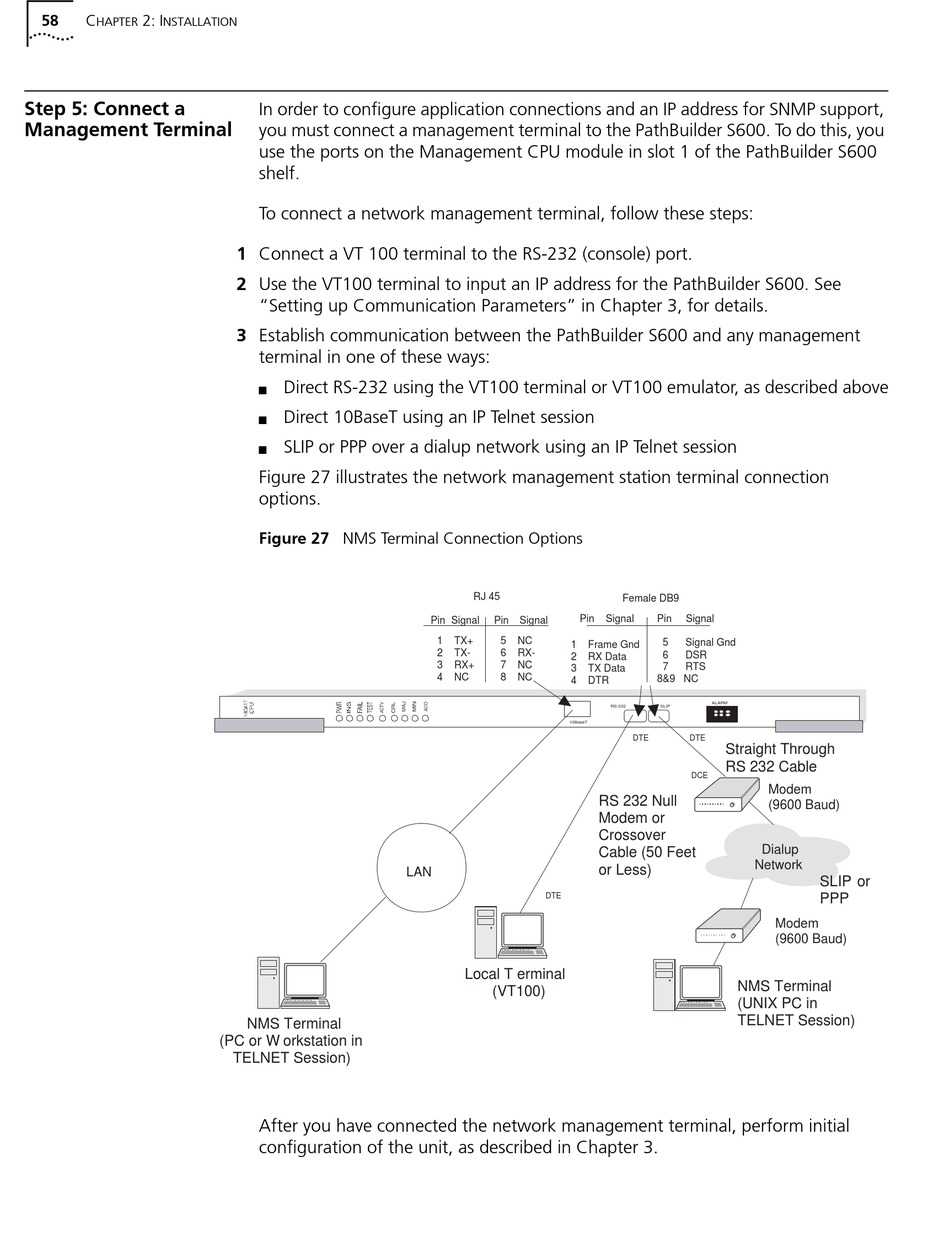

Figure 27 illustrates the network management station terminal connection
options.
Figure 27 NMS Terminal Connection Options
NMS Terminal
(PC or W orkstation in
TELNET Session)
After you have connected the network management terminal, perform initial
configuration of the unit, as described in Chapter 3.
