Atm Statistics Overview; Virtual Circuit Statistics Overview - 3Com 3C63100-AC-C - PathBuilder S600 Bridge/router Reference Manual

Virtual Circuit Statistics
Overview

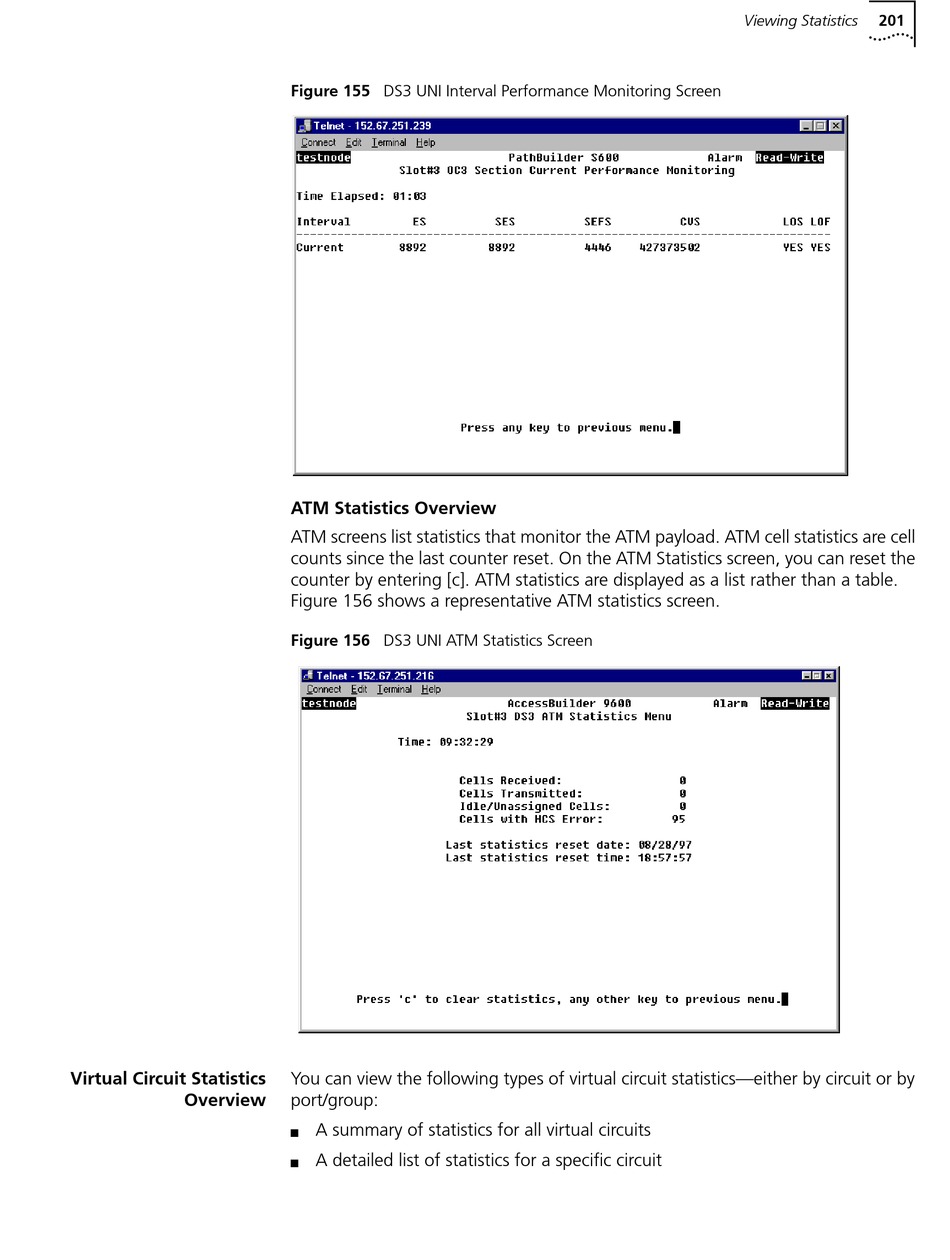

Figure 155 DS3 UNI Interval Performance Monitoring Screen

ATM Statistics Overview

ATM screens list statistics that monitor the ATM payload. ATM cell statistics are cell
counts since the last counter reset. On the ATM Statistics screen, you can reset the
counter by entering [c]. ATM statistics are displayed as a list rather than a table.
Figure 156 shows a representative ATM statistics screen.
Figure 156 DS3 UNI ATM Statistics Screen
You can view the following types of virtual circuit statistics—either by circuit or by
port/group:
A summary of statistics for all virtual circuits
n
A detailed list of statistics for a specific circuit
n
Viewing Statistics 201
