Step 2: Connect AC or
DC Power
To install the shelf in the rack, follow these steps:
1 Adjust the mounting ears, if necessary, for 19" installation. See Figure 4.

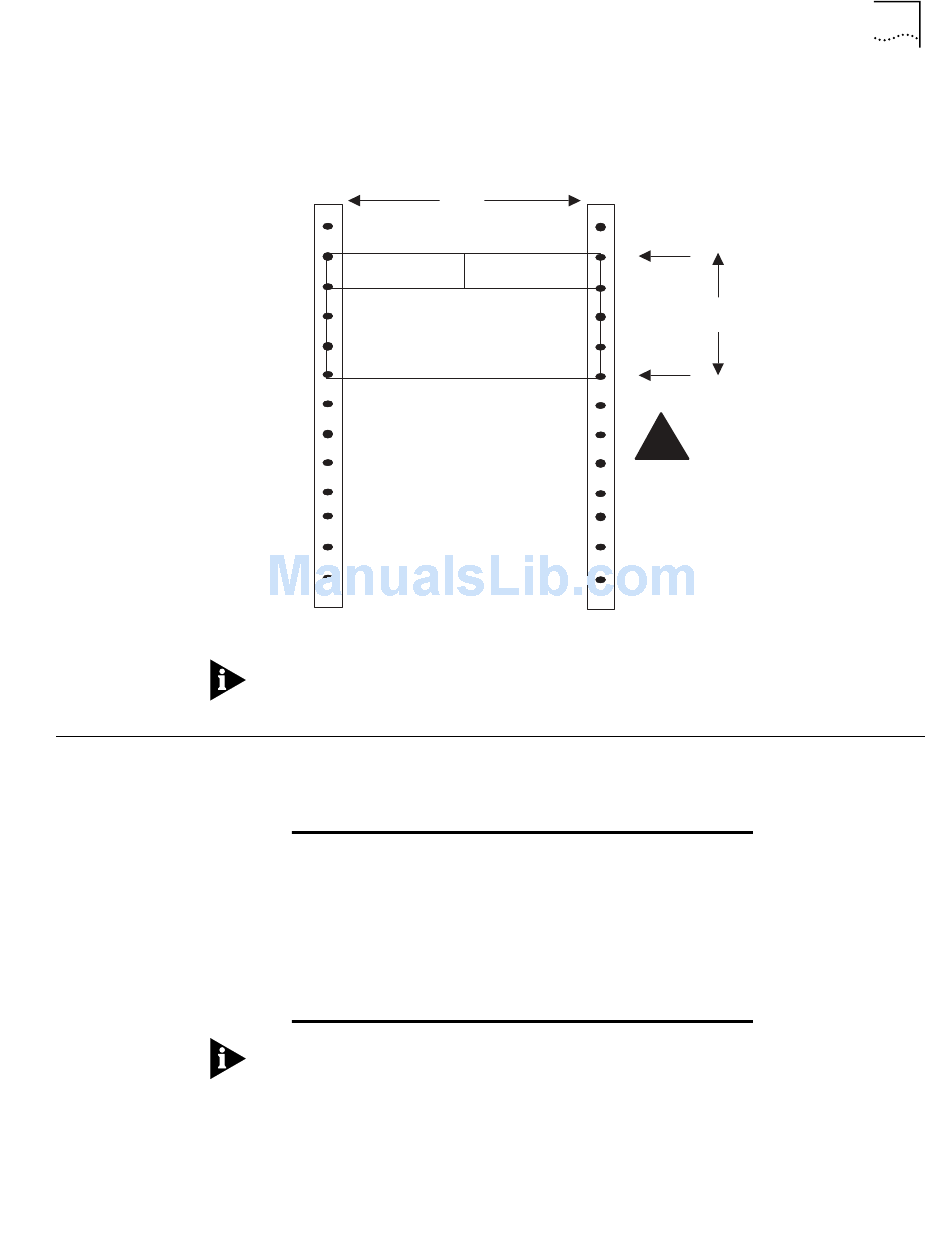

Figure 4 Rack Mounting Ear Configurations
PathBuilder S600
2 Support the shelf in its mounting place and attach the mounting hardware.
Since the unit weighs approximately 25 pounds, we recommend that two people
perform this step.
You make the input AC/DC power connections at the front of the PathBuilder
S600 shelf. Table 6 lists the specifications for the AC/DC Source.
Table 6 AC/DC Source Specifications
Input Power
Requirements
Power Consumption
Maximum Current
3Com recommends that AC/DC power and office alarms be connected through a
Fuse and Alarm Panel mounted above the PathBuilder S600.
19"
90-264 VAC, 50-60Hz, Standard Grounded
Outlet for all PathBuilder S600s
Requirements
-42 to -52 VDC, Optional
14 AWG wire, Belden type 19364
200 Watts, Typical
2.0 A @ 11v
1.0A @ 220V

Step 2: Connect AC or DC Power

5 Rows 8.75"
Caution: Weight
25 lbs
!
(Two People are
Recommended.)
31
