Using the Monitor State Utility

To view the administrative, operational, and usage states using the
Monitor State utility:
1 In the explorer tree, select an element.
2 Right-click the element, and select Monitor State from the pop-up menu.

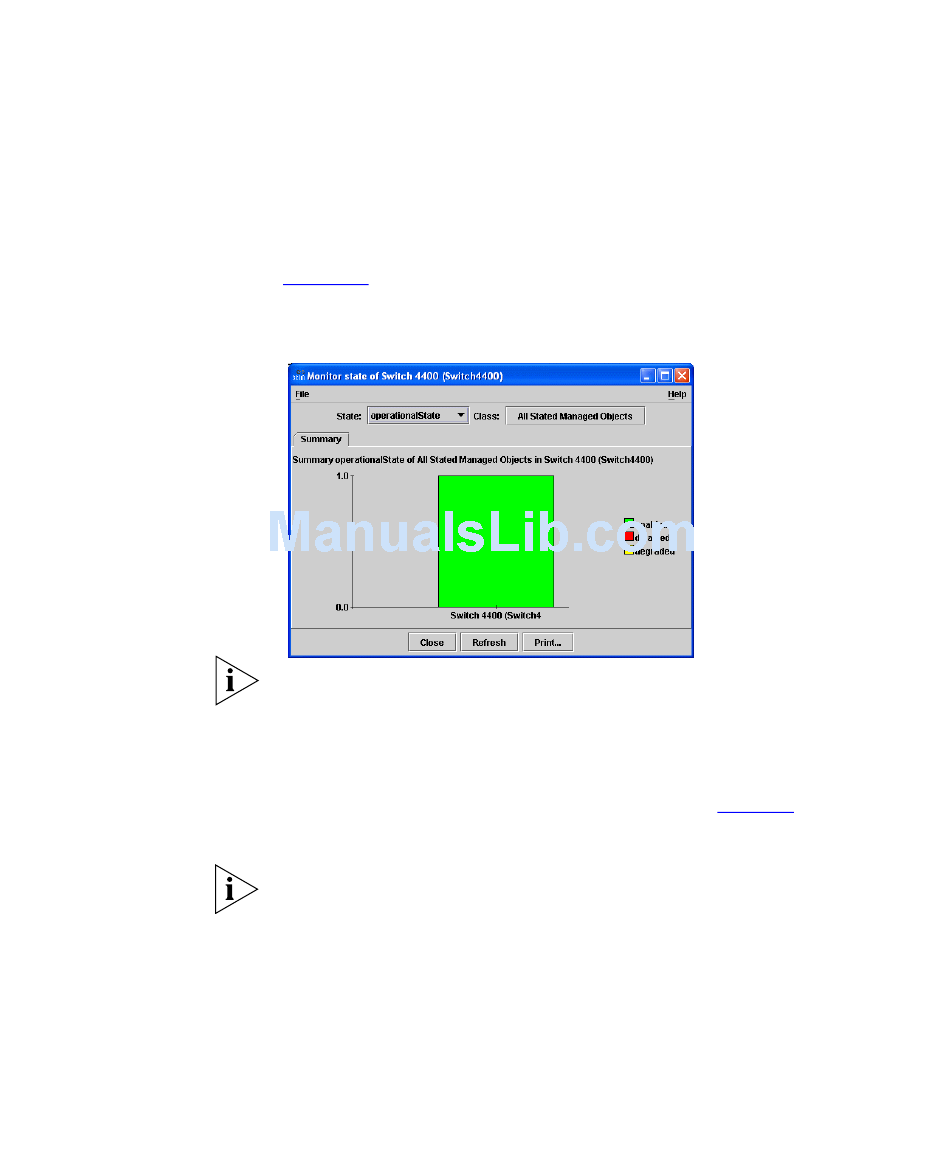

Figure 64 shows the Monitor State utility.
Figure 64 Accessing the Monitor State Utility
To refresh the status, click "Refresh".
3 From the State drop-down list, select a state type (administrativeState,
operationalState, and usageState) based on your understanding of the
state types.
For a detailed definition of each state type, see
4 To select a class type, click All Stated Managed Objects in the Class field.
The classes in the "Class" list are EMS internal class names and do not
have any relationship to MIB classes.
Monitoring the Status of GUI Elements
