Disassembling and
23 00 622
reassembling compensating shaft
•

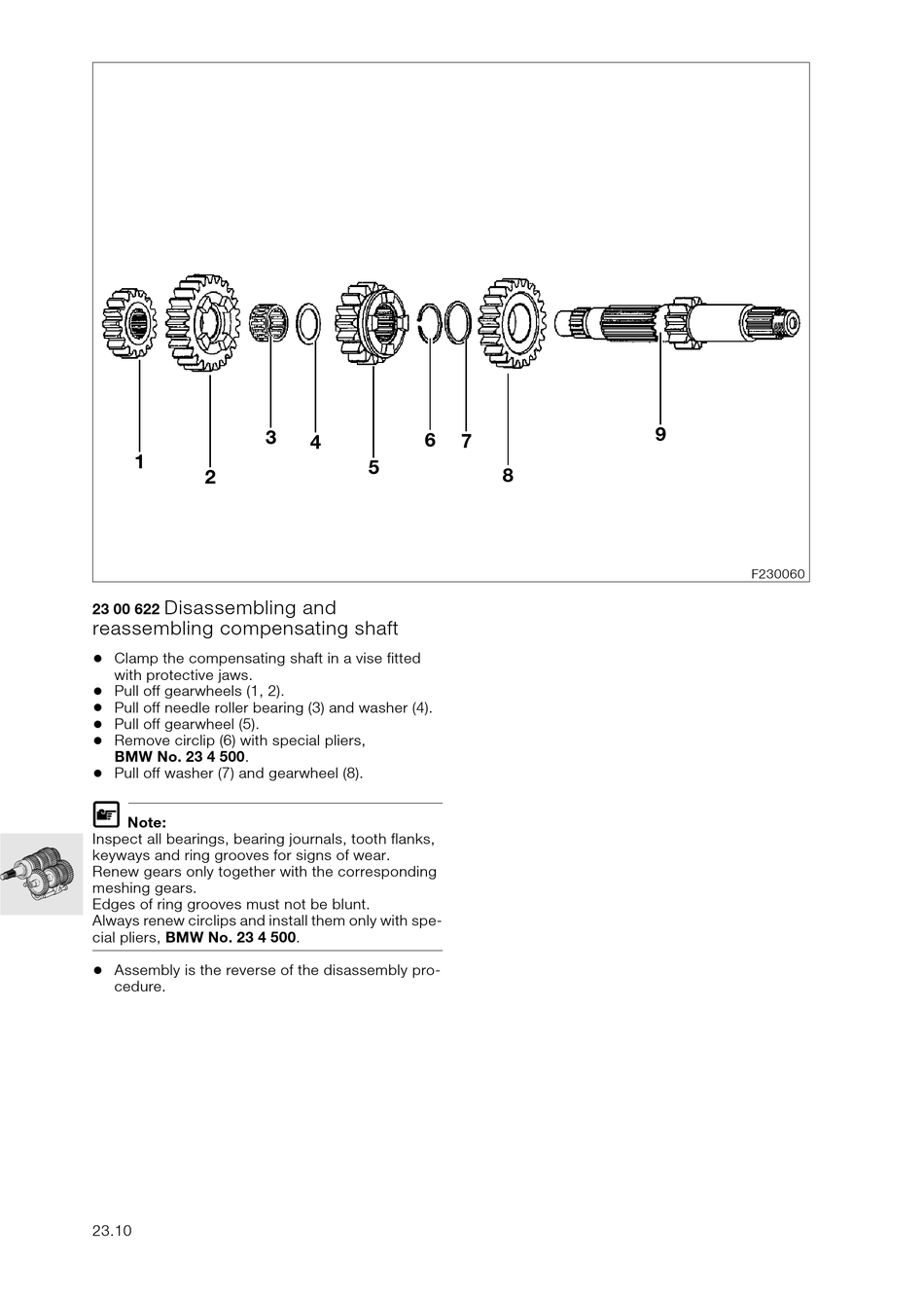

Clamp the compensating shaft in a vise fitted
with protective jaws.
•
Pull off gearwheels (1, 2).
•
Pull off needle roller bearing (3) and washer (4).
•
Pull off gearwheel (5).
•
Remove circlip (6) with special pliers,
BMW No. 23 4 500.
•
Pull off washer (7) and gearwheel (8).
L
Note:
Inspect all bearings, bearing journals, tooth flanks,
keyways and ring grooves for signs of wear.
Renew gears only together with the corresponding
meshing gears.
Edges of ring grooves must not be blunt.
Always renew circlips and install them only with spe-
cial pliers, BMW No. 23 4 500.
•
Assembly is the reverse of the disassembly pro-
cedure.
