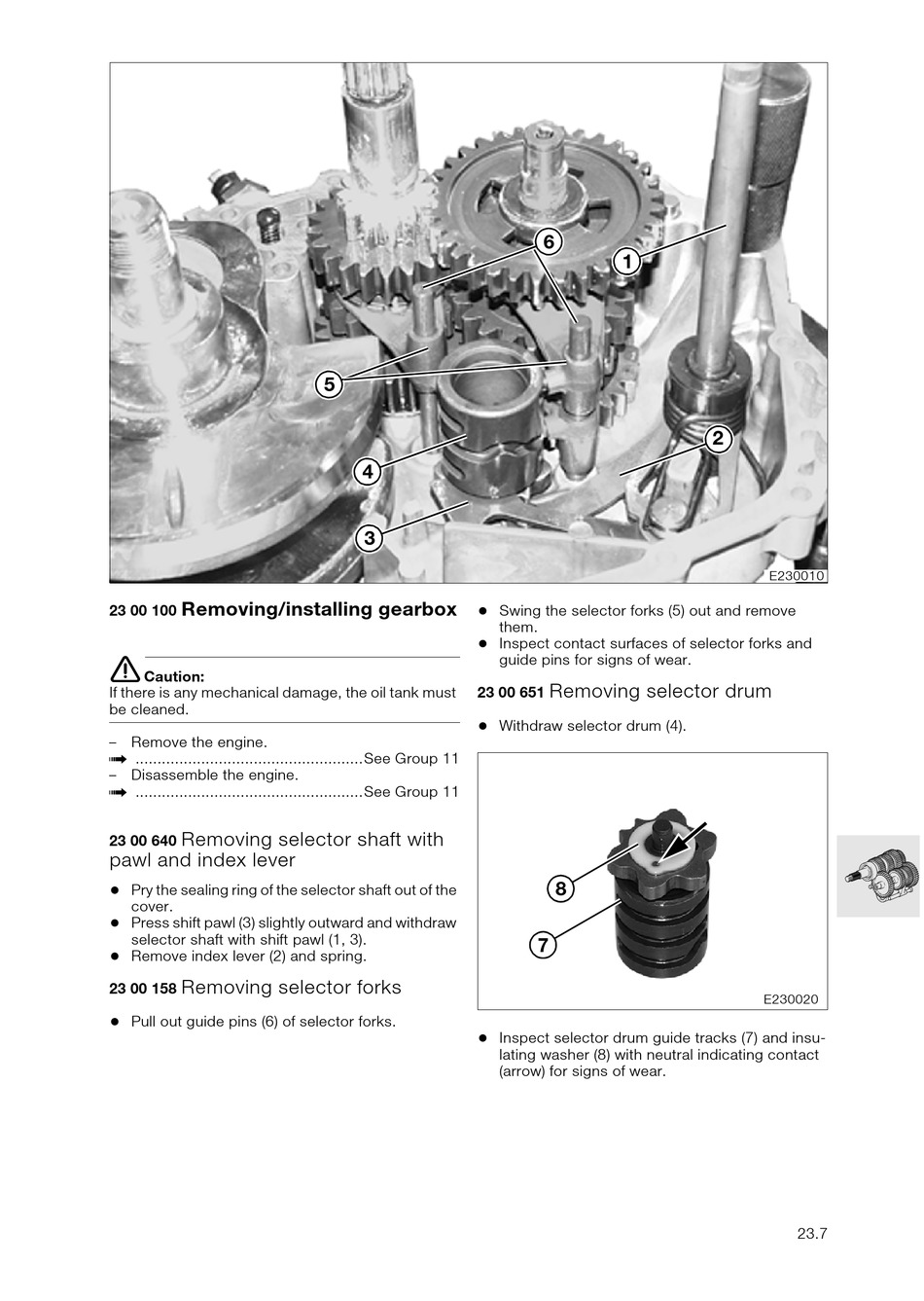

Removing/installing gearbox

23 00 100
e
Caution:
If there is any mechanical damage, the oil tank must
be cleaned.
– Remove the engine.
....................................................See Group 11
a
– Disassemble the engine.
....................................................See Group 11
a
Removing selector shaft with
23 00 640
pawl and index lever
•
Pry the sealing ring of the selector shaft out of the
cover.
•
Press shift pawl (3) slightly outward and withdraw
selector shaft with shift pawl (1, 3).
•
Remove index lever (2) and spring.

Removing selector forks

23 00 158
•
Pull out guide pins (6) of selector forks.
5
4
3
•
•
23 00 651
•
•
6
1
Swing the selector forks (5) out and remove
them.
Inspect contact surfaces of selector forks and
guide pins for signs of wear.

Removing selector drum

Withdraw selector drum (4).
8
7
Inspect selector drum guide tracks (7) and insu-
lating washer (8) with neutral indicating contact
(arrow) for signs of wear.
2
E230010
E230020
23.7
