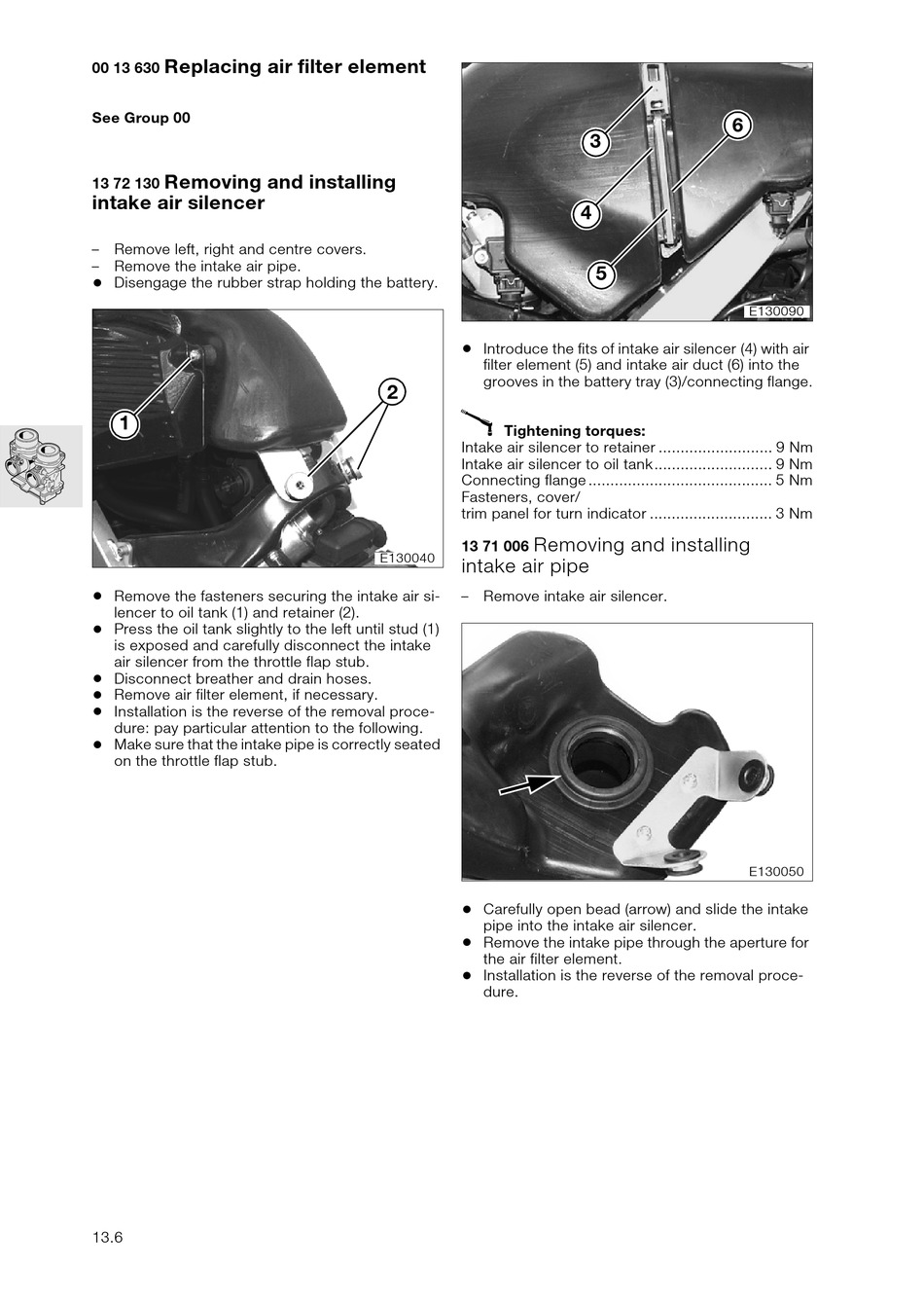

Replacing air filter element

00 13 630
See Group 00
Removing and installing
13 72 130
intake air silencer
– Remove left, right and centre covers.
– Remove the intake air pipe.
•
Disengage the rubber strap holding the battery.
1
•
Remove the fasteners securing the intake air si-
lencer to oil tank (1) and retainer (2).
•
Press the oil tank slightly to the left until stud (1)
is exposed and carefully disconnect the intake
air silencer from the throttle flap stub.
•
Disconnect breather and drain hoses.
•
Remove air filter element, if necessary.
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Make sure that the intake pipe is correctly seated
on the throttle flap stub.
13.6
•
Introduce the fits of intake air silencer (4) with air
filter element (5) and intake air duct (6) into the
grooves in the battery tray (3)/connecting flange.
2
X
Tightening torques:
Intake air silencer to retainer .......................... 9 Nm
Intake air silencer to oil tank........................... 9 Nm
Connecting flange .......................................... 5 Nm
Fasteners, cover/
trim panel for turn indicator ............................ 3 Nm
Removing and installing
13 71 006
E130040
intake air pipe
– Remove intake air silencer.
•
Carefully open bead (arrow) and slide the intake
pipe into the intake air silencer.
•
Remove the intake pipe through the aperture for
the air filter element.
•
Installation is the reverse of the removal proce-
dure.
6
3
4
5
E130090
E130050
