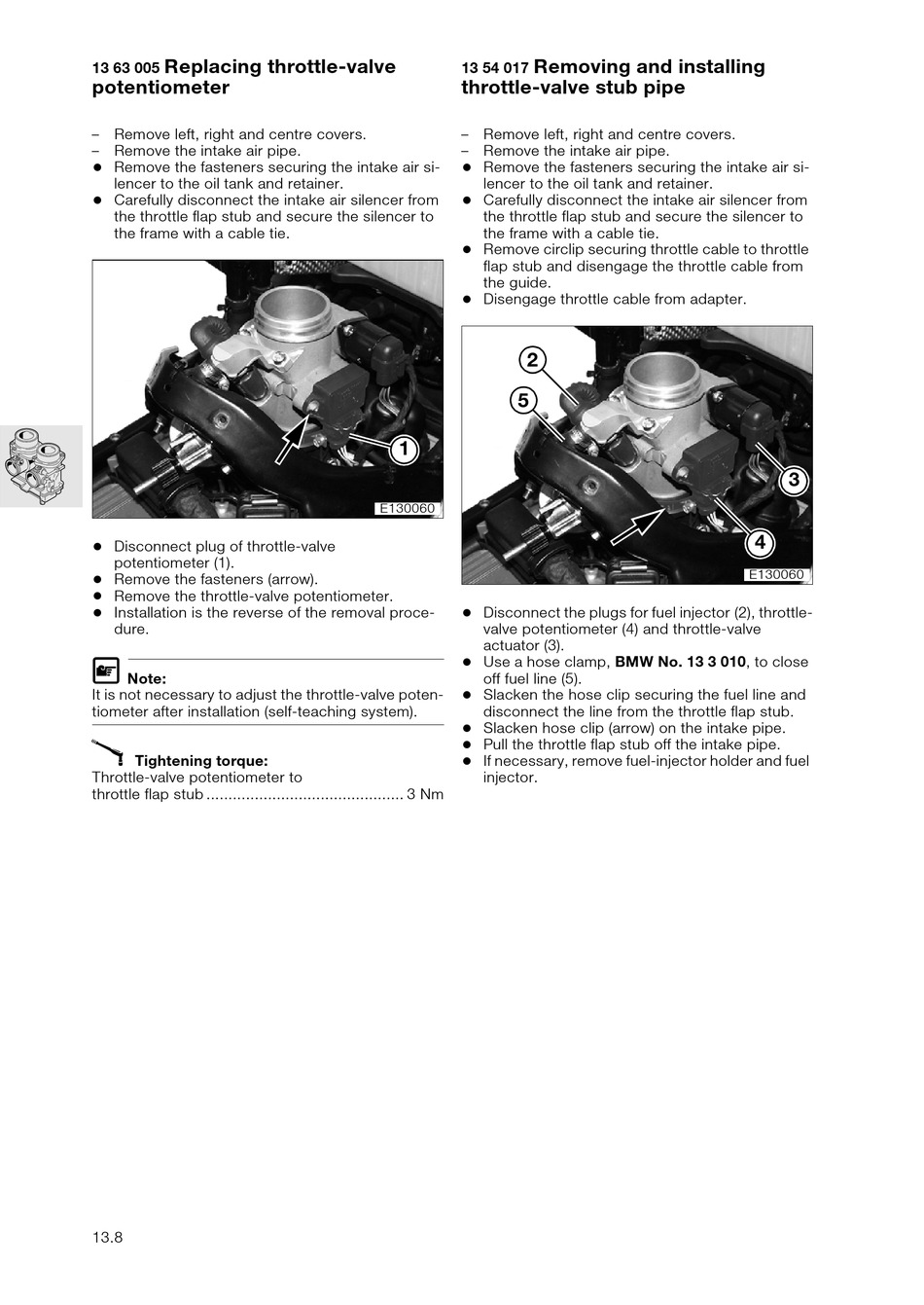

Replacing throttle-valve
13 63 005
potentiometer
Remove left, right and centre covers.
Remove the intake air pipe.
Remove the fasteners securing the intake air si-
lencer to the oil tank and retainer.
Carefully disconnect the intake air silencer from
the throttle flap stub and secure the silencer to
the frame with a cable tie.
Disconnect plug of throttle-valve
potentiometer (1).
Remove the fasteners (arrow).
Remove the throttle-valve potentiometer.
Installation is the reverse of the removal proce-
dure.
L
Note:
It is not necessary to adjust the throttle-valve poten-
tiometer after installation (self-teaching system).
X
Tightening torque:
Throttle-valve potentiometer to
throttle flap stub ............................................. 3 Nm
13.8
Removing and installing
13 54 017
throttle-valve stub pipe
Remove left, right and centre covers.
Remove the intake air pipe.
Remove the fasteners securing the intake air si-
lencer to the oil tank and retainer.
Carefully disconnect the intake air silencer from
the throttle flap stub and secure the silencer to
the frame with a cable tie.
Remove circlip securing throttle cable to throttle
flap stub and disengage the throttle cable from
the guide.
Disengage throttle cable from adapter.
2
5
1
E130060
Disconnect the plugs for fuel injector (2), throttle-
valve potentiometer (4) and throttle-valve
actuator (3).
Use a hose clamp, BMW No. 13 3 010, to close
off fuel line (5).
Slacken the hose clip securing the fuel line and
disconnect the line from the throttle flap stub.
Slacken hose clip (arrow) on the intake pipe.
Pull the throttle flap stub off the intake pipe.
If necessary, remove fuel-injector holder and fuel
injector.
3
4
E130060
