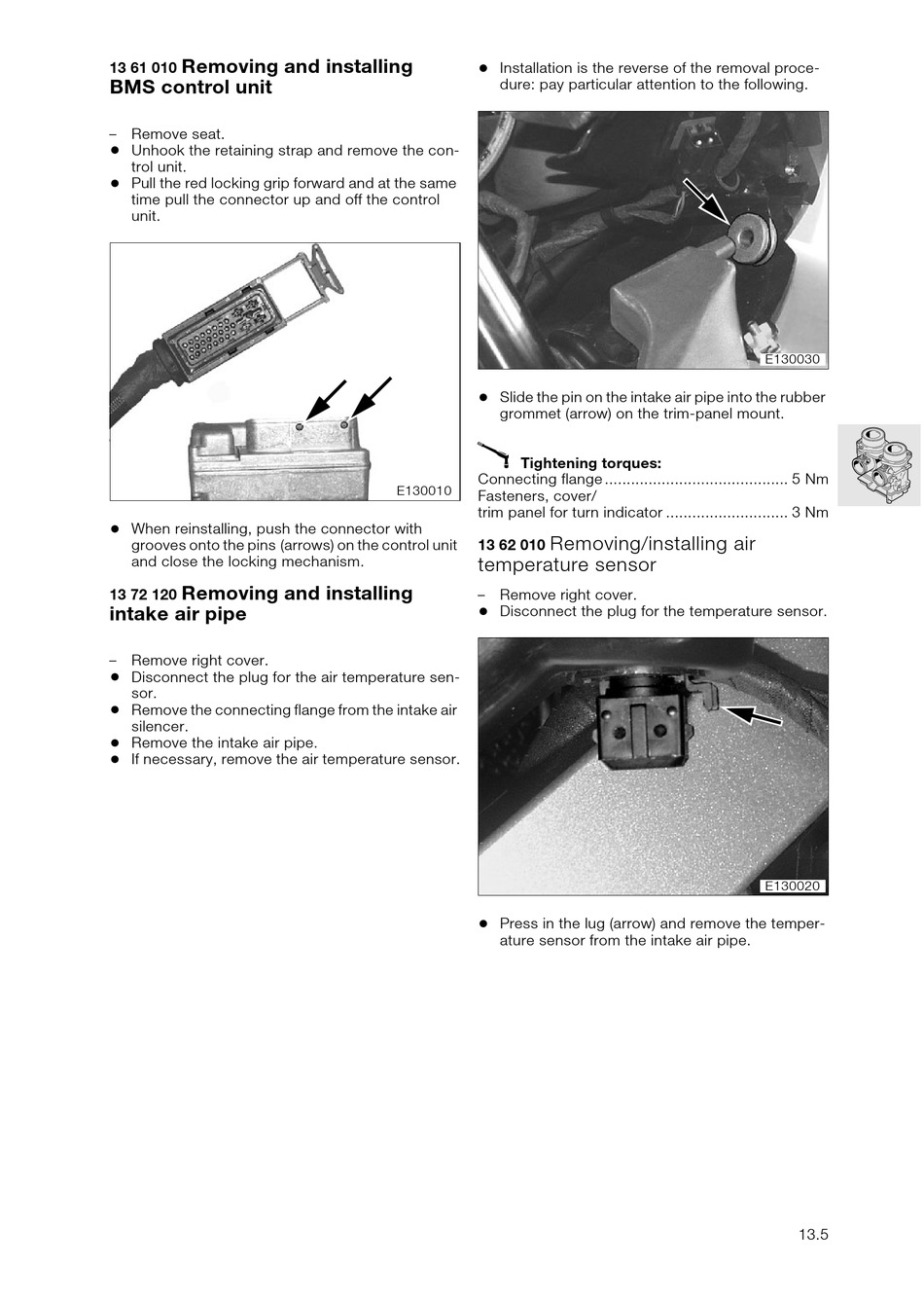

Removing and installing
13 61 010
BMS control unit
– Remove seat.
•
Unhook the retaining strap and remove the con-
trol unit.
•
Pull the red locking grip forward and at the same
time pull the connector up and off the control
unit.
•
When reinstalling, push the connector with
grooves onto the pins (arrows) on the control unit
and close the locking mechanism.
Removing and installing
13 72 120
intake air pipe
– Remove right cover.
•
Disconnect the plug for the air temperature sen-
sor.
•
Remove the connecting flange from the intake air
silencer.
•
Remove the intake air pipe.
•
If necessary, remove the air temperature sensor.
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Slide the pin on the intake air pipe into the rubber
grommet (arrow) on the trim-panel mount.
X
Tightening torques:
Connecting flange .......................................... 5 Nm
E130010
Fasteners, cover/
trim panel for turn indicator ............................ 3 Nm
Removing/installing air
13 62 010
temperature sensor
– Remove right cover.
•
Disconnect the plug for the temperature sensor.
•
Press in the lug (arrow) and remove the temper-
ature sensor from the intake air pipe.
E130030
E130020
13.5
