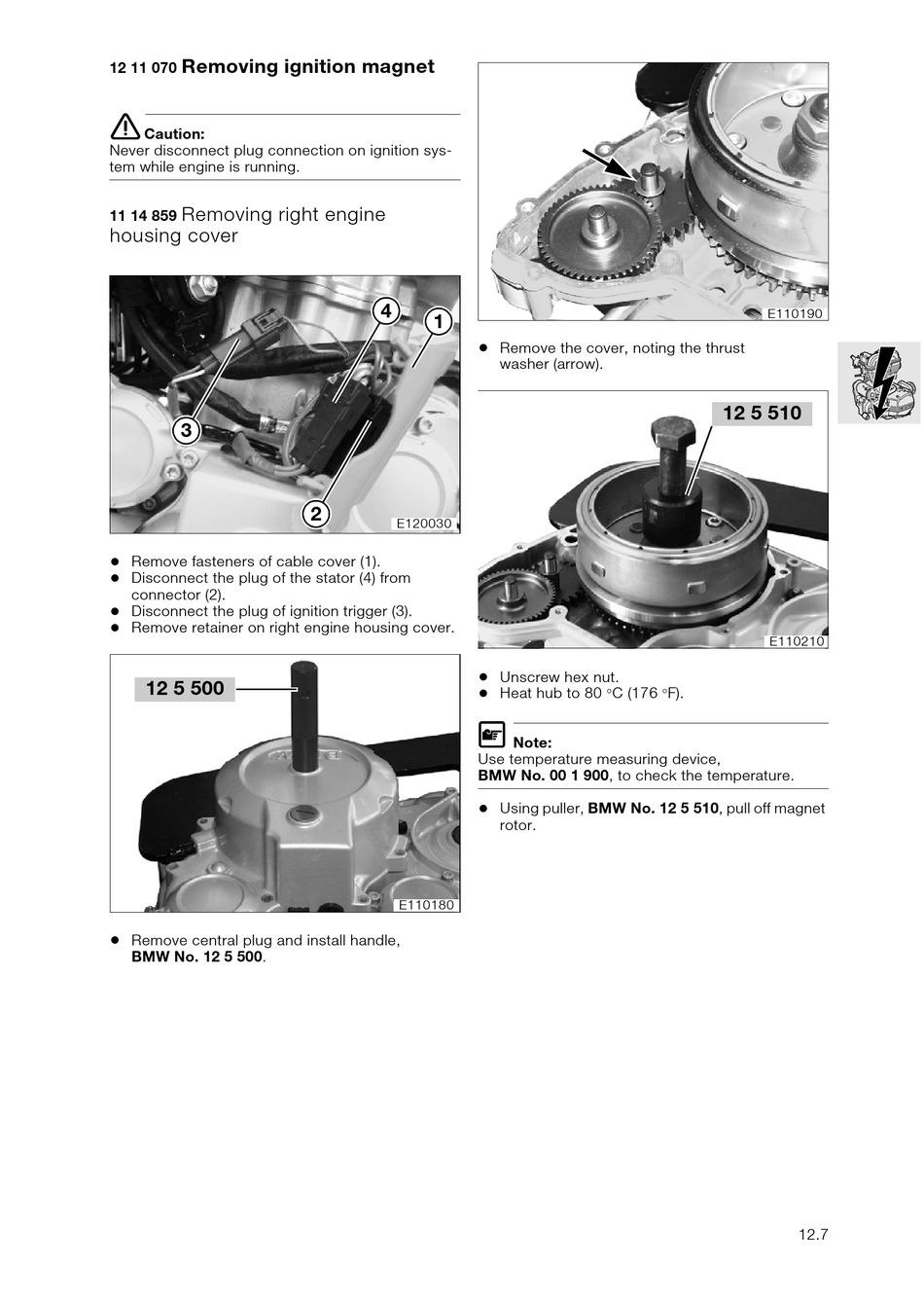

Removing ignition magnet

12 11 070
e
Caution:
Never disconnect plug connection on ignition sys-
tem while engine is running.
Removing right engine
11 14 859
housing cover
3
•
Remove fasteners of cable cover (1).
•
Disconnect the plug of the stator (4) from
connector (2).
•
Disconnect the plug of ignition trigger (3).
•
Remove retainer on right engine housing cover.
12 5 500
•
Remove central plug and install handle,
BMW No. 12 5 500.
4
1
•
2
E120030
•
•
L
Use temperature measuring device,
BMW No. 00 1 900, to check the temperature.
•
E110180
Remove the cover, noting the thrust
washer (arrow).
Unscrew hex nut.
Heat hub to 80 °C (176 °F).
Note:
Using puller, BMW No. 12 5 510, pull off magnet
rotor.
E110190
12 5 510
E110210
12.7
