L
Note:
Allow for the thickness of the compressed
gasket (approx. 0.4 mm/0.016 in).
On the magnet side, the spacing washer is always
1.0 mm (0.04 in) thick.
•
Select a suitable spacing washer to ensure that
the correct endplay is obtained.
Crankshaft
endplay ................... 0.1...0.3 mm (0.004...0.012 in)
L
Note:
Shim the balancing shaft in the same way as the
crankshaft.
Install spacing washers only on the clutch side.
•
Fit left engine housing and screw down.
L
Note:
Note the two fasteners in the oil filter housing.
•
Cut off protruding gasket.
X
Tightening torque:
Threaded fasteners of engine housing ......... 10 Nm
11.46

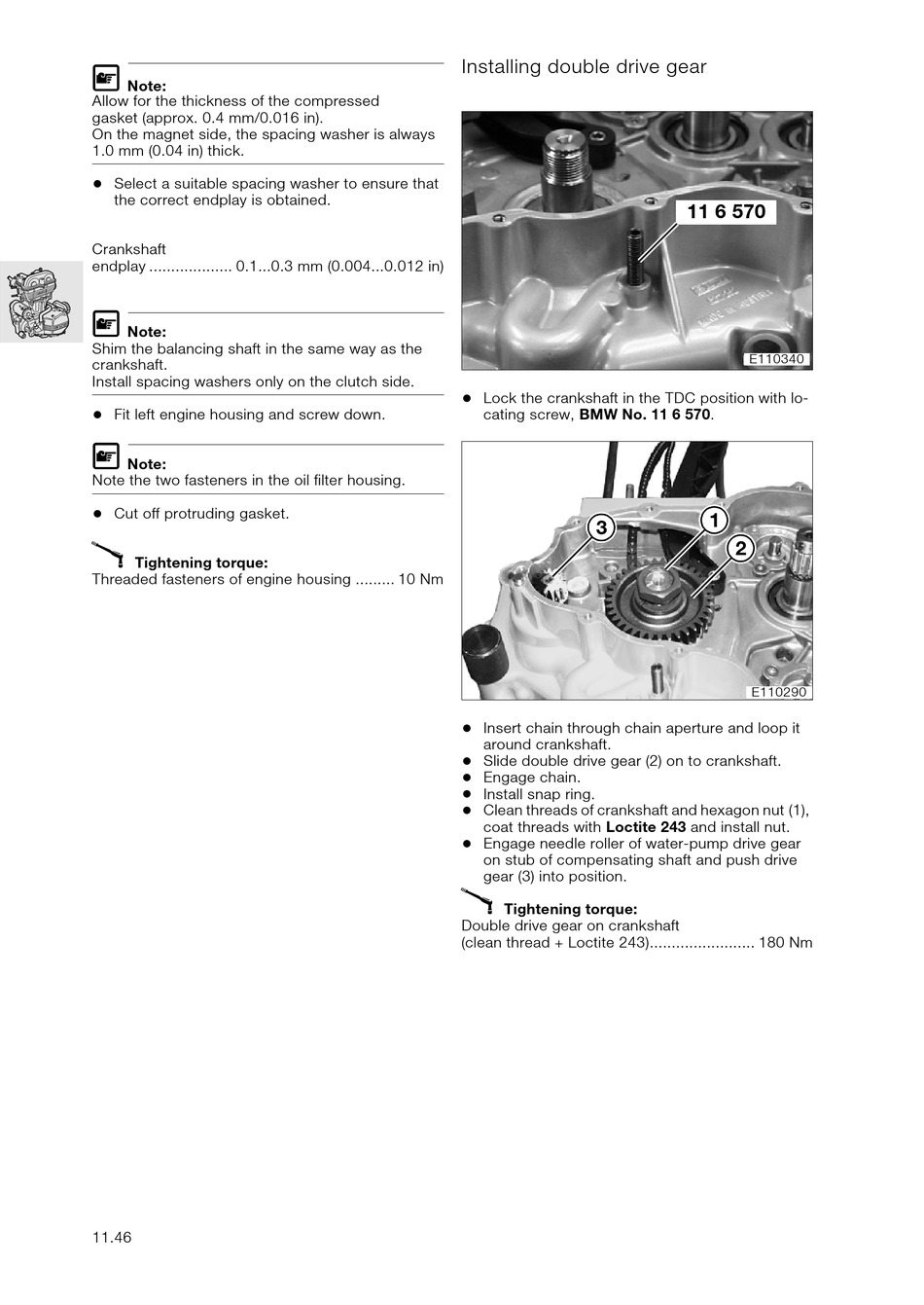

Installing double drive gear

•
Lock the crankshaft in the TDC position with lo-
cating screw, BMW No. 11 6 570.
3
•
Insert chain through chain aperture and loop it
around crankshaft.
•
Slide double drive gear (2) on to crankshaft.
•
Engage chain.
•
Install snap ring.
•
Clean threads of crankshaft and hexagon nut (1),
coat threads with Loctite 243 and install nut.
•
Engage needle roller of water-pump drive gear
on stub of compensating shaft and push drive
gear (3) into position.
X
Tightening torque:
Double drive gear on crankshaft
(clean thread + Loctite 243)........................ 180 Nm
11 6 570
E110340
1
2
E110290
