Installation

•

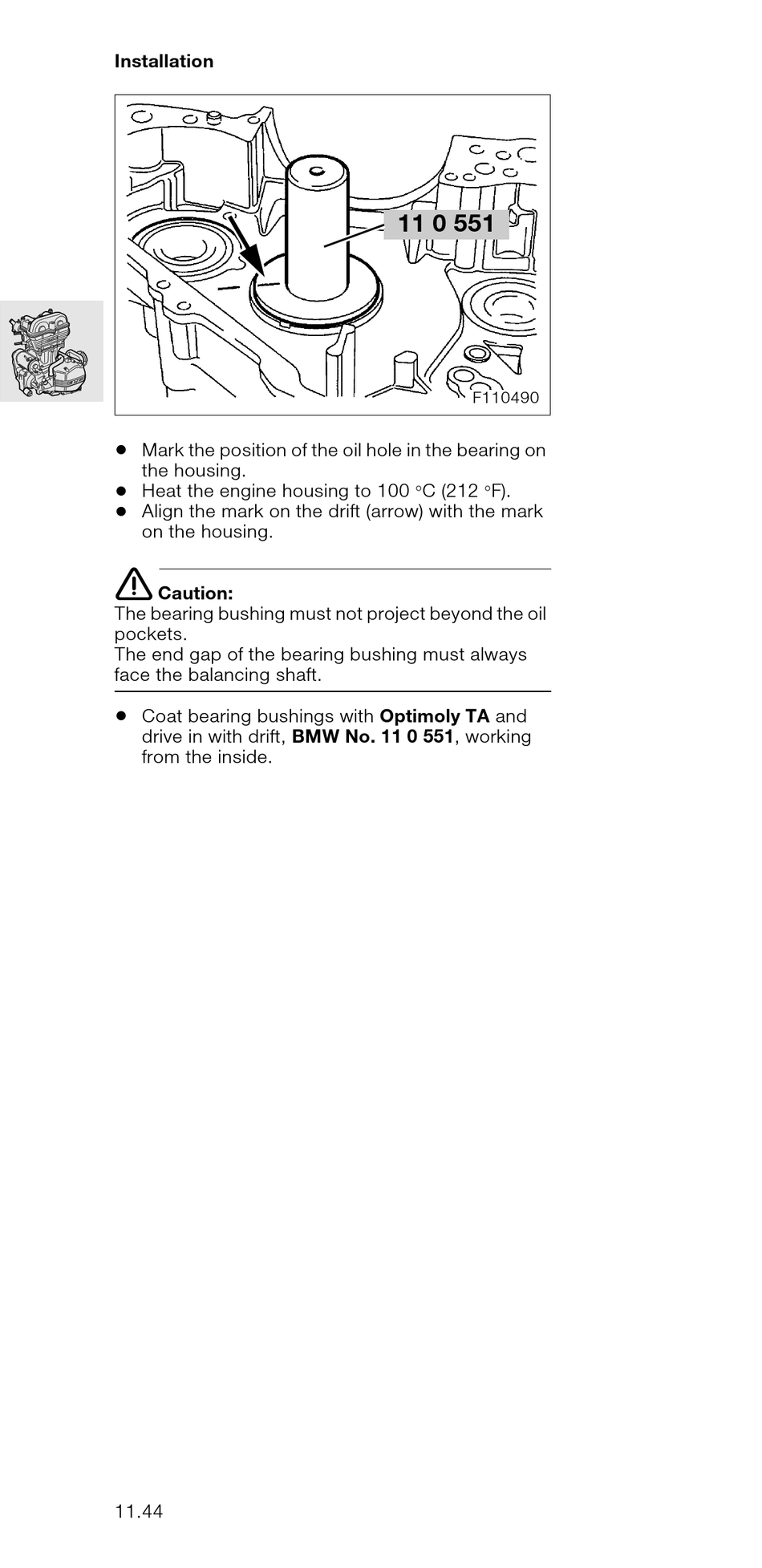

Mark the position of the oil hole in the bearing on
the housing.
•
Heat the engine housing to 100 °C (212 °F).
•
Align the mark on the drift (arrow) with the mark
on the housing.
e
Caution:
The bearing bushing must not project beyond the oil
pockets.
The end gap of the bearing bushing must always
face the balancing shaft.
•
Coat bearing bushings with Optimoly TA and
drive in with drift, BMW No. 11 0 551, working
from the inside.
11.44
11 0 551
F110490
