SINTERIT LISA X Original User Manual page 71

3. Back to the MAIN MENU screen.
4. Choose UNLOCK LID on the screen.
5. Push on the lid and pull it up using the lid handle. Remember, you only have 10 seconds to open it before the lock
activates again.
6. Turn off the printer. Replacing the reflector sealing must be carried out with the device switched off!
7. Put on the protective gloves.
8. Loosen the captive screw, if installed, or remove the
split pin from the heating module. Don't lose it! (fig.
13.100)
9. Lower the heating module (fig. 13.100).
10. The reflector sealing is located in the heating module
(fig. 13.101). Check its condition for any damage,
deformation or tearing. If needed, replace it.
11. Remove the old sealing.
12. Use a cotton cloth soaked in alcohol to remove the sealing residues (fig. 13.102).
13. Take the new reflector sealing.
14. Remove the plastic paper and place the sealing carefully around the hole (fig. 13.103). Do not stretch the seal when
gluing!
15. Press the seal carefully on each side.

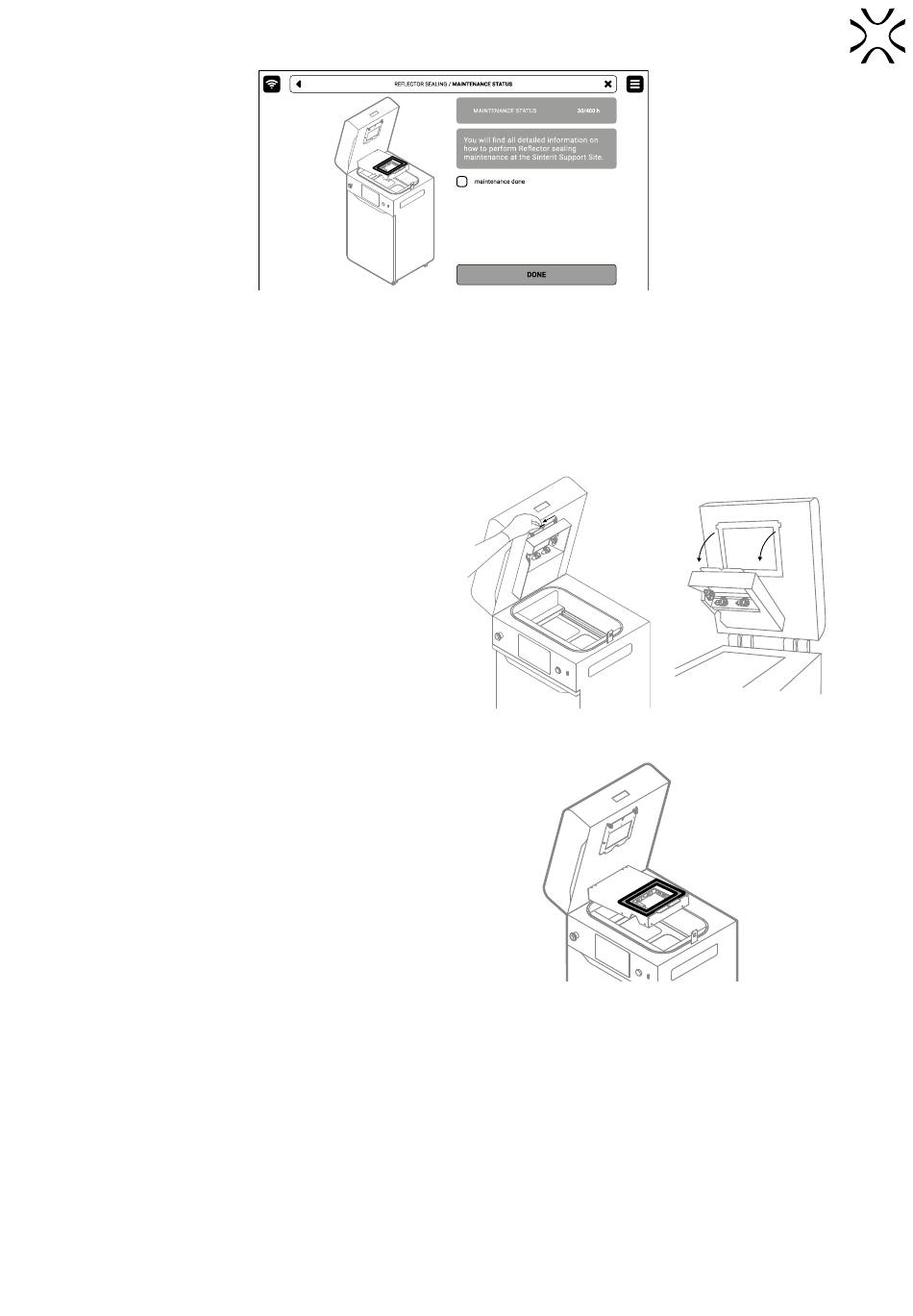

Fig. 13.99 The maintenance screen for the reflector sealing replacement.
Fig. 13.100 Lower the heating module to access
the reflector sealing.
Fig. 13.101 Location of the reflector sealing.
Sinterit Lisa X SLS 3D Printer Original User Manual | 71
