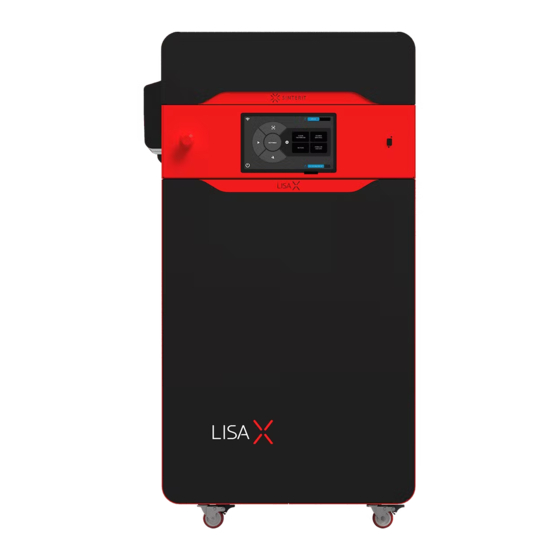

SINTERIT LISA X Manual
Sls 3d printer
Hide thumbs
Also See for LISA X:
- Original user manual (87 pages) ,
- Translation of the original user manual (62 pages) ,
- Short user manual (12 pages)
Related Manuals for SINTERIT LISA X
Summary of Contents for SINTERIT LISA X
- Page 1 LISA X SLS 3D printer Translation of the original short manual Please read the full instruction manual before putting the device into service. Version 01/2022...
-
Page 2: Table Of Contents
The short manual provides only a basic overview of the device and its general use. It will guide you throughout the entire printing process. For detailed information and to learn more about specific features of your printer, please view the full manual at www.sinterit.com/support-page/. Sinterit disclaims any liability resulting from the lack of knowledge provided in the full manual. - Page 3 Antistatic clothing and footwear required. They are absolutely necessary while working with powder. IMPORTANT! Information necessary to correctly perform the described task. IMPORTANT! Before attempting the described action, please consult the instruction manual. Sinterit LISA PRO User Manual | 3...
-
Page 4: Printer Overview
FEED BED RESET BUTTON USB PORT DOOR OVERFLOW CONTAINER Fig. 1.1 View of the front of the printer, heating module, print chamber, and overflow bin. PYROMETER WINDOW Fig. 1.2 View of the pyrometer window. Sinterit LISA PRO User Manual | 4... -
Page 5: Preparing To Print
While preparing the printer for use, it is necessary to read and acknowledge any messages on the screen. Disregarding or skipping any crucial steps of the process can negatively impact the quality of printouts or damage the printer. Sinterit LISA PRO User Manual | 5... -
Page 6: Choosing The File To Print
Once the homing process is finished, fill the Feed Bed up with the desired powder. You may use the powder funnel provided in the Dedicated Powder Tools. Afterwards press DONE. Fig. 2.4 Filling the print chamber with powder using a funnel. Sinterit LISA PRO User Manual | 6... -
Page 7: Preparing The Print Chamber
Make sure no miscellaneous items (i.e. spatulas) remain in the print chamber, then close the lid. Afterwards press DONE. 2.5 FINAL STEPS BEFORE PRINTING Press the RESET button on the printer itself, in order to engage the safety mechanism. Choose START PRINT to begin printing. Sinterit LISA PRO User Manual | 7... -
Page 8: Removing And Cleaning The Printout
Choose REMOVE PRINTOUT and wait until the contents of the Print Bed (the cake) are ejected. Join the IO BOX elements together. Carry the IO BOX and its contents onto the foldable tray from Dedicated Powder Tools or on the PHS worktop then press DONE on the screen. Sinterit LISA PRO User Manual | 8... -
Page 9: Cleaning The Printer
The vacuum cleaner used to collect the powder must be suitable for handling combustible dust. Sinterit recommends the ATEX Vacuum Cleaner available in the offer. Press the arrow buttons to the left and right to move the recoater and collect the remaining powder underneath. -
Page 10: Technical Support
In case of any questions or issues, please don’t hesitate to contact the after-sales support: • e-mail: support@sinterit.com • phone: +48 570 702 886 The full list of resellers and technical support in select countries can be found at www.sinterit.com/contact. Sinterit LISA PRO User Manual | 10... - Page 11 SINTERIT Sp. z o.o. ul. Nad Drwina 10 bud. B3, 30-741 Krakow, Poland www.sinterit.com Contact: +48 570 967 854...
