4. Choose UNLOCK LID on the screen.
5. Push on the lid and pull it up using the lid handle. Remember, you only have 10 seconds to open it before the lock
activates again.
6. Loosen the captive screw, if installed, or take out the split pin securing the heating module. Don't lose it!
7. Gently lower the heating module.
8. Unscrew two quick release nuts. Make sure you hold the laser protective glass, otherwise it may fall.
9. Take the laser protective glass out.
10. Delicately wipe the glass on both sides with a cotton cloth soaked in ethanol-based cleaning solution. You may also
use cleaning wipes provided in Dedicated Powder Tools.
11. Wipe the glass again on both sides with a dry cotton cloth.
12. Slide the metal tabs of the laser protective glass into the mounting brackets below the laser module.
13. Lock the laser protective glass in place by mounting and tightening the two quick release nuts.
14. Lift the heating module.
15. Secure the heating module with the captive screw/split pin.
16. Good job. The maintenance timer will reset to zero.
1
4
6
2
LASER PROTECTIVE GLASS
%
7

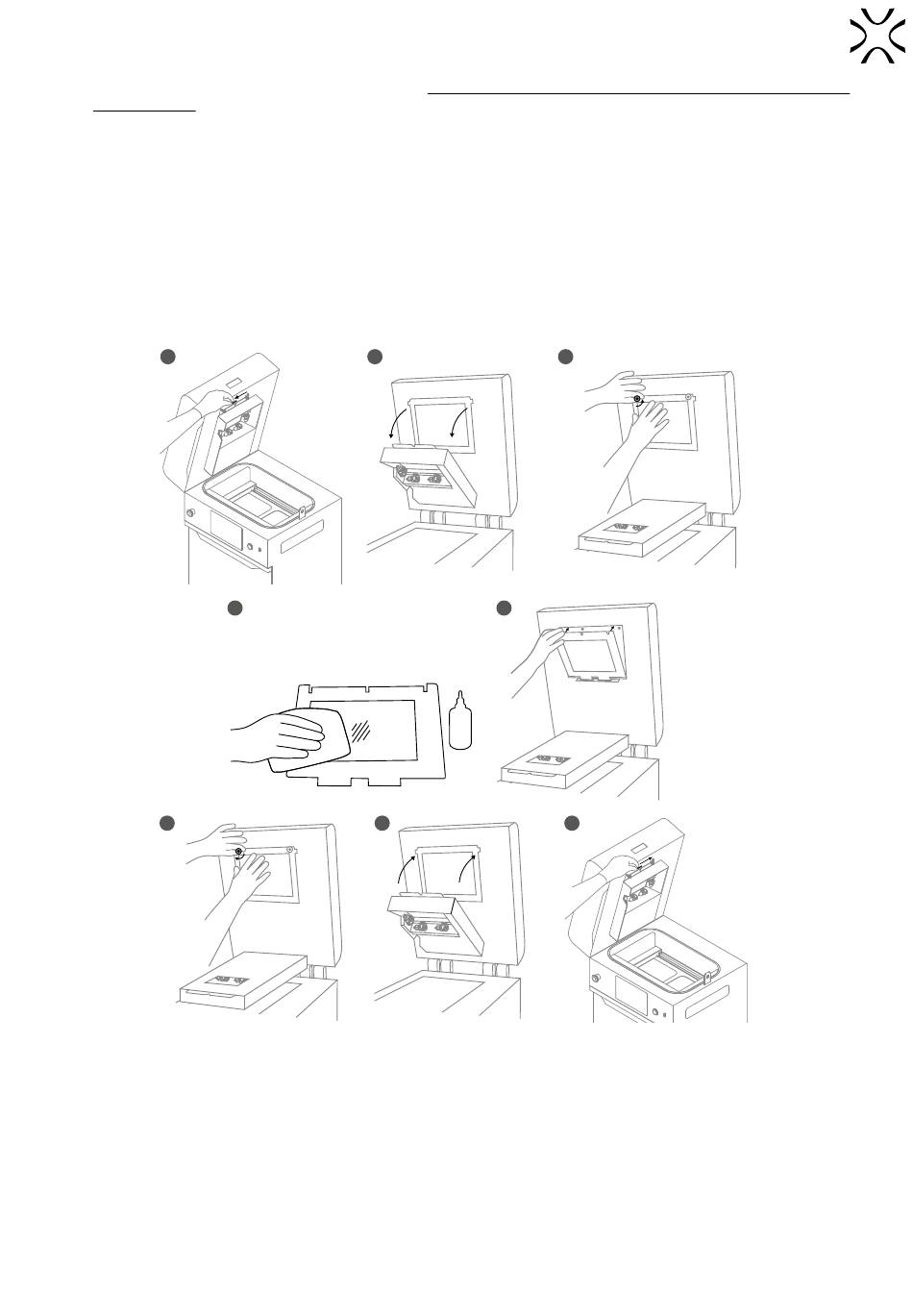

Fig. 13.8 Cleaning the laser protective glass.
3
5
8
