5.2 Mounting the Laser Protective Glass

ATTENTION!
Beware of sharp edges. Wear the protective gloves, in order to prevent cutting yourself on the sharp
edge of the laser module.
1. Loosen the captive screw, if installed, or take out the split pin securing the heating module. Don't lose it!
2. Lower the heating module.
3. Take the laser protective glass out of the box. Then put the box in the flight case for safekeeping.
4. Delicately wipe the glass with a cotton cloth soaked in ethanol-based cleaning solution or 99.9% purity isopropanol.
You may also use cleaning wipes provided in Dedicated Powder Tools.
IMPORTANT!
Do not use other isopropyl alcohol to clean the laser protective glass, other than 99.9% purity.
5. Wipe the glass again on both sides with a dry cotton cloth.
6. Slide the metal tabs of the laser protective glass into the mounting brackets below the laser module.
7. Lock the laser protective glass in place by mounting and tightening the two quick release nuts.
8. Lift the heating module.
9. Secure the heating module with the captive screw/split pin.
1
5
2
6

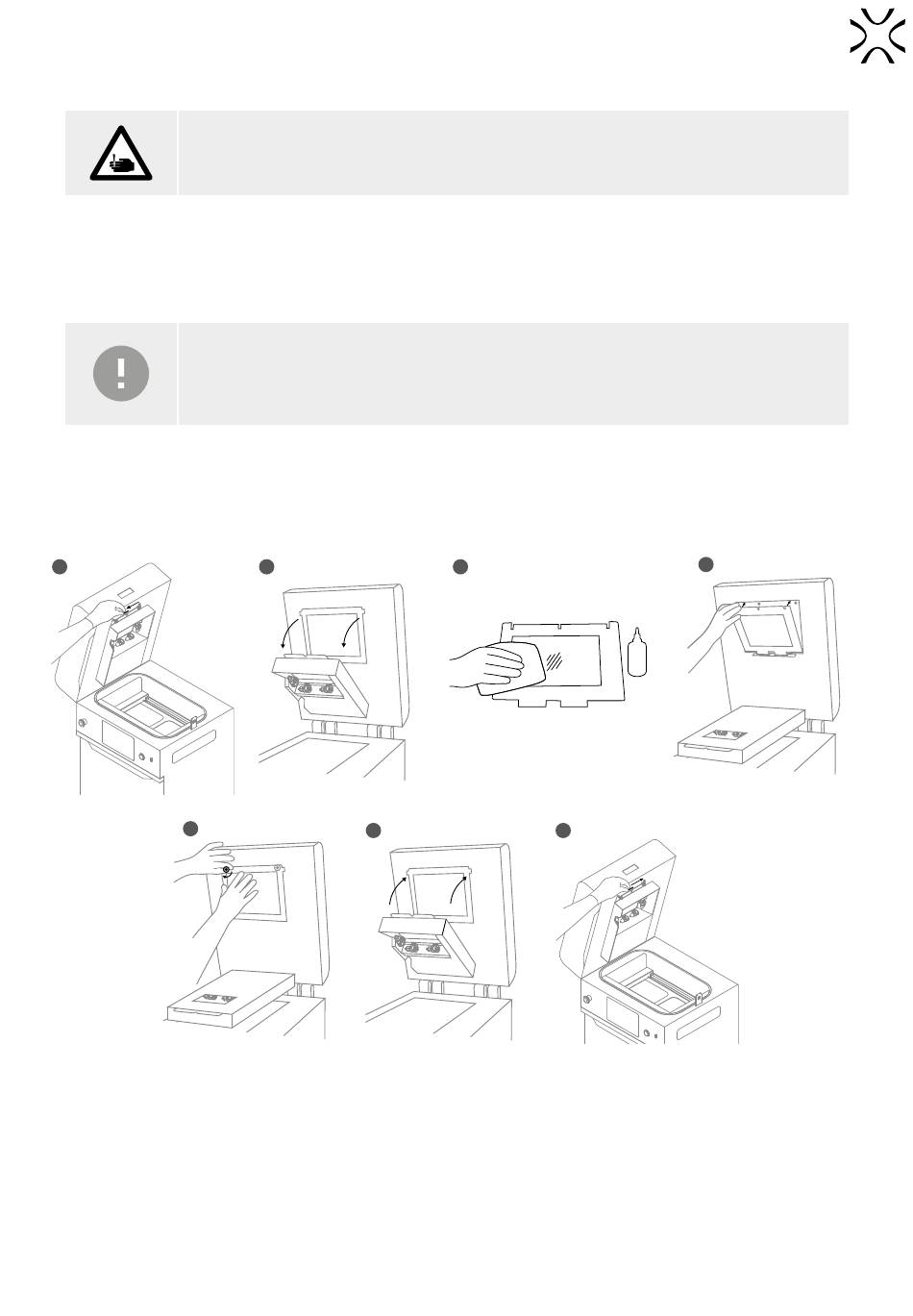

Fig. 5.5 Mounting the laser protective glass.
3
LASER PROTECTIVE GLASS
7
Sinterit Lisa X SLS 3D Printer Original User Manual | 23
