SINTERIT LISA X Original User Manual page 54

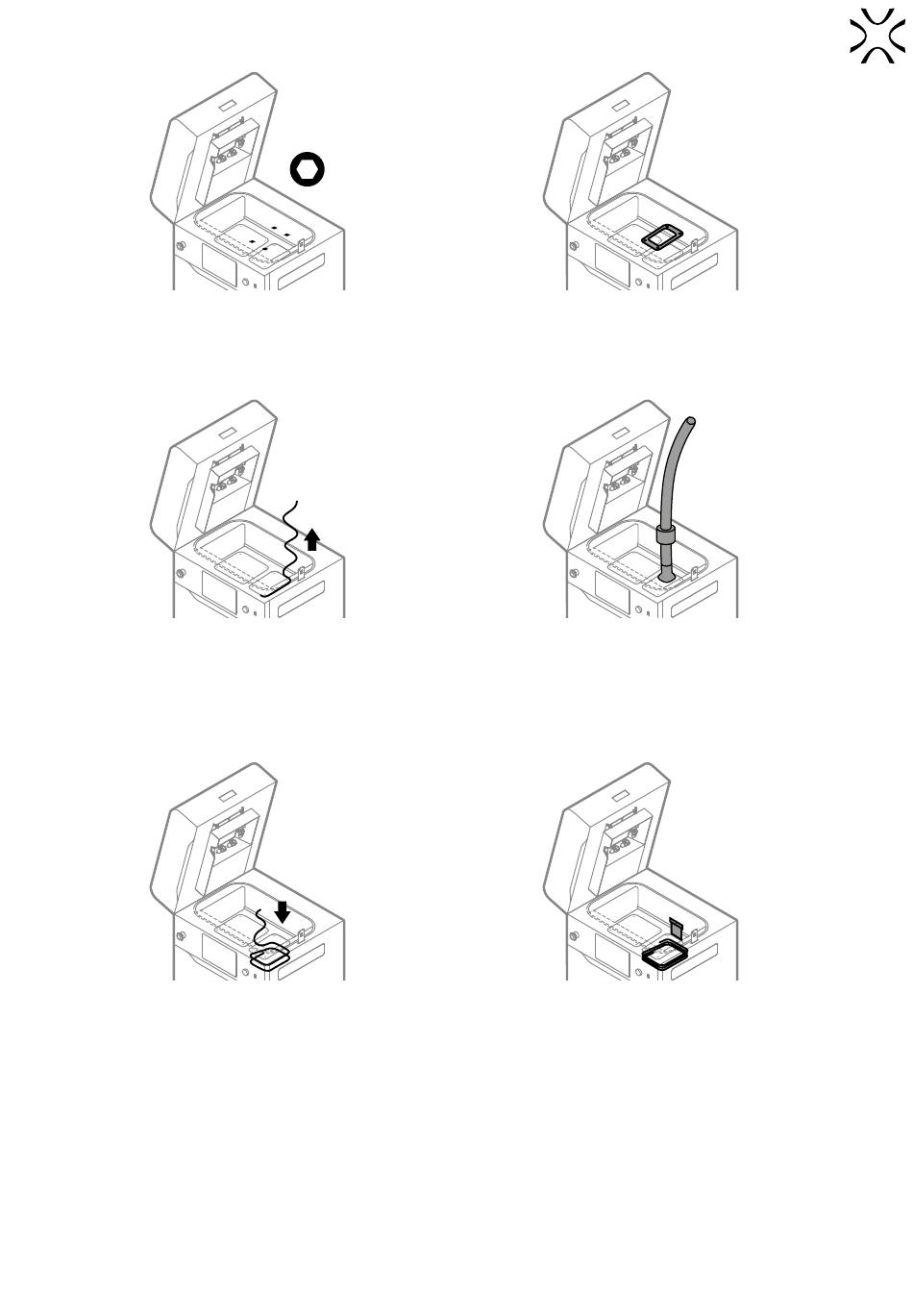

Fig. 13.30 Unscrew the Print Bed screws.
17. Remove the used fibreglass rope around the Print Bed. You can use the metal spatula to help pull out the sealing (fig.
13.32).
18. Vacuum powder from the Print Bed and the gap around. Use appropriate nozzles (fig. 13.33).
Fig. 13.32 Remove the used fibreglass rope from the Print Bed.
19. Put on a new fibreglass rope by wrapping it four times (for 6 [mm] rope) or two times (for 10 [mm] rope) around the
Print Bed. Remember not to stretch the fibreglass rope (fig. 13.34).
20. Use a clean, plastic spatula while pressing down the fibreglass rope (fig. 13.35).
21. Finish sealing at the starting point. Using scissors, cut off excess fibreglass rope.
Fig. 13.34 Put on new fibreglass sealing.
22. Put on the Print Bed cover (fig. 13.36).
23. Using a 2.5 [mm] allen key, tighten the four screws securing the Print Bed cover (fig. 13.37).
Fig. 13.31 Remove the Print Bed cover.
Fig. 13.33 Vacuum powder from the Print Bed.
Fig. 13.35 Press on the fibreglass rope with a spatula.
Sinterit Lisa X SLS 3D Printer Original User Manual | 54
