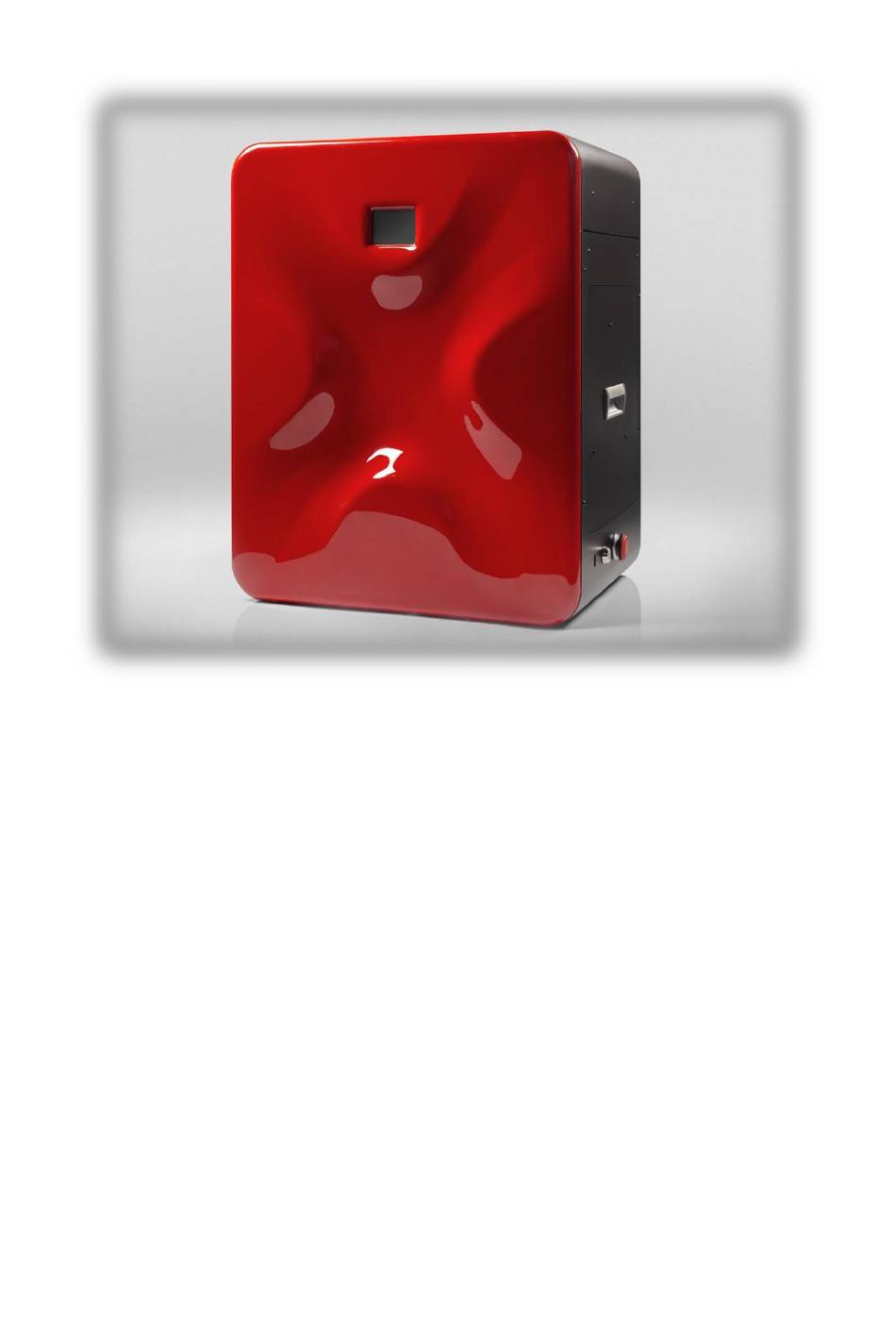

SINTERIT LISA
USER MANUAL
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LISA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SINTERIT LISA

Summary of Contents for SINTERIT LISA

  • Page 1 SINTERIT LISA USER MANUAL Version 1.2...

  • Page 3: Table Of Contents

    6. TERMS OF WARRANTY ....................6 7. EXCLUSION OF WARRANTIES ..................7 9. GLOSSARY ........................11 10. DESCRIPTION OF THE CONSTRUCTION OF A PRINTER SINTERIT LISA ....12 11. SPECIFICATIONS ....................... 15 12. TECHNICAL SUPPORT ....................17 13. IMPORTANT SAFEGUARDS AND WARNINGS ............17 13.1.

  • Page 4: Sinterit Lisa Package Contents

    1. SINTERIT LISA PACKAGE CONTENTS  3D printer SINTERIT LISA;  Dedicated software SINTERIT STUDIO 2016 on external media such as Pendrive;  Sinterit Lisa User Manual and Sinterit Studio User Manual;  Protective packaging for accessories;  4 liters of black polyamide powder (PA12 BLACK) in two containers 2l each: o container No.

  • Page 5: Information About Legal Regulations

    The information contained in this document is intended for the use only with the product made by Sinterit Sp. z o.o. and called Sinterit Lisa. The company Sinterit Sp. z o.o. is not responsible for any use of this information in relation to other products.

  • Page 6: Trademarks

    SINTERIT STUDIO simultaneously on up to three PCs, which are on the use of the Buyer, designed for use with the supplied SINTERIT LISA printer. Sinterit Sp. z o.o. includes a 24 month period update SINTERIT STUDIO with the selling price of the printer 6.

  • Page 7: Exclusion Of Warranties

    In the event of an error for reasons of misuse of the Printer, Sinterit Sp. z.o.o. surcharges the Buyer with the costs of repairs, parts, and transport of equipment. e. Within 14 days of filing the complaint Seller shall notify the Buyer about the way it has been handled.
  • Page 8 malfunction caused by conflict or incompatibility between the installed applications and the impact of computer viruses.
  • Page 9 8. MARKING TEXT CONVENTIONS USED IN DOCUMENT Listed below are descriptions of the symbols used on the device. They constitute a warning or convey the information to protect the user, other individuals and surrounding objects, and ensure correct and safe use of the device.
  • Page 10 WARNING! Warns that the initiation, omission of a specific procedure or inattention can cause physical injury or death to the user. ATTENTION! Announces that initiation or omission of a specific procedure can cause physical damage to the equipment. WARNING! The warning symbol indicates an inevitably dangerous situation which can result in death or serious injury, if not avoided.

  • Page 11: Glossary

    The device is designed for professional and quick execution of spatial prototypes or creating three-dimensional objects' models. • SINTERIT STUDIO – control and support software SINTERIT LISA printer's work. • PA12 (polyamide powder, nylon powder, PA powder, PA12 powder, powder) - polyamide powder with a granulation of 20-100 micrometers, black, tailored to the capabilities of the SINTERIT LISA printer.

  • Page 12: Description Of The Construction Of A Printer Sinterit Lisa

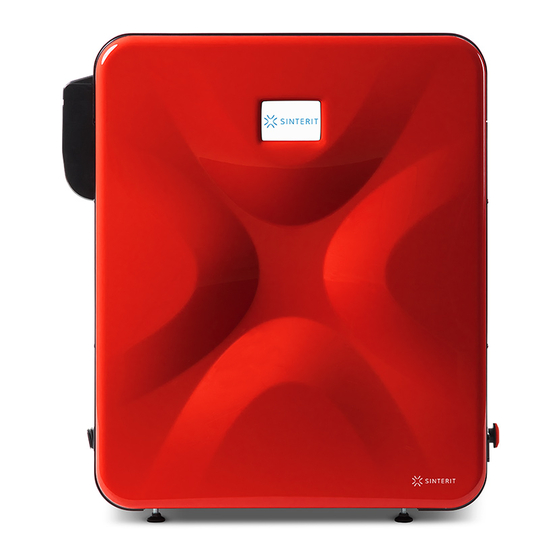

    10. DESCRIPTION OF THE CONSTRUCTION OF A PRINTER SINTERIT LISA Photo 1. View of the printer from the front and the rear. Photo 2. The view on the right side of the printer.
  • Page 13 Photo 3. View of the printer on the left side and from the top. Photo 4. Inside View the beds in the printer. Photo 5. The inner side of the printer lid...
  • Page 14 Photo 6. View of the inside of the printer (the location of of pyrometers and camera)

  • Page 15: Specifications

    11. SPECIFICATIONS...
  • Page 16 1. General technical data Size of the device (mm/in) 650x550x400 // 25,60x21,65x15,75 Size of the package (mm/in) 800x600x900 // 31,50x23,62x35,43 Unit weight (kg/lb) 35 kg // 77,16 lb Package weight (kg/lb) Up to 60kg // up to 132,3 lb 2. Parameters Printing technology Laser sintering (LS) The size of the working chamber (mm/in)

  • Page 17: Technical Support

    The list of distributors and technical support from particular countries is available on the www.sinterit.com. 13. IMPORTANT SAFEGUARDS AND WARNINGS To ensure safe use of the SINTERIT LISA product, please read and follow the instructions below. Keep this manual for future use. Also, be sure to follow all warnings and instructions marked on the product.

  • Page 18: Power Supply

    ATTENTION! Do not place or store the product: outdoors; in areas with high dust; in places subject to shocks, vibrations, high temperature and/or humidity, and extreme changes in temperature and humidity; near water, or heat sources; near inflammable and volatile substances, concentrated acids or corrosive vapors;...
  • Page 19 Power cables should be placed in such a place that they are not rubbed, cut, pulled or twisted. ATTENTION! Do not place objects on the power wires. Do not place power cords in path where people will have to walk or run. Pay special attention to the fact that the power cables are not bent at the points of connection of the printer.

  • Page 20: Information On Supplies

    14. INFORMATION ON SUPPLIES When working with the polyamide powder or other designated printer powder for the SINTERIT LISA printer always wear protective kit attached to the above-mentioned device (glasses, gloves, dust mask). WARNING! When working with a polyamide powder, avoid inhalation or swallowing and contact with skin and eyes.

  • Page 21: Working With Powder

    1. Always wear protective clothing (goggles, mask, gloves) when working with powder PA12 and others used in the printer Sinterit Lisa. 2. When you first use your printer Sinterit Lisa pour the powder only from the container no. 2 (PRINT READY POWDER).
  • Page 22 Photo 7. Position key: turned off and on 4. Check if the red safety button is released. If not, then release it by turning it clockwise a quarter of a turn (black ring). 5. To open the printer unlock the magnetic lock on the lid (PRINT // UNLOCK LID, photo 8).
  • Page 23 Photo 9. Correct holding unit heaters while loosening d. Remove the glass protecting the laser of the box (from the package with accessories). Wipe its surface gently with a paper towel / microfiber (see if there are no fibers left). e.

  • Page 24: Printer's Connection With The Wi-Fi Network

    4. Next to the SELECT WI-FI you see the combined network. Photo 12. Connect to Wi-Fi 19A. LOADING FILE BY THE USB AND START PRINTING 1. Prepared in SINTERIT STUDIO 2016 file save on the media from USB (flash drive recommended). 2. Plug in the USB media enabled printer.

  • Page 25: Preparation Of The Printer To Work (First Use)

    20. PREPARATION OF THE PRINTER TO WORK (FIRST USE) 1. Wear protective clothing supplied with the kit (mask, goggles, gloves). 2. Turn on the power button (from "0" to "1") on the back. Put the key in the key switch and turn a quarter of a turn to the right clockwise.
  • Page 26 5. Check the operational readiness of the SOURCE BED AND PRINT BED (position "0" for each of them), cable tension, the purity of the RECOATER's guide. IMPORTANT! The "0" position for SOURCE is the maximum drop down. The "0" position for the PRINT BED is the maximum protrusion to the top. Photo 18.

  • Page 27: Information And Activities While Printing

    There is the status of the print on the main screen (left side of the screen), warming and cooling (tab TEMP, see photo 20), the remaining time of laser work. By clicking on the SINTERIT logo on the screen (upper left corner, see photo 20) we go to review mode of the camera.

  • Page 28: End Of Print / Print Finished

    4. Gently press down the lid to the printer, and then lift it up, pulling it up IMPORTANT! Pay attention to the information after the slicing flie in SINTERIT STUDIO. It informs about the amount of FRESH POWDER, that is to be added to the PRINT READY POWDER from inside of the printer.
  • Page 29 ATTENTION! Manual moving of the RECOATER is forbidden. It is only permitted with the electronic control on the monitor screen. Photo 21. The correct state of powder after printing (visible cracks on the surface of both BED) 6. Remove the powder from the OVERFLOW BIN. After sieving through the supplied strainer, the powder can be reused.
  • Page 30 9. Using the spatula for getting out the prints move carefully to the plate for carrying the prints the entire contents of PRINT BED and next move it to the mold supplied with the kit. Leave the print mass to cool for at least an hour (see photo 22). Photo 22.
  • Page 31 STOP! Do not use any lubricants or oils to the guide of the RECOATER. This may cause damage to the machine. For cleaning it is recommended to use a brush with soft bristles (supplied with the printer) or compressed air (when there is no powder inside the printer). 13.

  • Page 32: Cleansing Of The Prints

    Add the amount of FRESH POWDER from the container No.1 as indicated by the SINTERIT STUDIO software and mix together two types of powder. If you do not plan to start the printing again, put the powder into the container No. 2 on the PRINT READY...

  • Page 33: Maintenance And Service Of The Sinterit Printer Lisa

    After the cleansing, the print has its full durability and can be immediately used. * The sand spreader is not included in the kit. Contact the Sinterit company or the sand spreaders dealer for the selection of abrasive material, which can be used for cleansing the PA12.
  • Page 34 10A. REPLACEMENT OF THE GLASS PROTECTING LASER Holding the heaters' unit, unscrew the two wing bolts that secure the module with the lid of the printer (see photo 28. pt. 1). Gently lower the heaters' unit on the lower part of the printer (see photo 28. pt. 2). Remove the glass protective laser out of the box.
